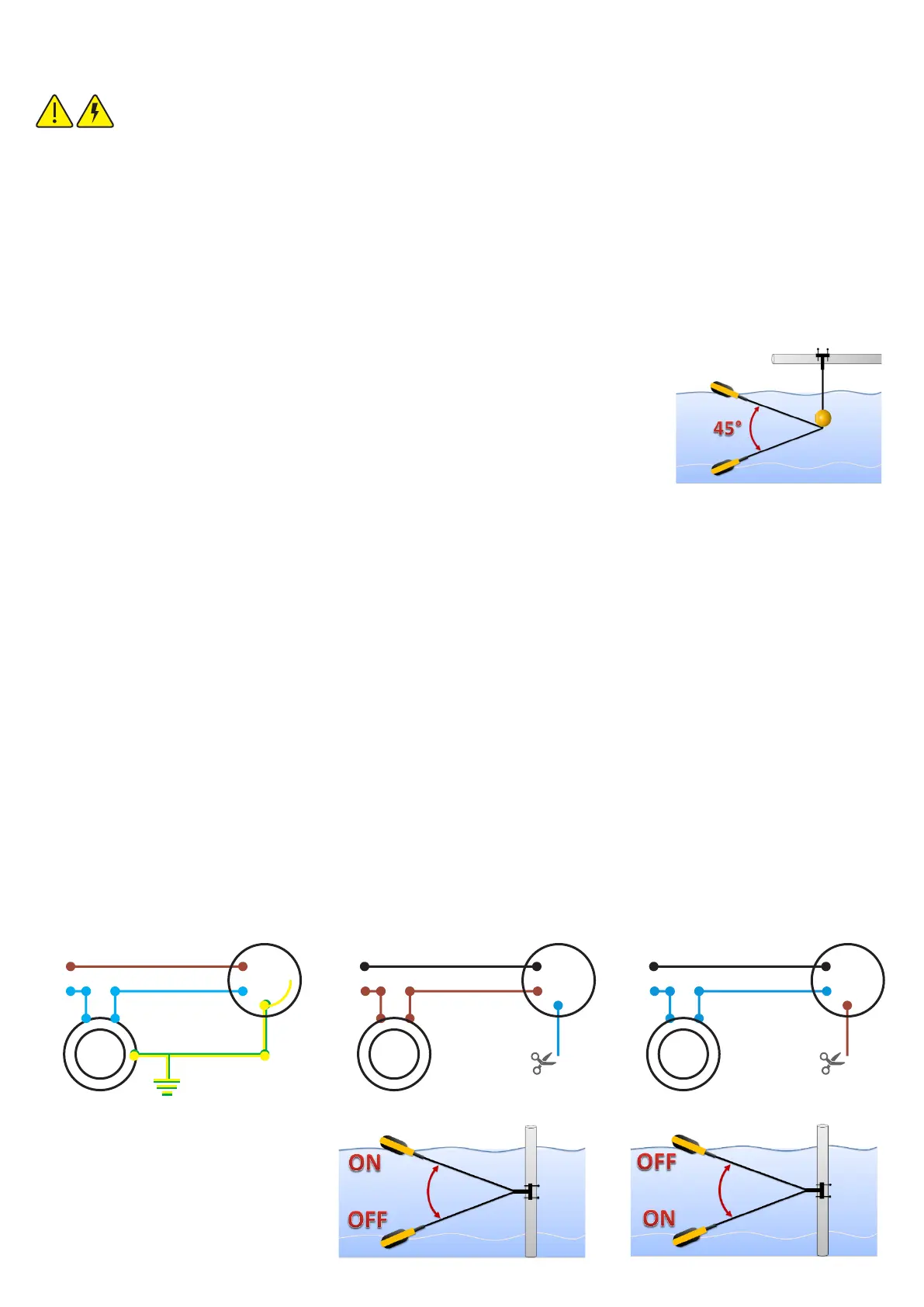

Tecnoplastic OLYMPIC - Technical Features; Terminal Connections

ENGLISH
Acvaon angle: 45°
NOTES: DO NOT TAMPER WITH THE FLOAT SWITCH. THE NON RESPECT OF THE
FOLLOWING POINTS WILL AUTOMATICALY CAUSE THE CANCELLATION OF THE
WARANTY OF THE PRODUCT
Ÿ Before any operaon on the float remember to disconnect the power supply from the main
power.
Ÿ Check that the maximum motor power does not exceed the float's electrical values.
Ÿ In case of cable damage by the final user or installer, the float must be replaced.
Ÿ Do not make any joint on the cable of the float switch, as immersion of such joints could cause
short circuits or electrical shocks.
TECHNICAL FEATURES:
Ÿ Protecon Grade: IP 68
Ÿ Features of automac acon: 1B (micro-disconnecons in operaon)
Ÿ Polluon Degree: 2
TERMINAL CONNECTIONS:
The upstream circuit must protect the electric wires from the overcurrent. WARNING: lack of
protecon shall null and void the warrany in the event the float breaks.
Ÿ Mod.01: single funcon - only emptying or only filling (Fig.1). The grounding wire is always
yellow and green.
Ÿ Mod.02 – Mod.03 double funcon (the fier can choose the emptying Fig.2 or filling Fig.3 when
installing):
Ÿ Emptying: (Fig.2) when black and brown wires are used, the circuit opens when float is down and
closes when the float is up. Note: the blue/grey wire must be insulated.
Ÿ Filling: (Fig.3) when black and blue/grey wires are used, the circuit closes when float is down and
opens when the float is up. Note: the brown wire must be insulated.
Fig.1 Fig.2 emptying Fig.3 filling
M
Yellow/Green
Blue/Grey
Brown
M M
Blue/Grey Brown
Black Black
Brown Blue/Grey
N
L
N N
L L
