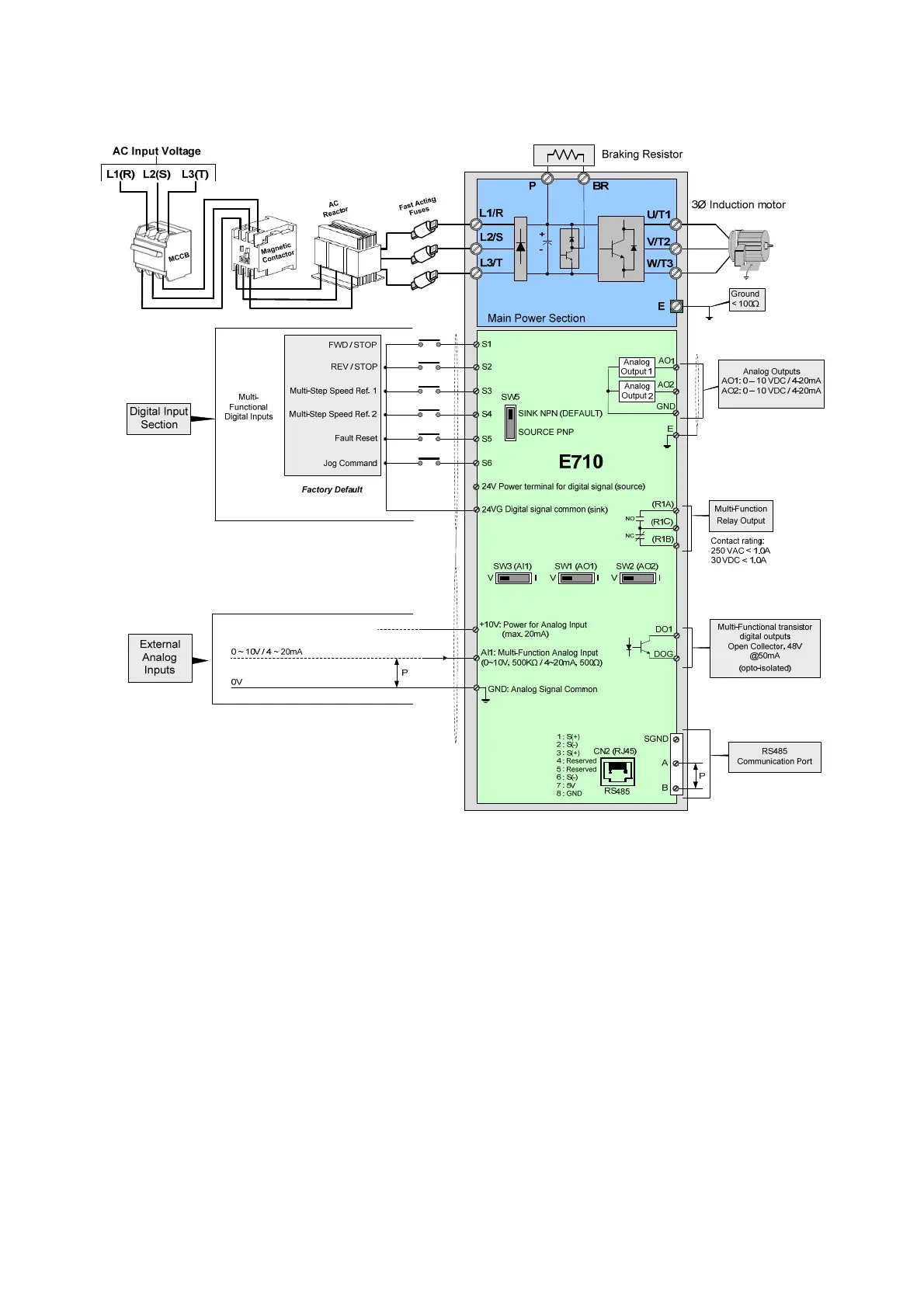

2.2.2 General Wiring Diagram (for simple E type)
Notes:
*1: Use SW5 to select between Sink (NPN, with 24VG common) or Source (PNP, with +24V common) for multi-function
digital input terminals S1~S6.
*2: Use SW3 to switch between voltage (0~10V) and current (4~20mA) input for Multi-function analog input 1 (AI1).
Besides please also check parameter 04-00 for proper setting.
*3:
When using the open collector for multi-function digital input, it doesn’t need resistance because of built-in pull-up resistance.
*4: AO1/AO2 default setting is 0~+10V. Use SW1/SW2 to switch between voltage (0~10V) and current (4~20mA) output.
Besides please also check parameter 04-19 for proper setting.
