TECO JSDEP-20A - Communication Connector (CN3 CN4) Terminal Layout

20

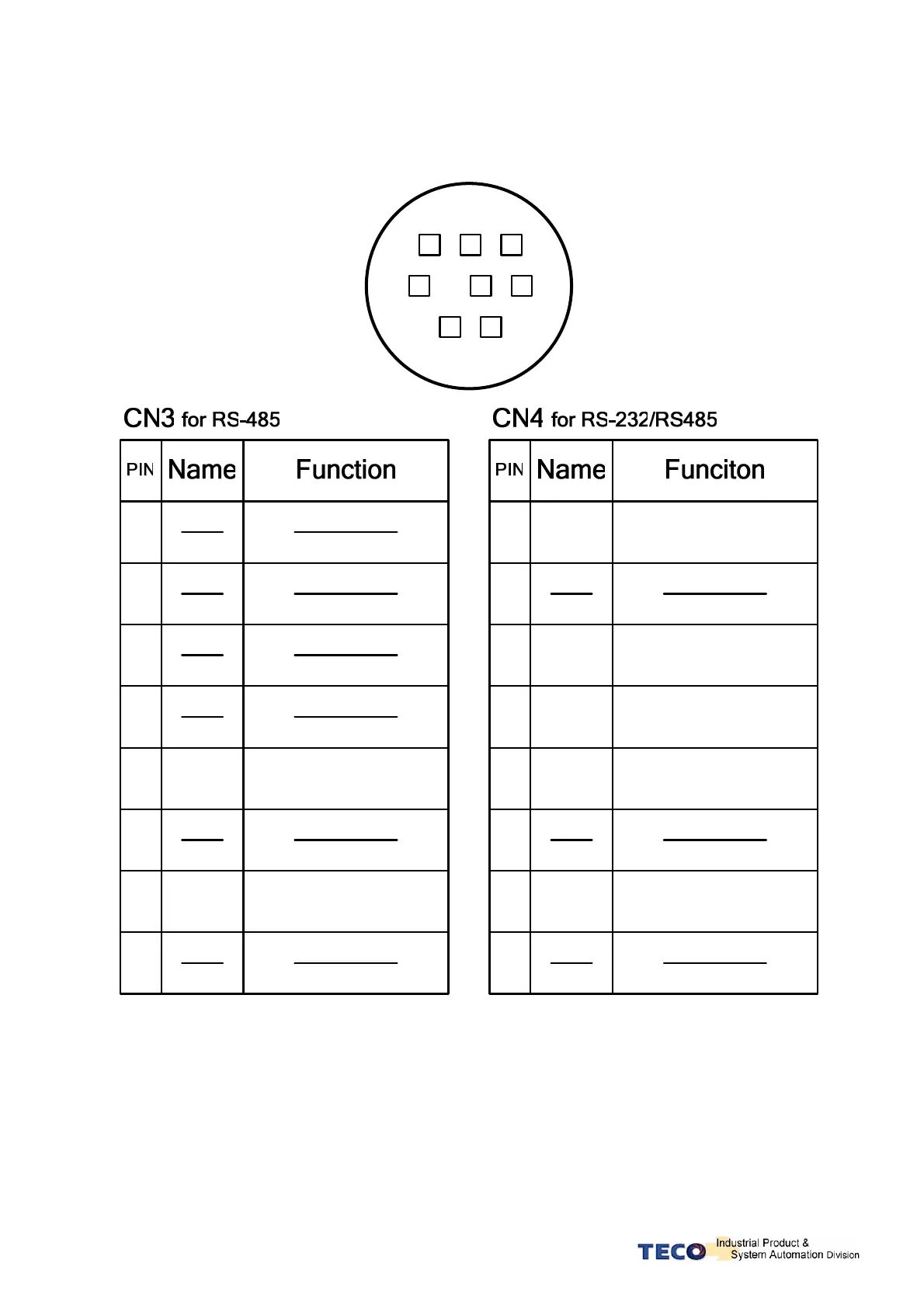

2-2-3 Communication Connector (CN3/CN4) Terminal Layout
8 6
35
12
1 RxD Serial data receive
2
3 GND Ground
4 TxD Serial data transmission
5 Data +
Serial data transmission
+
6
7 Data - Serial data transmission -
8
1
2
3
4
5 Data +
Serial data transmission
+
6
7 Data - Serial data transmission -
8
