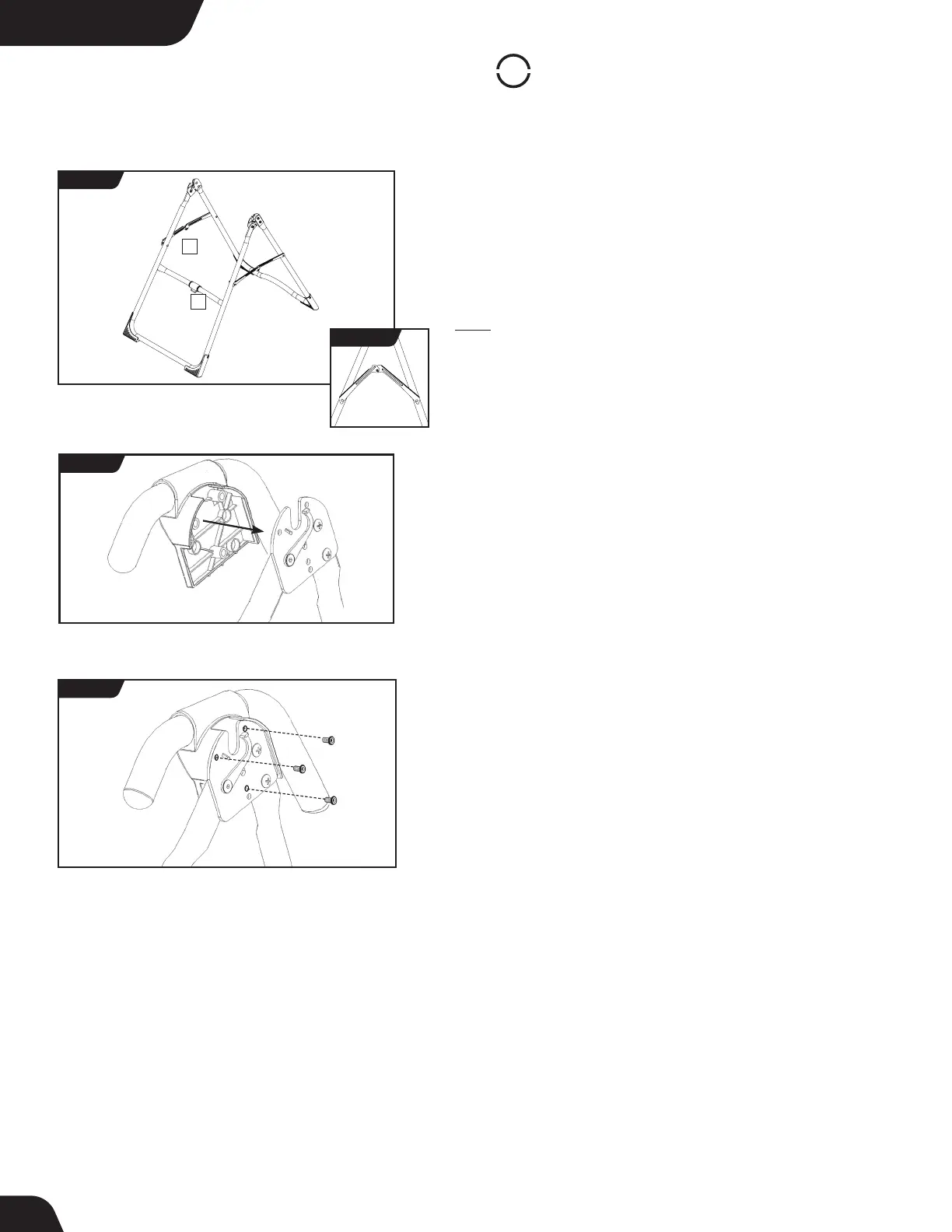

STEP 1
Assemble A-Frame Base & Stretch Assist Handles
(X1 Models)
• On a level surface, position the A-Frame so that it is standing upright
and the Stability Feet are on the ground.
• Gently push down on the Spreader Arms to ensure they are fully open
and in the “locked” position (Figure 1).
• Look for temporary circular assembly assistance labels on the
A-Frame. RIGHT, LEFT, FRONT, and REAR indicate your position while
using the equipment, not facing it. These labels can be removed easily
upon completion of assembly.
• Locate the Handle Assembly Hardware Kit (HK1008).
• Determine the left or right handles, marked with an embossed L / R
on the inside of the black plastic part of each handle.
• Align the black plastic part of the corresponding handle (left / right)
over the outside edge of the Hinge Plate on the A-Frame (Figure 2).
• Insert and loosely hand-tighten three of the Allen Head Screws
through the Hinge Plate into the handle (Figure 3).
• Repeat with other handle. Tighten all fasteners with the
5mm Allen Wrench provided, being careful not to over-tighten.
• Proceed to Page 8 for Step 2.
1 - Spreader Arms 2 - Crossbar
LEFT
RIGHT
FIGURE 1
1
2
REAR
FRONT
For X1 Models
FIGURE 2
FIGURE 3
LOCKED
FIGURE 1a
UNLOCKED
6
To Next Page
