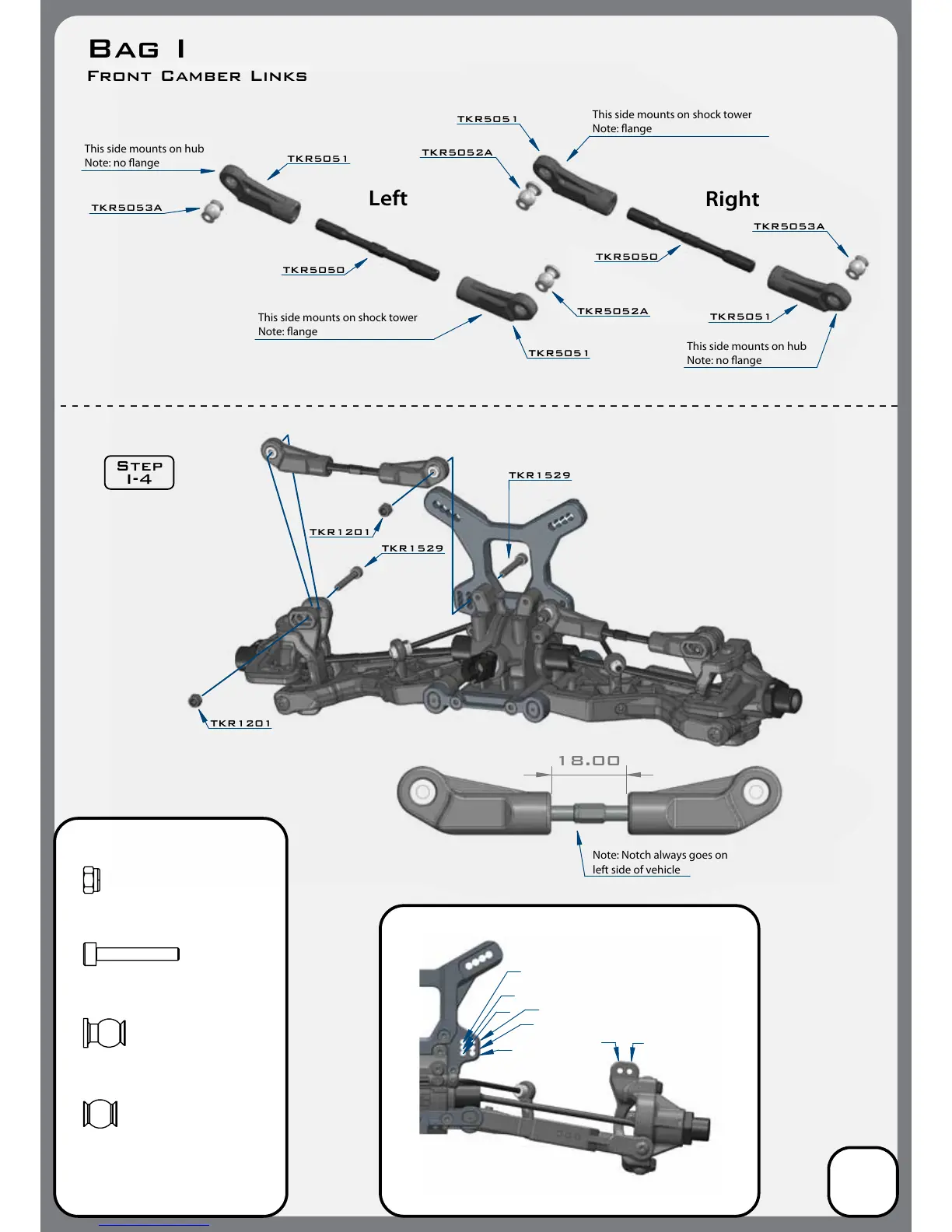

Tekno RC EB48.2 - Front Camber Links

TKR1529
18.00
A
B
Stock position is 2A
TKR1529
TKR1201
TKR1201
TKR1201
M3 Lock Nut Black
x4
TKR1529
M3x20mm Cap Head Screw
x4
TKR5052A
Pivot Ball M3x6.8mm
x2
TKR5053A
Pivot Ball M3x6.8mm
No Flange
x2
TKR5051
TKR5050
TKR5051
TKR5052A
This side mounts on hub
Note: no ange
This side mounts on shock tower
Note: ange
TKR5053A
Right
TKR5051
This side mounts on hub
Note: no ange
This side mounts on shock tower
Note: ange
TKR5051
Left
TKR5050
TKR5053A
TKR5052A
1
2
3
4
5
6
Step
I-4
Note: Notch always goes on
left side of vehicle
Bag I
Front Camber Links
15
