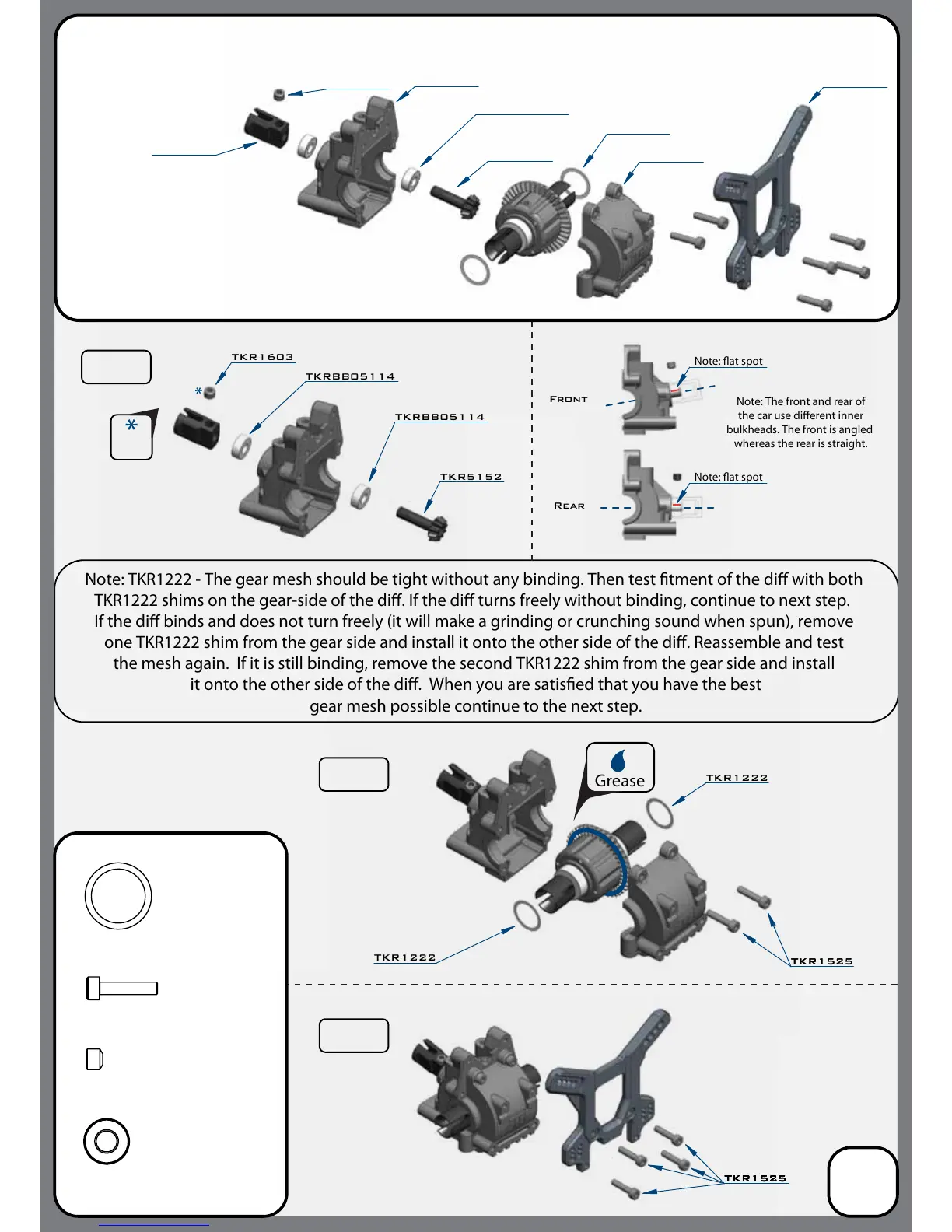

Tekno RC EB48.2 - Bag C: Front Gearbox Assembly

TKR1525TKR1525TKR1525TKR1525
TKR5012
TKR5012
TKR5028
TKR5075
TKR5152
Front
Rear
Note: The front and rear of
the car use dierent inner
bulkheads.
The front is angled
whereas the rear is straight.
x2
TKR1222
TKR1603
TKRBB05114
TKRBB05114
TKR5152
TKR1222
TKR1222
TKR1525TKR1525
13x16x0.1mm Diff shim
Note: TKR1222 - The gear mesh should be tight without any binding. Then test tment of the di with both
TKR1222 shims on the gear-side of the di. If the di turns freely without binding, continue to next step.
If the di binds and does not turn freely (it will make a grinding or crunching sound when spun), remove
one TKR1222 shim from the gear side and install it onto the other side of the di. Reassemble and test
the mesh again. If it is still binding, remove the second TKR1222 shim from the gear side and install
it onto the other side of the di. When you are satised that you have the best
gear mesh possible continue to the next step.
TKR1222
TKRBB05114
TKR1525
M3x14mm Cap Head Screw
x6
TKR1603
M5x4mm Set Screw
TKRBB05114
Ball Bearing (5x11x4)
x2
x1
TKR1603
Grease
Note: at spot
Note: at spot
Bag C
Front Gearbox
(overview)
Step
C-1
Step
C-2
Step
C-3
5
Thread
Lock
