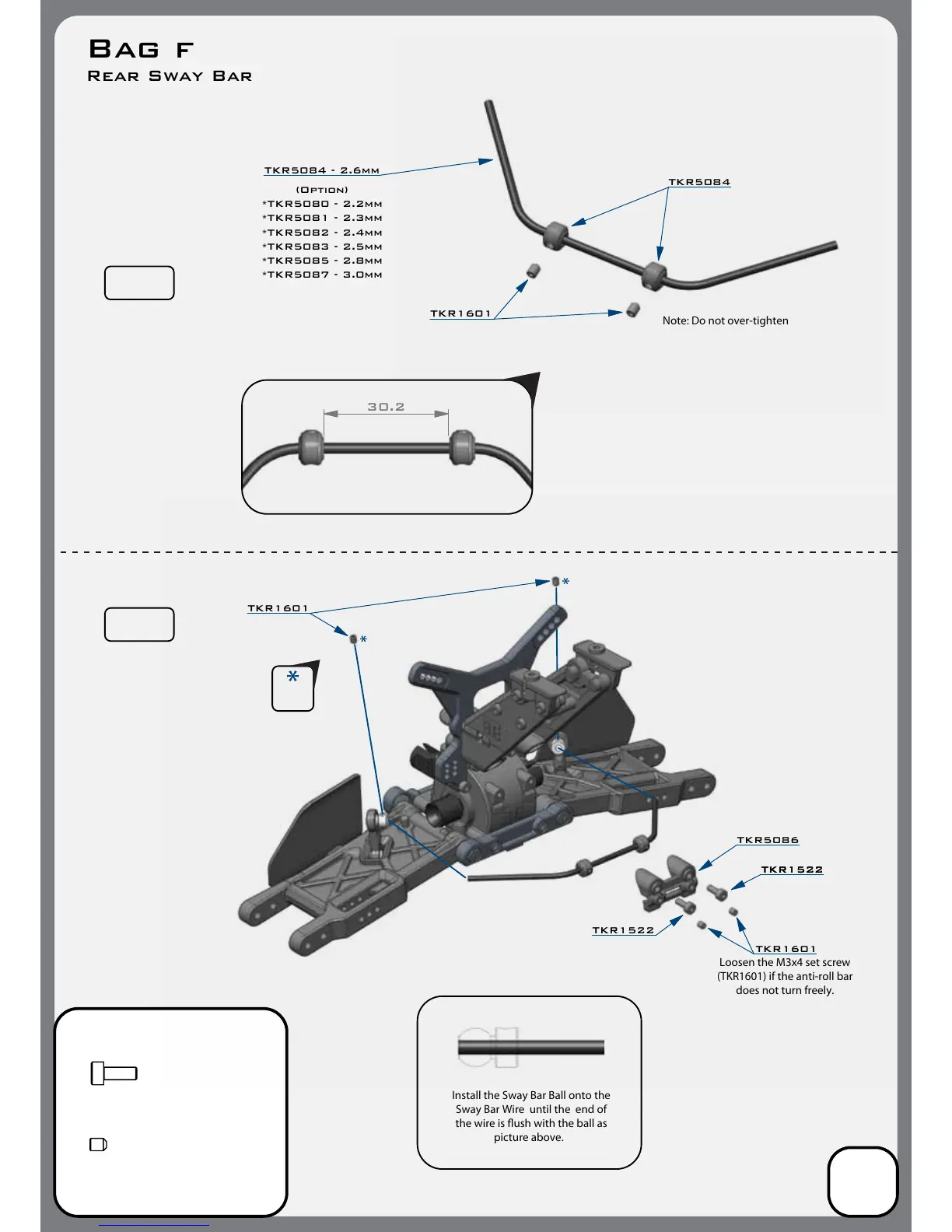

Tekno RC EB48.2 - Rear Sway Bar

30.2
TKR1601
TKR1601
TKR1522TKR1522
TKR1601
TKR5086
TKR5084 - 2.6mm
TKR5084
TKR1522
M3x8mm Cap Head Screw
x2
TKR1601
M3x4mm Set Screw
x6
Install the Sway Bar Ball onto the
Sway Bar Wire until the end of
the wire is ush with the ball as
picture above.
Loosen the M3x4 set screw
(TKR1601) if
the anti-roll bar
does not
turn freely.
Note: Do not over-tighten
TKR1522
Bag f
Rear Sway Bar
(Option)
*TKR5080 - 2.2mm
*TKR5081 - 2.3mm
*TKR5082 - 2.4mm
*TKR5083 - 2.5mm
*TKR5085 - 2.8mm
*TKR5087 - 3.0mm
Step
F-3
Step
F-4
Thread
Lock
9
