Tektronix 2205 Operator's Manual

Operator’s Safety Summary

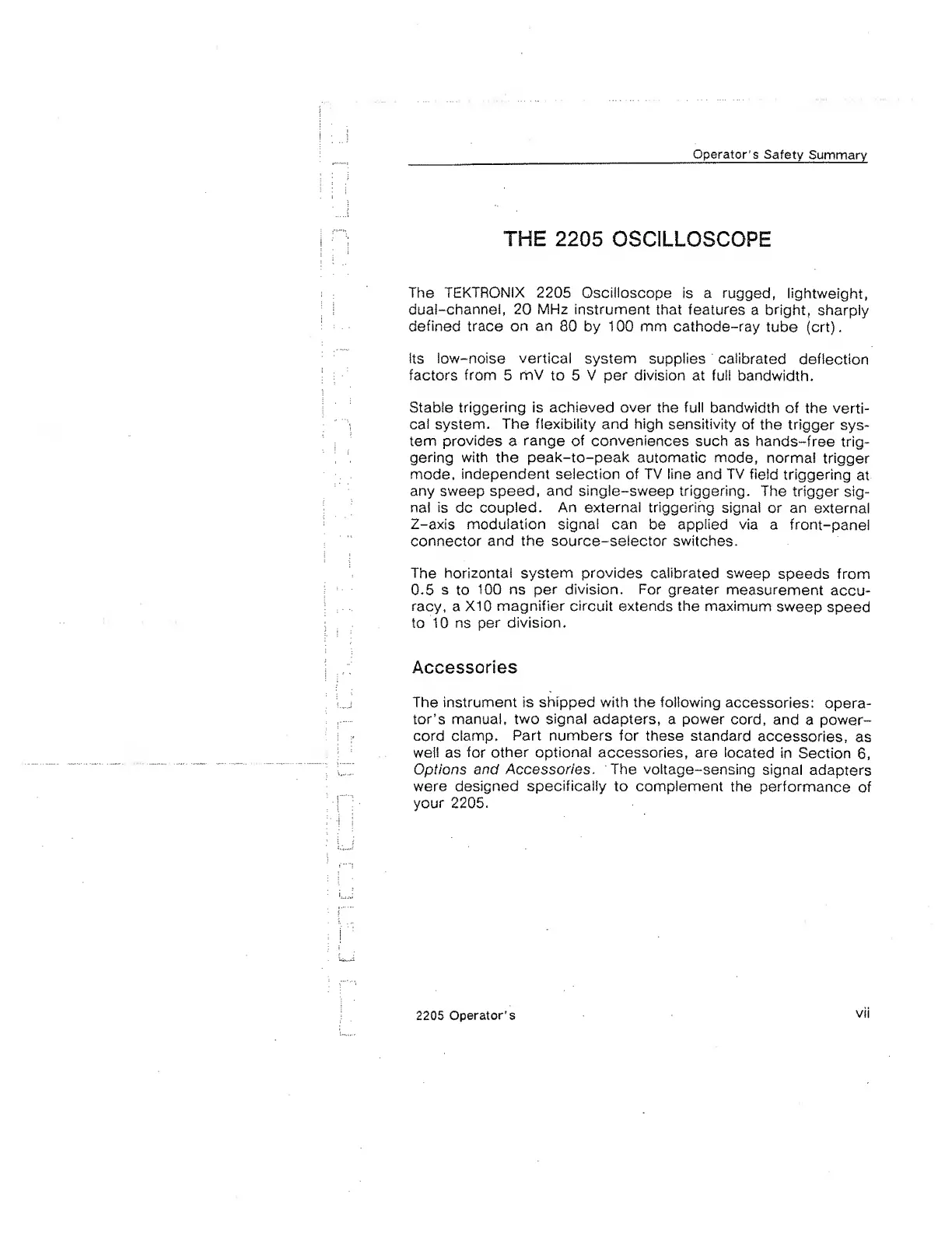

THE 2205 OSCILLOSCOPE
The TEKTRONIX 2205 Oscilloscope is a rugged, lightweight,
dual-channel, 20 MHz instrument that features a bright, sharply
defined trace on an 80 by 100 mm cathode-ray tube (crt).
Its iow-noise vertical system supplies calibrated deflection
factors from 5 mV to 5 V per division at full bandwidth.
Stable triggering is achieved over the full bandwidth of the verti¬
cal system. The flexibility and high sensitivity of the trigger sys¬
tem provides a range of conveniences such as hands-free trig¬
gering with the peak-to-peak automatic mode, normal trigger
mode, independent selection of TV line and TV field triggering at
any sweep speed, and single-sweep triggering. The trigger sig¬
nal is dc coupled. An external triggering signal or an external
Z-axis modulation signal can be applied via a front-panel
connector and the source-selector switches.
The horizontal system provides calibrated sweep speeds from
0.5 s to 100 ns per division. For greater measurement accu¬
racy. a XI0 magnifier circuit extends the maximum sweep speed
to 10 ns per division.
Accessories
The instrument is shipped with the following accessories: opera¬
tor’s manual, two signal adapters, a power cord, and a power-
cord clamp. Part numbers for these standard accessories, as
well as for other optional accessories, are located in Section 6,
Options and Accessories. The voltage-sensing signal adapters
were designed specifically to complement the performance of
your 2205.
vii
2205 Operator's
