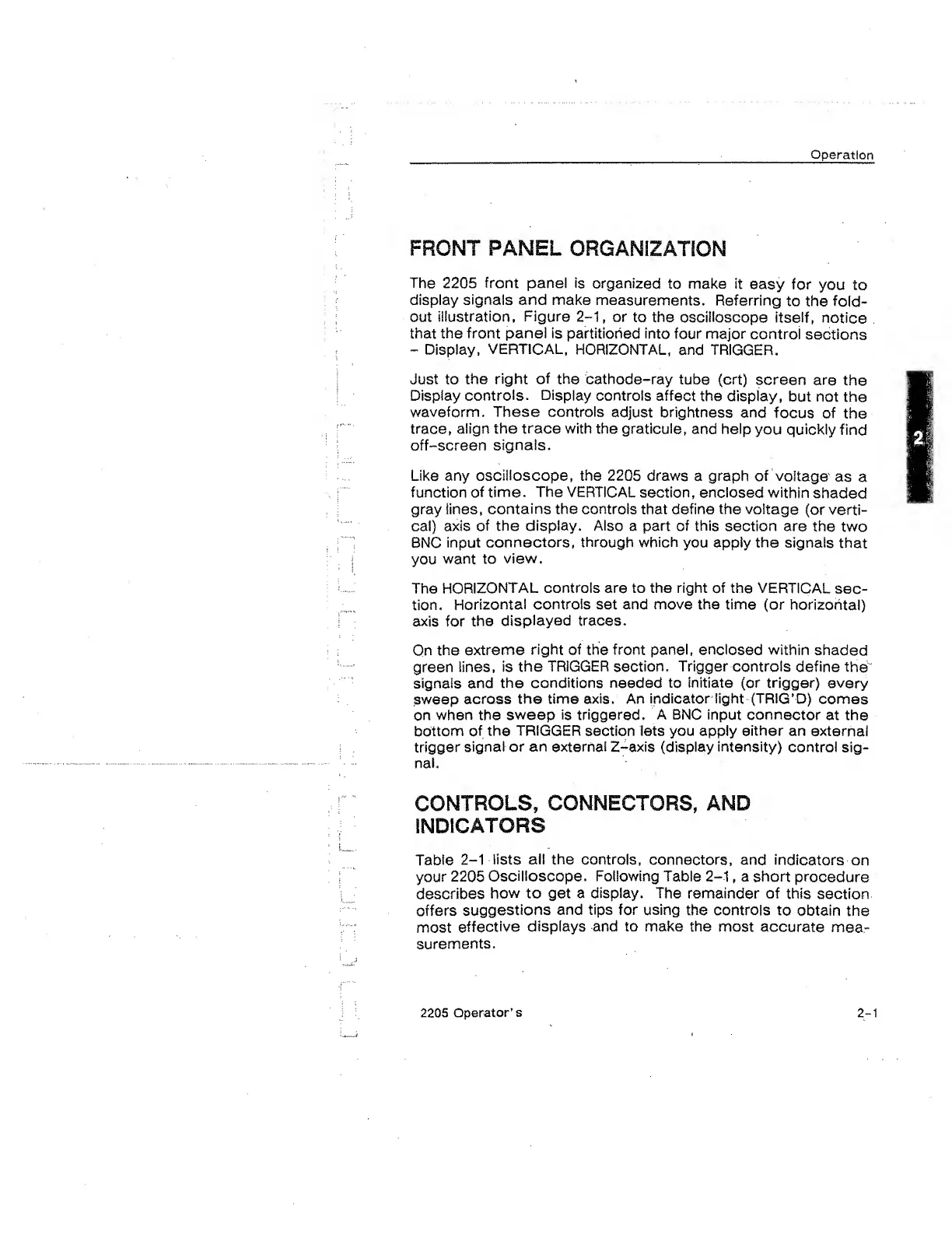

Operation
FRONT
PANEL
ORGANIZATION
The
2205
front
panel
is
organized
to
make
it
easy
for
you
to
display
signals
and
make
measurements.
Referring
to
the
fold-
out
illustration,
Figure
2-1,
or
to
the
oscilloscope
itself,
notice
that
the
front
panel
is
partitioned
into
four
major
control
sections
-
Display,
VERTICAL,
HORIZONTAL,
and
TRIGGER.
Just
to
the
right
of
the
cathode-ray
tube
(crt)
screen
are
the
Display
controls.
Display
controls
affect
the
display,
but
not
the
waveform.
These
controls
adjust
brightness
and
focus
of
the
trace,
align
the
trace
with
the
graticule,
and
help
you
quickly
find
off-screen
signals.
Like
any
oscilloscope,
the
2205
draws
a
graph
of
voltage
as
a
function
of
time.
The
VERTICAL
section,
enclosed
within
shaded
gray
lines,
contains
the
controls
that
define
the
voltage
(or
verti¬
cal)
axis
of
the
display.
Also
a
part
of
this
section
are
the
two
BNC
input
connectors,
through
which
you
apply
the
signals
that
you
want
to
view.
The
HORIZONTAL
controls
are
to
the
right
of
the
VERTICAL
sec¬
tion,
Horizontal
controls
set
and
move
the
time
(or
horizontal)
axis
for
the
displayed
traces.
On
the
extreme
right
of
the
front
panel,
enclosed
within
shaded
green
lines,
is
the
TRIGGER
section.
Trigger
controls
define
the
signals
and
the
conditions
needed
to
initiate
(or
trigger)
every
sweep
across
the
time
axis.
An
indicator
light
(TRIG’D)
comes
on
when
the
sweep
is
triggered.
A
BNC
input
connector
at
the
bottom
of
the
TRIGGER
section
lets
you
apply
either
an
external
trigger
signaler
an
external
Z-axis
(display
intensity)
control
sig¬
nal.
CONTROLS,
CONNECTORS,
AND
INDICATORS
Table
2-1
lists
all
the
controls,
connectors,
and
indicators
on
your
2205
Oscilloscope.
Following
Table
2-1,
a
short
procedure
describes
how
to
get
a
display.
The
remainder
of
this
section
offers
suggestions
and
tips
for
using
the
controls
to
obtain
the
most
effective
displays
and
to
make
the
most
accurate
mea¬
surements.
2205
Operator’s
2-1
