Tektronix 2205 Operator's Manual

Applications

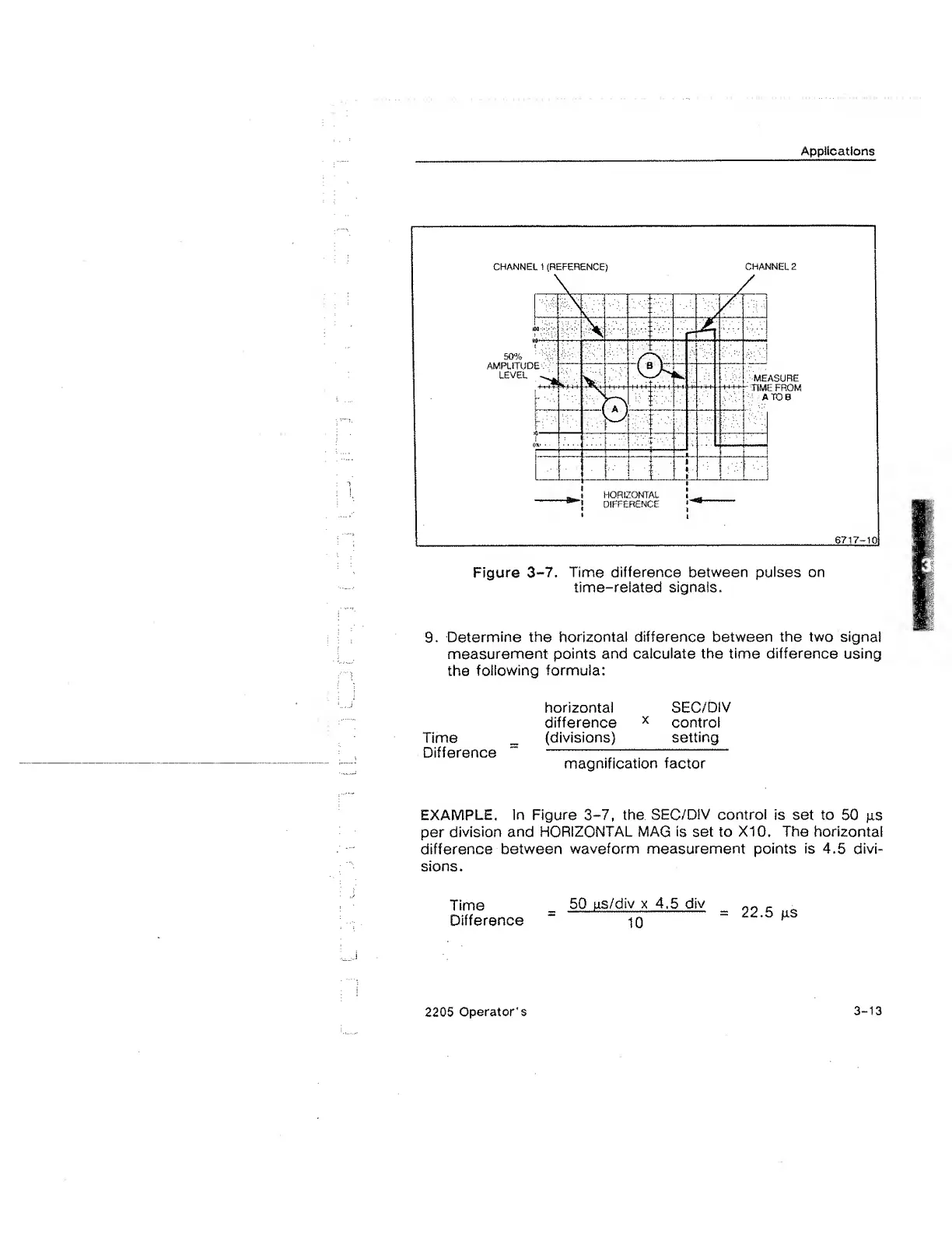

Figure 3-7. Time difference between pulses on
time-related signals.
9. Determine the horizontal difference between the two signal
measurement points and calculate the time difference using
the following formula:
Time
Difference
horizontal SEC/DIV
difference ^ control
(divisions) setting
magnification factor
EXAMPLE. In Figure 3-7, the SEC/DIV control is set to 50 jis
per division and HORIZONTAL MAG is set to X10. The horizontal
difference between waveform measurement points is 4.5 divi¬
sions.
Time
Difference
50 us/div X 4.5 div
10
- 22.5 jis
2205 Operator’s
3-13
