Tektronix 2205 Operator's Manual

Checks and Adjustments
9. Select CH2 VERTICAL MODE. Disconnect the Channel 1
probe tip and attach the Channel 2 probe tip to the PROBE
ADJUST output terminal.
10. Obtain a 5-division signal display and vertically center the
trace.
11. Repeat step 7 for the Channel 2 probe.

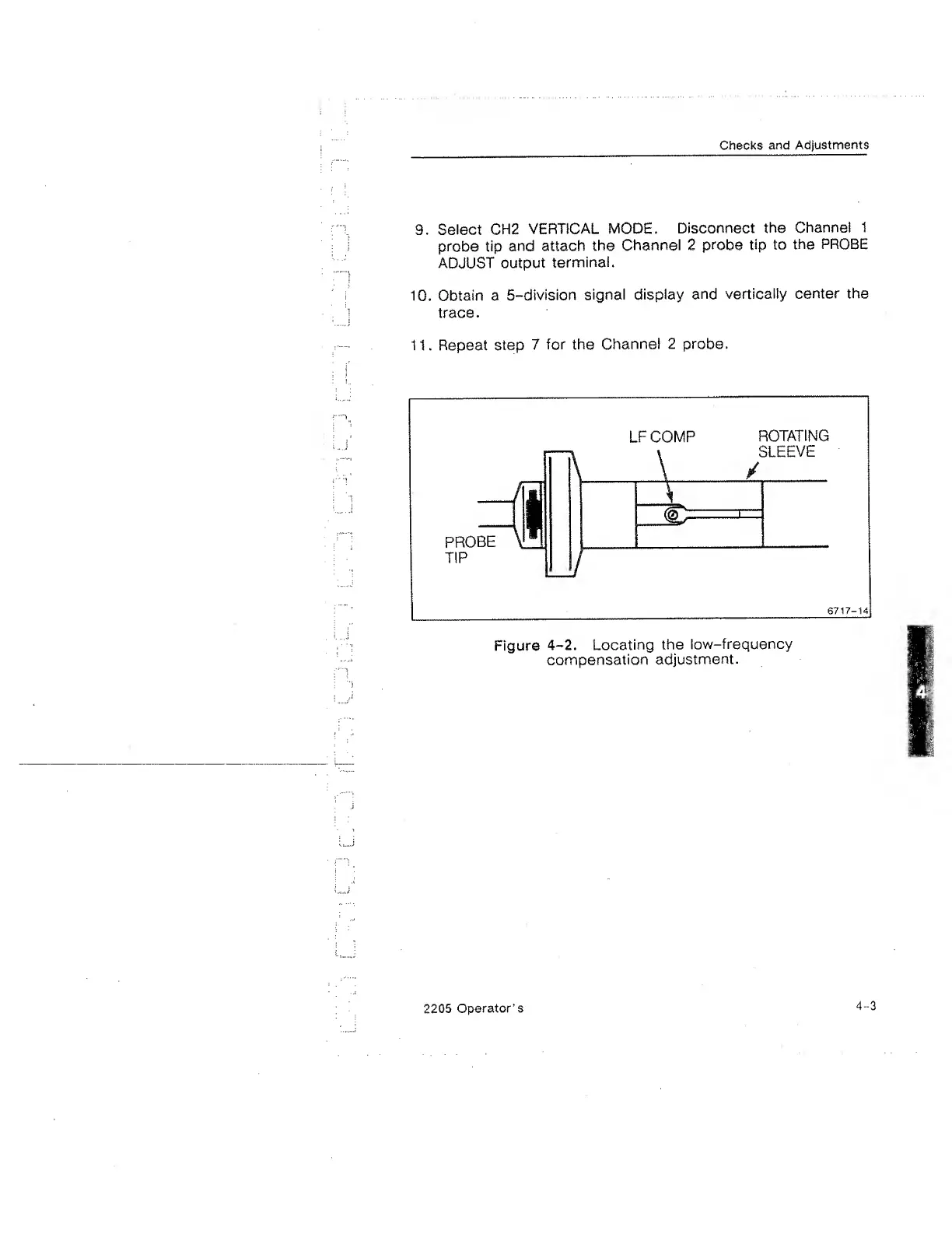

Figure 4-2. Locating the low-frequency
compensation adjustment.
2205 Operator’s
4-3
