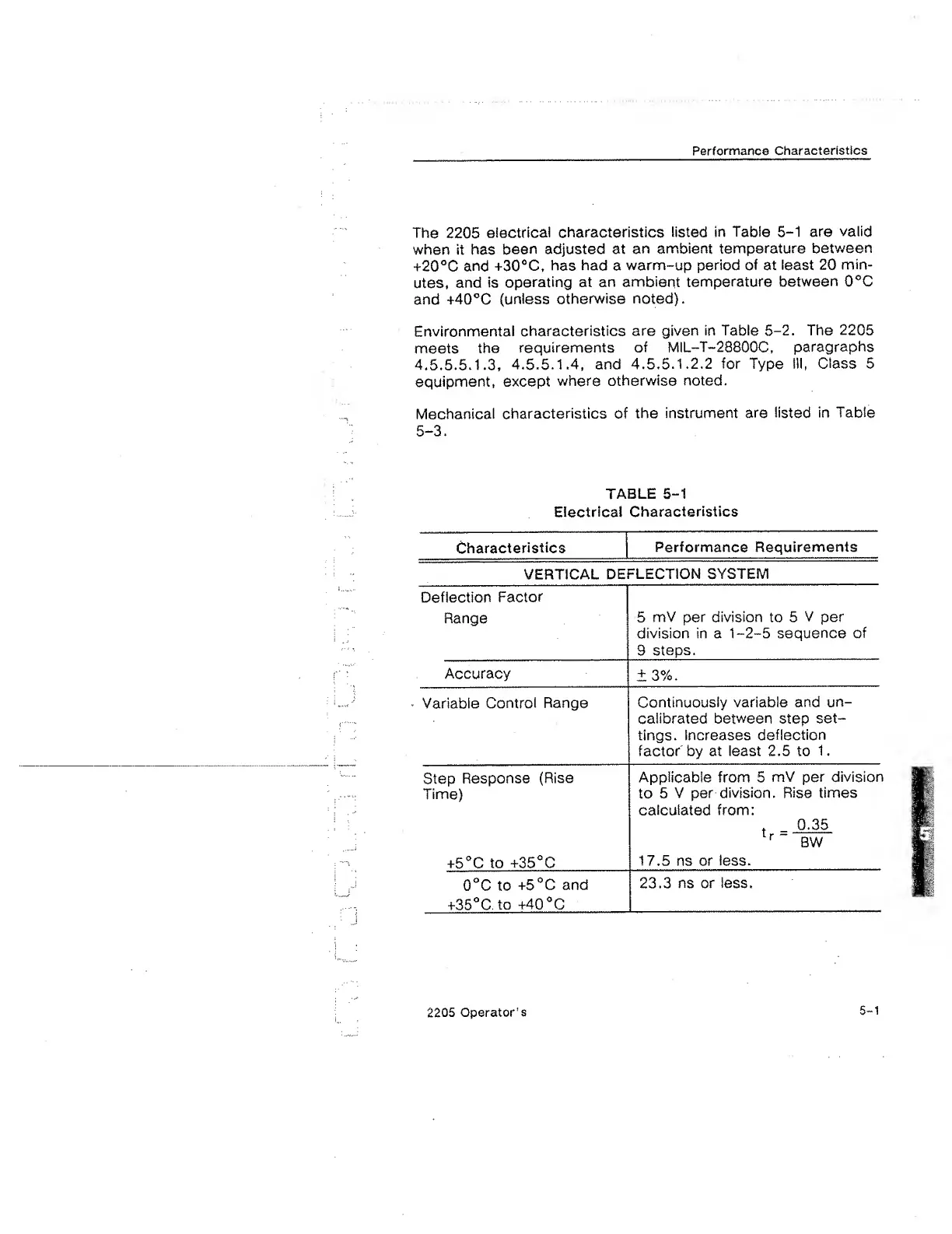

Performance Characteristics
The 2205 electrical characteristics listed in Table 5-1 are valid
when it has been adjusted at an ambient temperature between
+20°C and +30‘’C, has had a warm-up period of at least 20 min¬
utes, and is operating at an ambient temperature between O^C
and +40®C (unless otherwise noted).
Environmental characteristics are given in Table 5-2. The 2205
meets the requirements of MIL-T-28800C, paragraphs
4.5.5.5.1.3, 4.5.5.1.4, and 4.5.5.1.2.2 for Type 111, Class 5
equipment, except where otherwise noted.
Mechanical characteristics of the instrument are listed in Table
5-3.
TABLE 5-1
Electrical Characteristics
Characteristics
Performance Requirements
VERTICAL DEFLECTION SYSTEM
Deflection Factor
Range
5 mV per division to 5 V per
division in a 1-2-5 sequence of
9 steps.
Accuracy
± 3%.
Variable Control Range
Continuously variable and un¬
calibrated between step set¬
tings. Increases deflection
factor by at least 2.5 to 1.
Step Response (Rise
Time)
Applicable from 5 mV per division
to 5 V per division. Rise times
calculated from:
, 0.35
BW
+5°C to +35“C
17.5 ns or less.
O'^C to +5‘^C and
+36°C.to+40°C
23.3 ns or less.
2205 Operator’s
5-1
