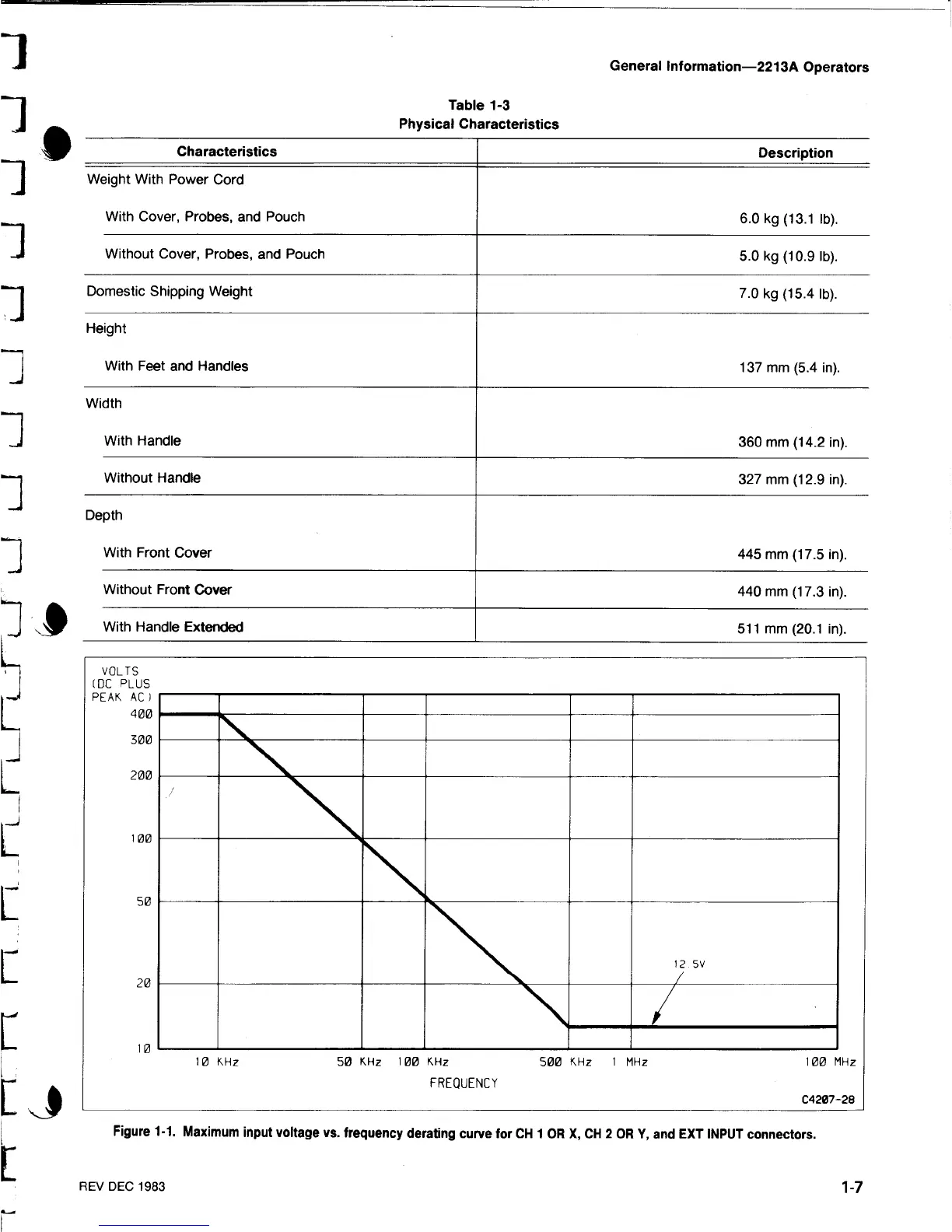

Table 1-3
Physical Characteristics
General Information—2213A Operators
Characteristics
Description
Weight With Power Cord
With Cover, Probes, and Pouch
6.0 kg (13.1 lb).
Without Cover, Probes, and Pouch
5.0 kg (10.9 lb).
Domestic Shipping Weight
7.0 kg (15.4 lb).
Height
With Feet and Handles
137 mm (5.4 in).
Width
With Handle
360 mm (14.2 in).
Without Handle
327 mm (12.9 in).
Depth
With Front Cover
445 mm (17.5 in).
Without Front Cover
440 mm (17.3 in).
With Handle Extended
511 mm (20.1 in).
V O LT S
10 KHz 50 KHz 100 KHz 500 KHz 1 MHz 100 MHz
FREQUENCY
C4207-28
Figure 1-1. Maximum input voltage vs. frequency derating curve for CH 1 OR X, CH 2 OR Y, and EXT INPUT connectors.
REV DEC 1983
1-7
