Tektronix 2213A

Preparation For Use— 2213A Operators
LINE
FUSE
A
CAUTION
fo r c o n tin u e d fir e pr o te c tio n
REPLACE ONLY W ITH SPECIFIED
TYPE ANO RATEO FUSE DISCONNECT
POWER INPUT BEFORE REPLACING FUSE
LINE VOLTAGE RANGE FUSE 250V
90-250VAC IA SLOW
CAUTION
TO AVOID ELECTRIC
SHOCK. THE POWER
CORO PROTECTIVE
GROUNDING CONDUCTOR "
MUST BE CONNECTED
TO GROUND
POWER
CORD
C4207-03
INSTRUMENT COOLING
Always maintain adequate instrument cooling. The venti
lation holes on both sides of the instrument cabinet and on
the rear panel must remain free of obstruction.

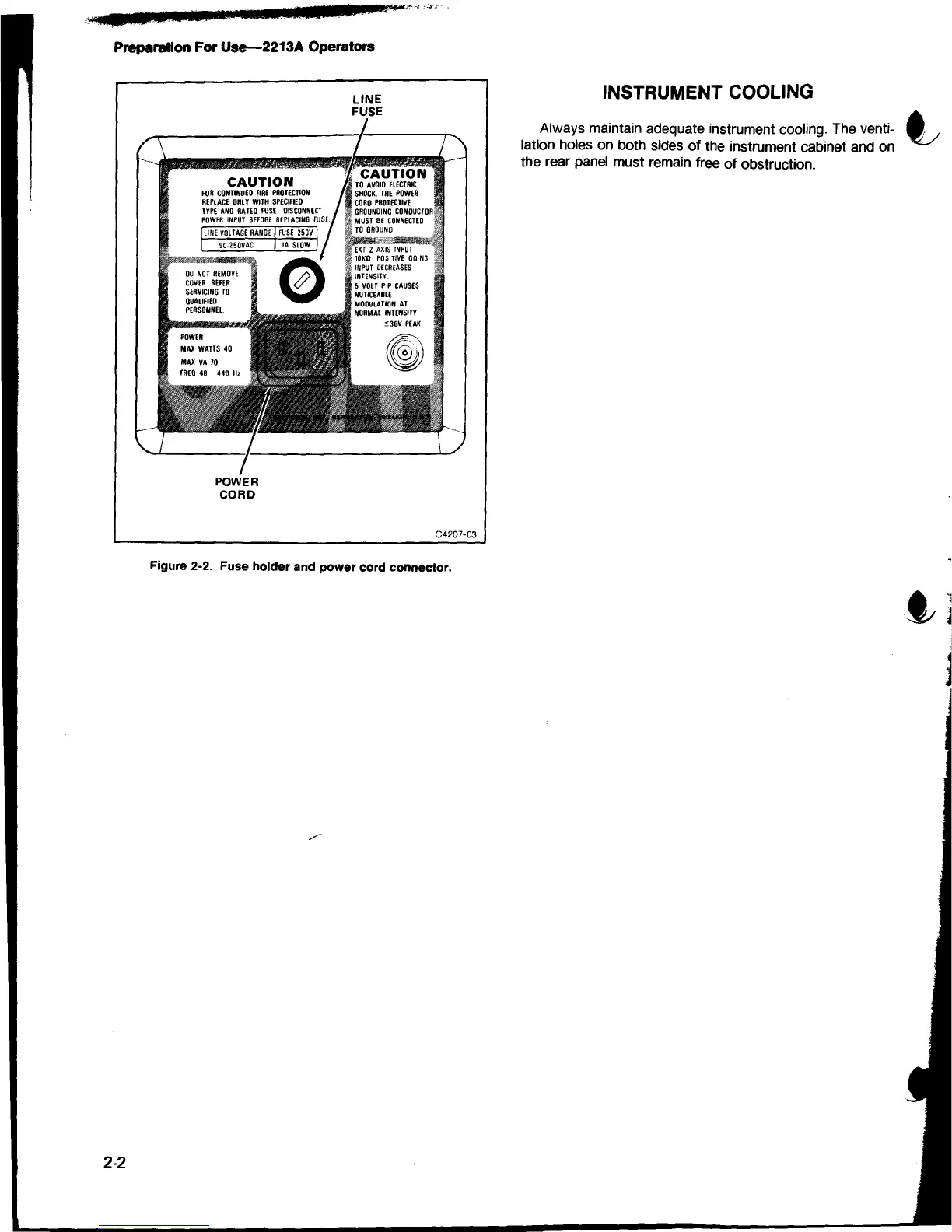

Figure 2-2. Fuse holder and power cord connector.
