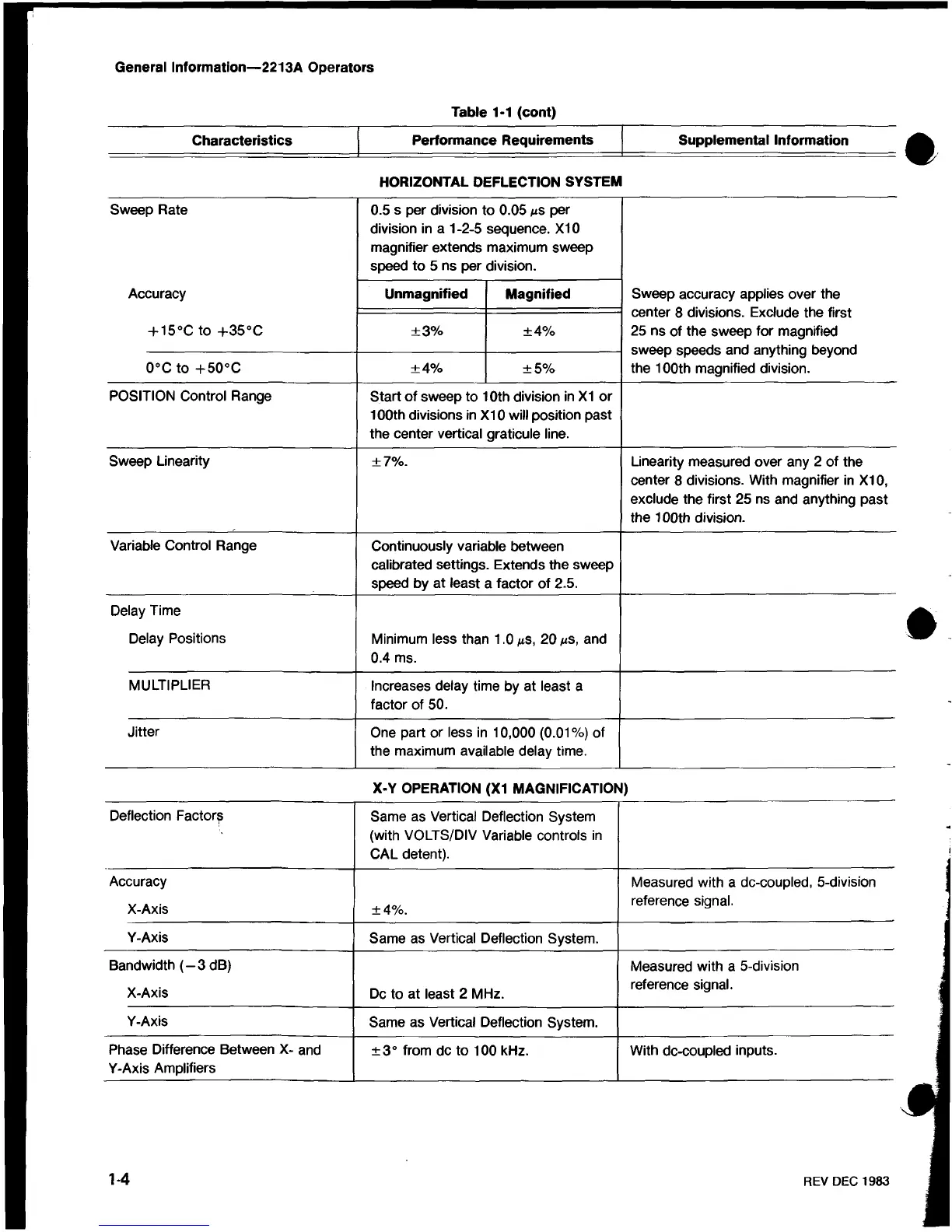

General Information—2213A Operators
Table 1-1 (cont)
Characteristics
Performance Requirements Supplemental Information
HORIZONTAL DEFLECTION SYSTEM
Sweep Rate 0.5 s per division to 0.05 ns per
division in a 1-2-5 sequence. X I0
magnifier extends maximum sweep
speed to 5 ns per division.
Accuracy Unmagnified Magnified Sweep accuracy applies over the
center 8 divisions. Exclude the first
25 ns of the sweep for magnified
sweep speeds and anything beyond
the 100th magnified division.
+ 15°C to +35°C
±3%
±4%
0°C to +50°C
±4%
±5%
POSITION Control Range Start of sweep to 10th division in XI or
100th divisions in X I0 will position past
the center vertical graticule line.
Sweep Linearity
±7%.
Linearity measured over any 2 of the
center 8 divisions. With magnifier in X I0,
exclude the first 25 ns and anything past
the 100th division.
Variable Control Range
Continuously variable between
calibrated settings. Extends the sweep
speed by at least a factor of 2.5.
Delay Time
Delay Positions
Minimum less than 1.0 ns, 20 vs, and
0.4 ms.
MULTIPLIER
Increases delay time by at least a
factor of 50.
Jitter
One part or less in 10,000 (0.01%) of
the maximum available delay time.
X-Y OPERATION (XI MAGNIFICATION)
Deflection Factory
Same as Vertical Deflection System
(with VOLTS/DIV Variable controls in
CAL detent).
Accuracy
X-Axis
±4%.
Measured with a dc-coupled, 5-division
reference signal.
Y-Axis
Same as Vertical Deflection System.
Bandwidth (-3d B )
X-Axis
Dc to at least 2 MHz.
Measured with a 5-division
reference signal.
Y-Axis
Same as Vertical Deflection System.
Phase Difference Between X- and
Y-Axis Amplifiers
±3° from dc to 100 kHz.
With dc-coupled inputs.
1-4
REV DEC 1983
