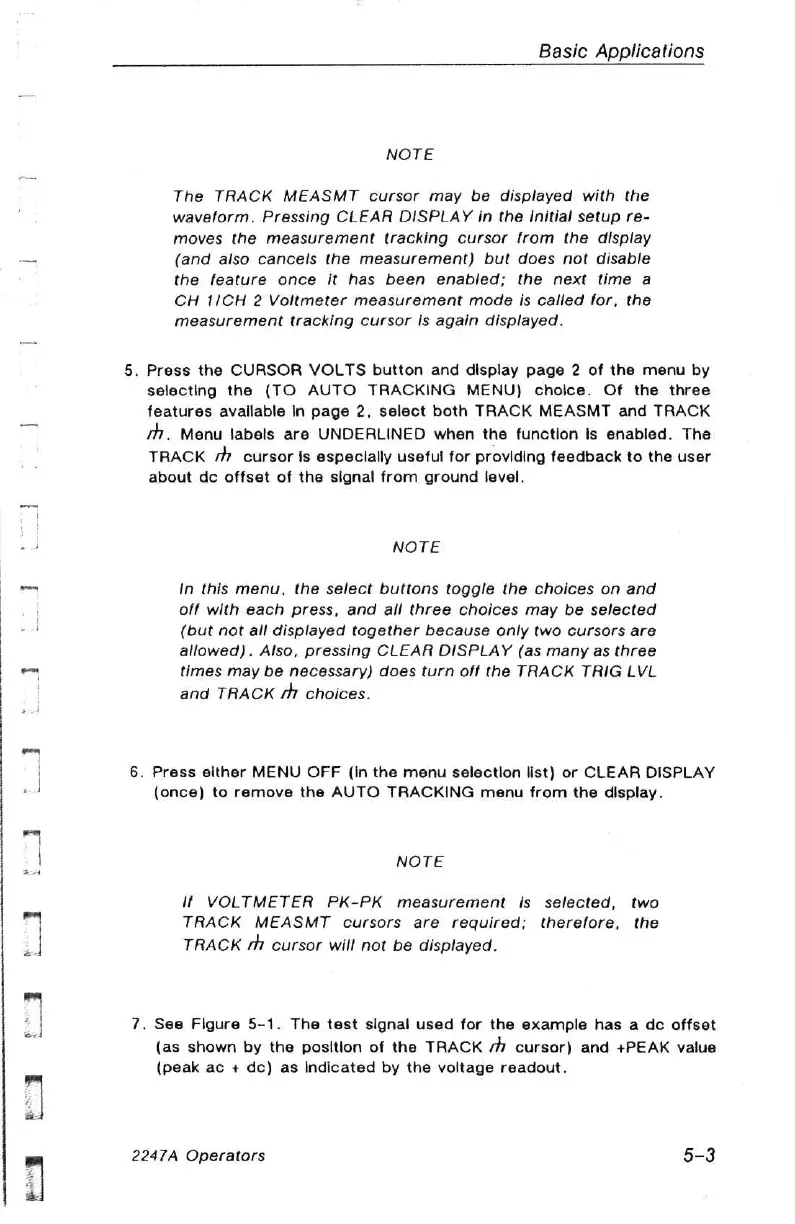

4
®
a
Basic
Applications
NOTE
The
TRACK
MEASMT
cursor
may
be
displayed
with
the
waveform.
Pressing
CLEAR
DISPLAY
in
the
Initial
setup
re-
moves
the
measurement
tracking
cursor
from
the
display
(and
also
cancels
the
measurement)
but
does
not
disable
the
feature
once
it
has
been
enabled;
the
next time
a
CH
1/CH
2
Voltmeter
measurement
mode
is
called
for,
the
measurement
tracking
cursor
is
again
displayed.
5.
Press
the
CURSOR
VOLTS
button
and
display
page
2
of
the
menu
by
selecting
the
(TO
AUTO
TRACKING
MENU)
choice.
Of
the
three
features
available
In
page
2,
select
both
TRACK
MEASMT
and
TRACK
7h.
Menu
labels
are
UNDERLINED
when
the
function
Is
enabled.
The
TRACK
7
cursor
Is
especially
useful
for
providing
feedback
to
the
user
about
dc
offset
of
the
signal
from
ground
level.
NOTE
In
this
menu,
the
select
buttons
toggle
the
choices
on
and
off
with
each
press,
and
all
three
choices
may
be
selected
(but
not
all
displayed
together
because
only
two
cursors
are
allowed).
Also,
pressing
CLEAR
DISPLAY
(as
many
as
three
times
may
be
necessary)
does
turn
off
the
TRACK
TRIG
LVL
and
TRACK
sh
choices.
6.
Press
elther
MENU
OFF
(in
the
menu
selectlon
list)
or
CLEAR
DISPLAY
(once)
to
remove
the
AUTO
TRACKING
menu
from
the
display.
NOTE
if
VOLTMETER
PK-PK
measurement
Is
selected,
two
TRACK
MEASMT
cursors
are
required;
therefore,
the
TRACK
/h
cursor
will
not
be
displayed.
7.
See
Figure
5-1.
The
test
signal
used
for
the
example
has
a
dc
offset
(as
shown
by
the
position
of
the
TRACK
ah
cursor)
and
+PEAK
value
(peak
ac
+
dc)
as
Indicated
by the
voltage
readout.
2247A
Operators
5-3
