Basic Applications
Gated Voltage Measurement
If you need to track the +PEAK, -PEAK, or PK-PK voltage of a selected
portion of a waveform, that portion can be defined using the GATED
MEASUREMENTS available In page 2 of the VOLTMETER menu. The
general steps given In the previous Peak Voltage Measurement procedure
are used for this function also. Set up all the controls and apply the signal to
be measured In the same way; but, after pressing the VOLTMETER
CH1/CH2 button, select the (TO GATED MEASMT MENU) choice. After
that, follow these additional steps to make the gated measurement.
MEASUREMENT +PEAK VOLTAGE
TRACKING (PEAK AC + DC OFFSET)
CURSOR I
Ogu
KTOKIOK be
{|
Ty
qU= Us
GROUND
TRACKING
CURSOR
6556-24

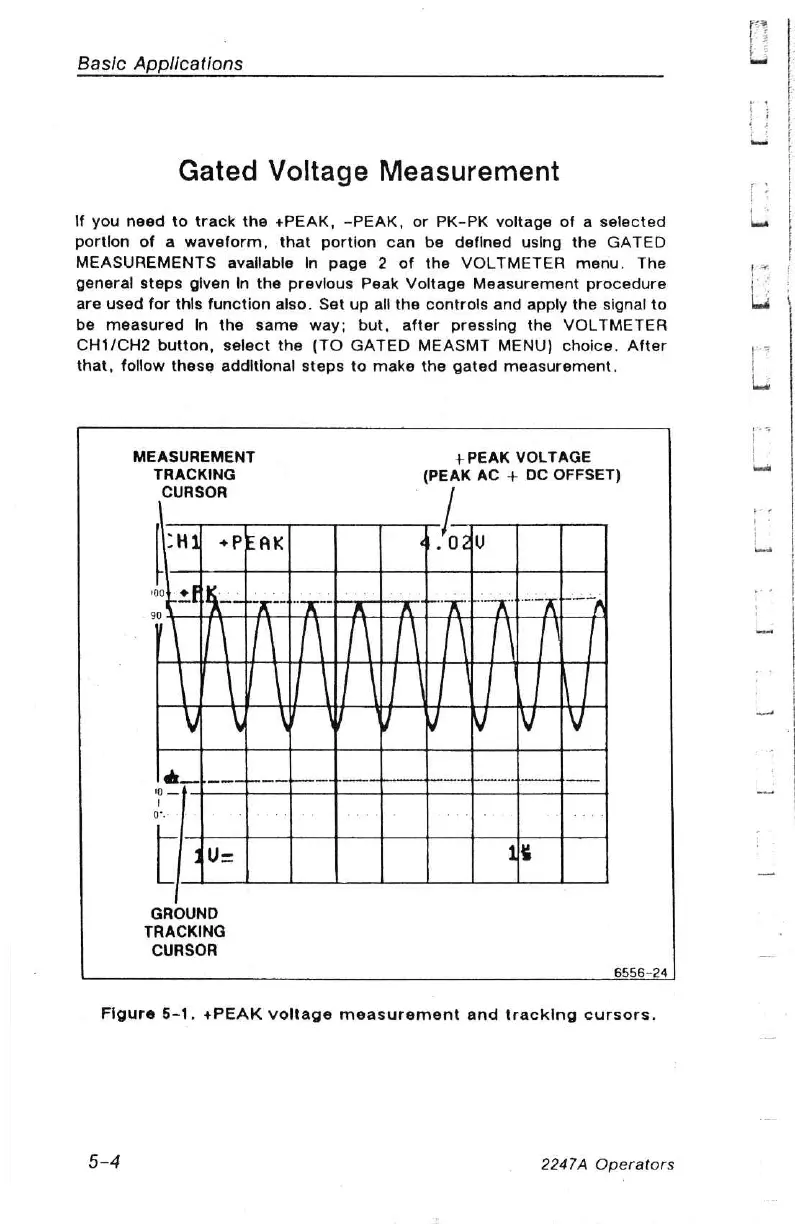

Figure 5-1, +PEAK voltage measurement and tracking cursors.
5-4 2247A Operators
