4
n
{4

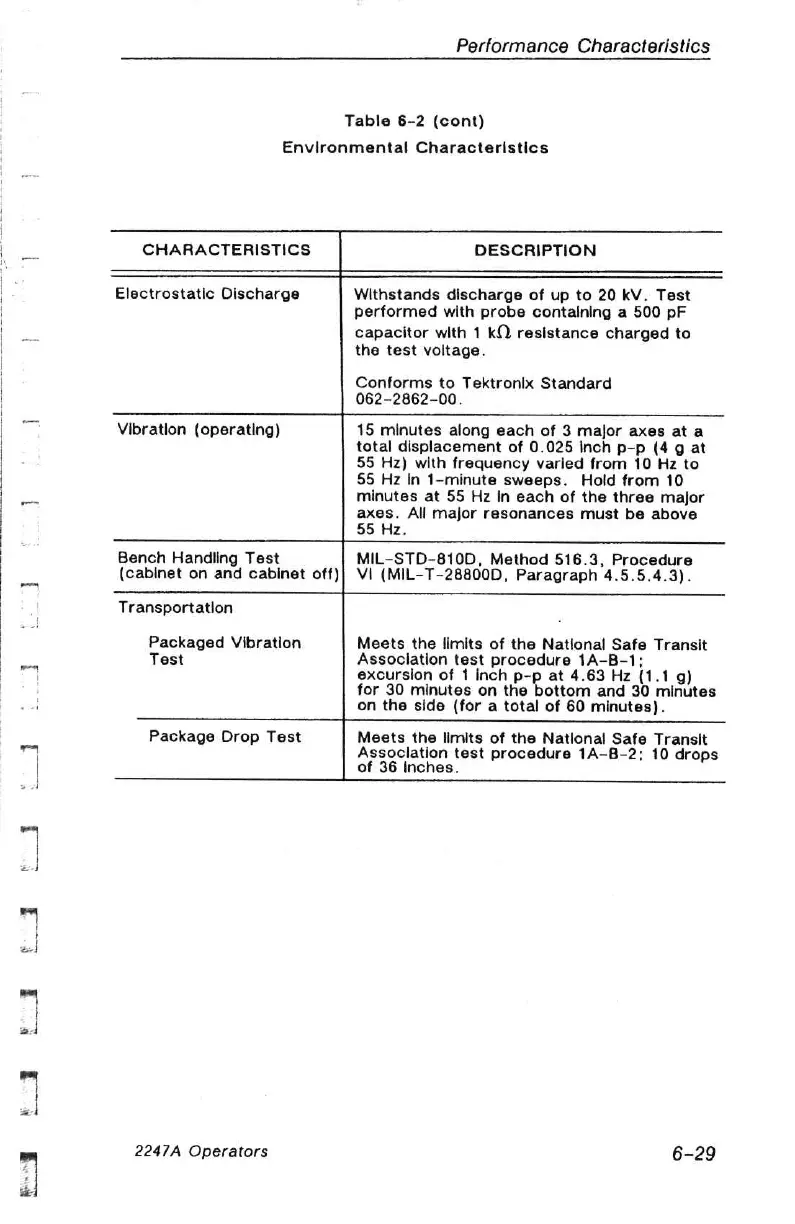

Performance
Characteristics
Table
6-2
(cont)
Environmental
Characteristics
CHARACTERISTICS
DESCRIPTION
Electrostatic
Discharge
Withstands
discharge
of
up
to
20
kV.
Test
performed
with
probe
containing
a
500
pF
capacitor
with
1
kQ
resistance
charged
to
the
test
voltage.
Conforms
to
Tektronix
Standard
062-2862-00.
Vibration
(operating)
15
minutes
along
each
of
3
major
axes
ata
total
displacement
of
0.025
Inch
p-p
(4 g
at
55
Hz)
with
frequency
varied
from
10
Hz
to
55
Hz
In
1-minute
sweeps.
Hold
from
10
minutes
at
55
Hz
In
each
of
the
three
major
axes.
All
major
resonances
must
be
above
55
Hz.
Bench
Handling
Test
(cabinet
on
and
cabinet
off)
MIL-STD-810D,
Method
516.3,
Procedure
Vi
(MIL-T-28800D,
Paragraph
4.5.5.4.3).
Transportation
Packaged
Vibration
Test
Meets
the
limits
of
the
National
Safe
Transit
Association
test
procedure
1A-B-1;
excursion
of
1
Inch
p-p
at
4.63
Hz
(1.
1)
for
30
minutes
on
the
bottom
and
30
minutes
on
the
side
(for
a
total
of
60
minutes).
Package
Drop
Test
2247A
Operators
Meets
the
limits
of
the
Natlonal
Safe
Transit
Assoclation
test
procedure
1A-B-2;
10
drops
of
36
Inches.
6-29
