Tektronix 2247A

Performance
Characteristics

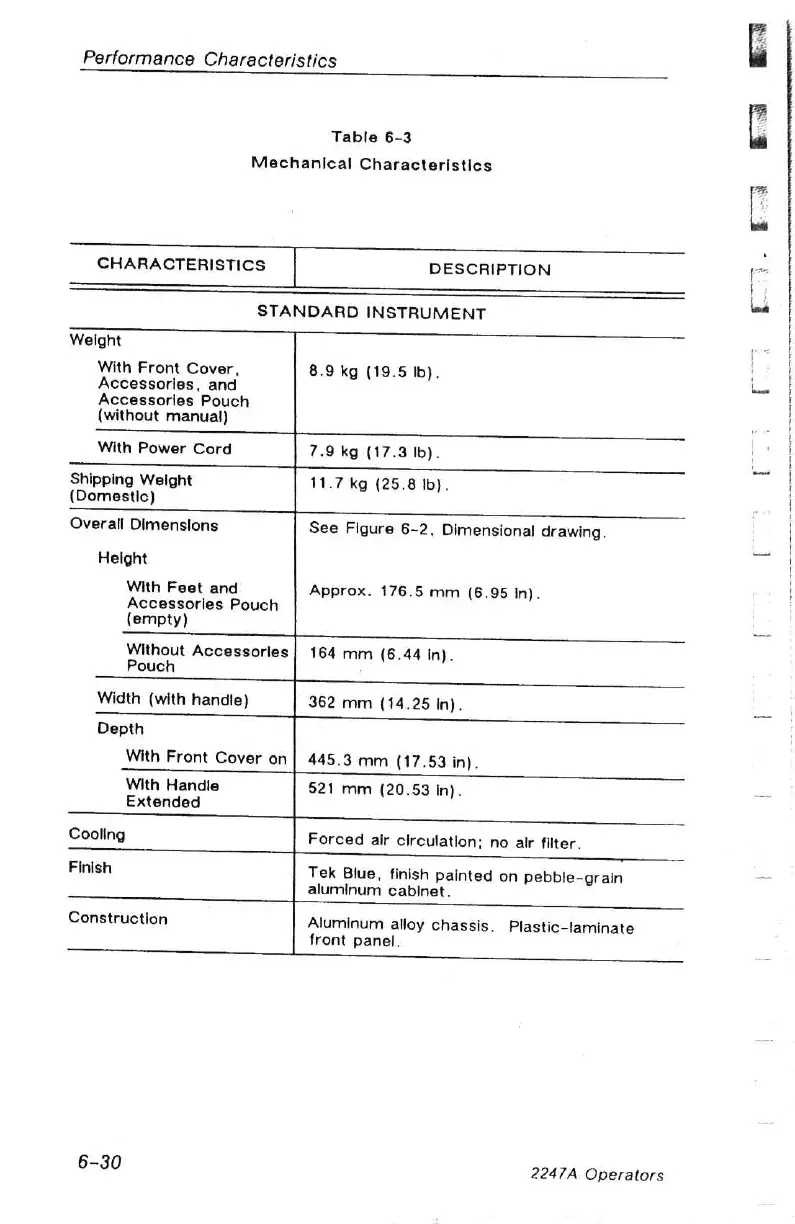

Table 6-3
Mechanical
Characteristics
CHARACTERISTICS
DESCRIPTION
STANDARD INSTRUMENT
Weight
With Front Cover,
Accessorles, and
Accessories Pouch
(without manual)
With Power Cord
Shipping Weight
(Domestic)
Overall Dimensions
Height
With Feet and
Accessories Pouch
(empty)
Without Accessorles
Pouch
Width (with handle)
8.9 kg (19.5 Ib).
7.9 kg (17.3 Ib).
11.7 kg (25.8 Ib).
See
Figure
6-2,
Dimensional
drawing.
Approx.
176.5
mm
(6.95
in).
164 mm (6.44 in).
362 mm (14.25 In).
Depth
With
Front
Cover
on|
445.3
mm
(17.53
in).
With
Handle
521
mm
(20.53
in).
Extended
Cooling
Forced
alr
circulation;
no
alr
filter.
Finish
Construction
6-30
Tek
Blue,
finish
painted
on
pebble-grain
aluminum
cabinet.
Aluminum
alloy
chassis.
Plastic-laminate
front
panel.
2247A Operators
