Performance Characteristics

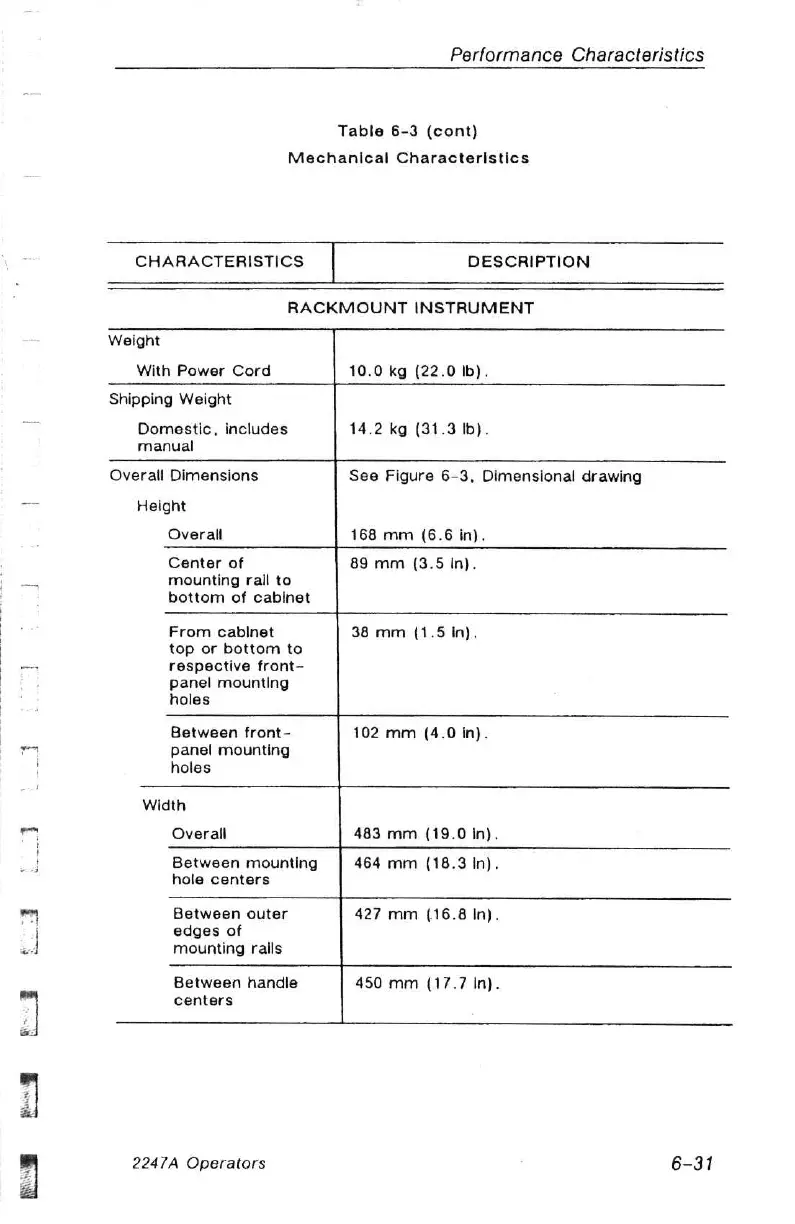

Table 6-3 (cont)
Mechanical Characteristics
CHARACTERISTICS DESCRIPTION
RACKMOUNT INSTRUMENT
Weight
With Power Cord 10.0 kg (22.0 Ib).
Shipping Weight
Domestic, includes
manual
14.2 kg (31.3 Ib).
Overall Dimensions See Figure 6-3, Dimensional drawing
Height
Overall 168 mm (6.6 in).
Center of 89 mm (3.5 In).
mounting rall to
bottom of cabinet
From cabinet
top or bottom to
respective front-
panel mounting
holes
38 mm (1.5 in).
Between front-
panel mounting
holes
102 mm (4.0 in).
Width
Overall 483 mm (19.0 in).
Between mounting
hole centers
464 mm (18.3 In).
Between outer
edges of
mounting ralls
427 mm (16.8 In).
Between handle
centers
450 mm (17.7 In).
