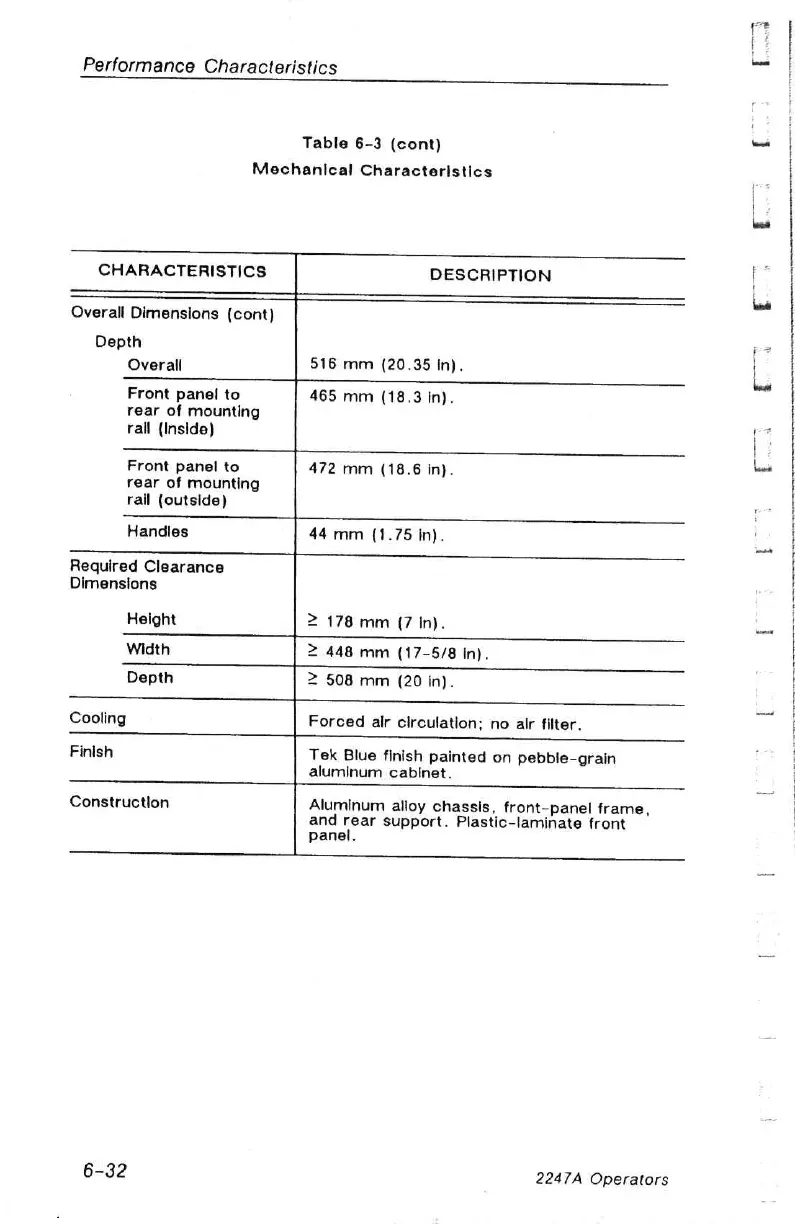

Tektronix 2247A

Performance Characteristics
Table 6-3 (cont)
Mechanical Characteristics
CHARACTERISTICS
Overall Dimensions (cont)
Depth
Overall
Front panel to
rear of mounting
rall (Inside)
DESCRIPTION
516 mm (20.35 In).
465 mm (18.3 in).
Front panel to
rear of mounting
472 mm (18.6 in).
rail (outside)
Handles
44
mm
(1.75
In).
Required Clearance
Dimensions
Height
2
178
mm
(7
In).
Width
2
448
mm
(17-5/8
in).
Depth
2
508
mm
(20
in).
Cooling
Forced
alr
circulation;
no
alr
filter.
Finlsh
Construction
6-32
Tek Blue finish painted on pebble-grain
aluminum cabinet.
Aluminum
alloy
chassis,
front-panel
frame,
and
rear
support.
Plastic-laminate
front
panel.
2247A Operators
