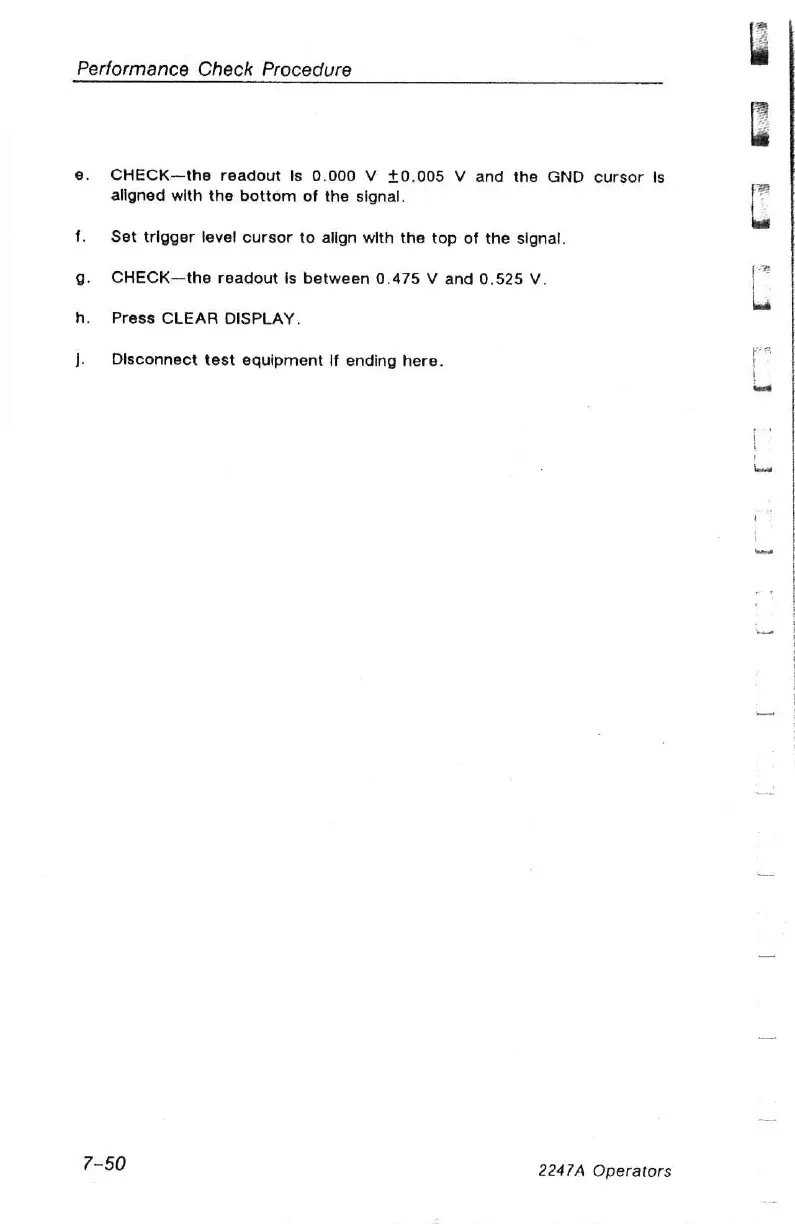

Performance
Check
Procedure
e.
CHECK—the
readout
Is
0.000
V
+0.005
V
and
the
GND
cursor
Is
aligned
with
the
bottom
of
the
signal.
f.
Set
trigger
level
cursor
to
align
with
the
top
of
the signal.
g.
CHECK—the
readout
is
between
0.475
V
and
0.525
V.
h.
Press
CLEAR
DISPLAY.
J.
Disconnect
test
equipment
If
ending
here.
7-50
2247A
Operators
