Tektronix 2247A

Operators Familiarization

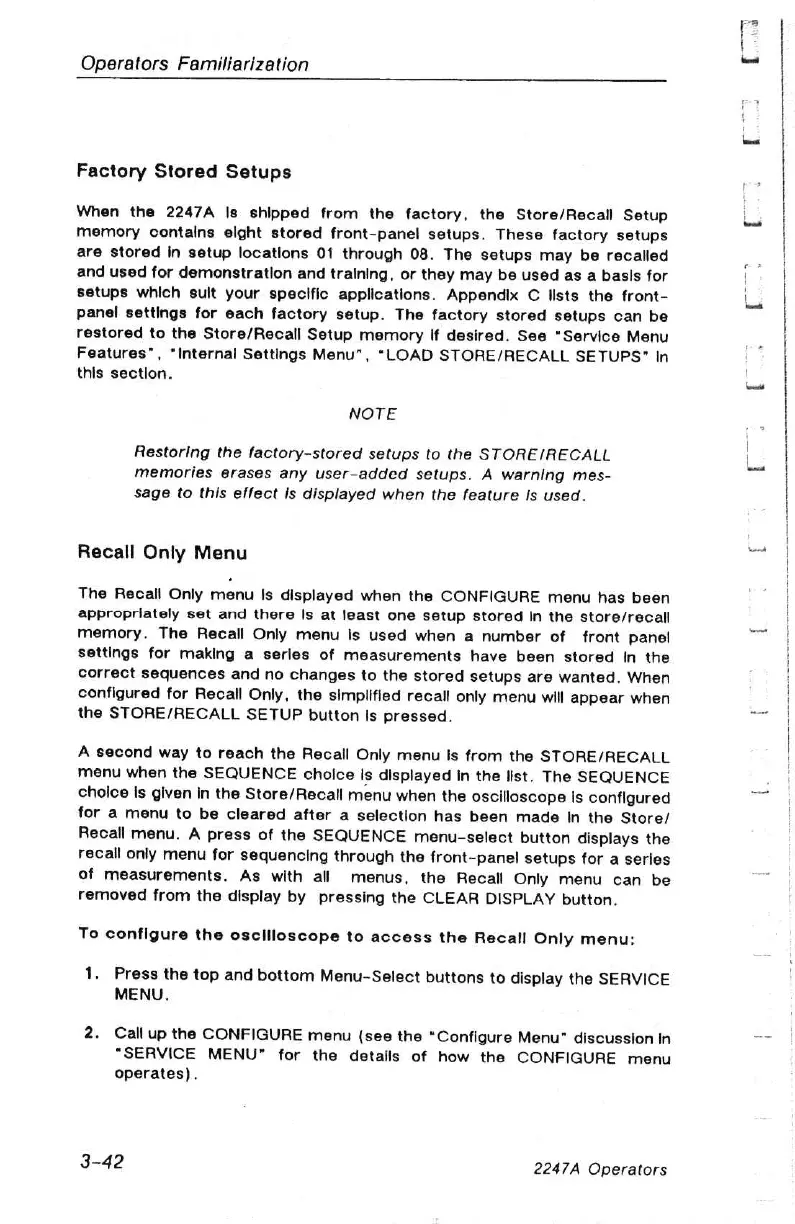

Factory Stored Setups
When
the
2247A
Is
shipped
from
the
factory,
the
Store/Recall
Setup
memory
contains
elght
stored
front-panel
setups.
These
factory
setups
are
stored
in
setup
locations
01
through
08.
The
setups
may
be
recalled
and
used
for
demonstration
and
training,
or
they
may
be
used
as
a
basis
for
setups
which
sult
your
specific
applications.
Appendix
C
Iists
the
front-
panel
settings
for
each
factory
setup.
The
factory
stored
setups
can
be
restored
to
the
Store/Recall
Setup
memory
If
desired.
See
“Service
Menu
Features”,
“Internal
Settings
Menu”,
“LOAD
STORE/RECALL
SETUPS”
In
this
section.
NOTE
Restoring the factory-stored setups to the STORE/RECALL
memories erases any user-added setups. A warning mes-
sage to this effect is displayed when the feature is used.
Recall Only Menu
The
Recall
Only
menu
Is
displayed
when
the
CONFIGURE
menu
has
been
appropriately
set
and
there
Is
at
least
one
setup
stored
In
the
store/recall
memory.
The
Recall
Only
menu
Is
used
when
a
number
of
front
panel
settings
for
making
a
series
of
measurements
have
been
stored
In
the
correct
sequences
and
no
changes
to
the
stored
setups
are
wanted.
When
configured
for
Recall
Only,
the
simplified
recall
only
menu
will
appear
when
the
STORE/RECALL
SETUP
button
Is
pressed.
A
second
way
to
reach
the
Recall
Only
menu
Is
from
the
STORE/RECALL
menu
when
the
SEQUENCE
choice
ls
displayed
in
the
Ilst.
The
SEQUENCE
cholce
Is
given
in
the
Store/Recall
menu
when
the
oscilloscope
Is
configured
for
a
menu
to
be
cleared
after
a
selection
has
been
made
In
the
Store/
Recall
menu.
A
press
of
the
SEQUENCE
menu-select
button
displays
the
recall
only
menu
for
sequencing
through
the
front-panel
setups
for
a
series
of
measurements.
As
with
all
menus,
the
Recall
Only
menu
can
be
removed
from
the
display
by
pressing
the
CLEAR
DISPLAY
button,
To
configure
the
oscilloscope
to
access
the
Recall
Only
menu:
1.
Press
the
top
and
bottom
Menu-Select
buttons
to
display
the
SERVICE
MENU.
2.
Callup
the
CONFIGURE
menu
(see
the
“Configure
Menu”
discussion
In
“SERVICE
MENU”
for
the
details
of
how
the
CONFIGURE
menu
operates).
3-42
2247A
Operators
a
[
