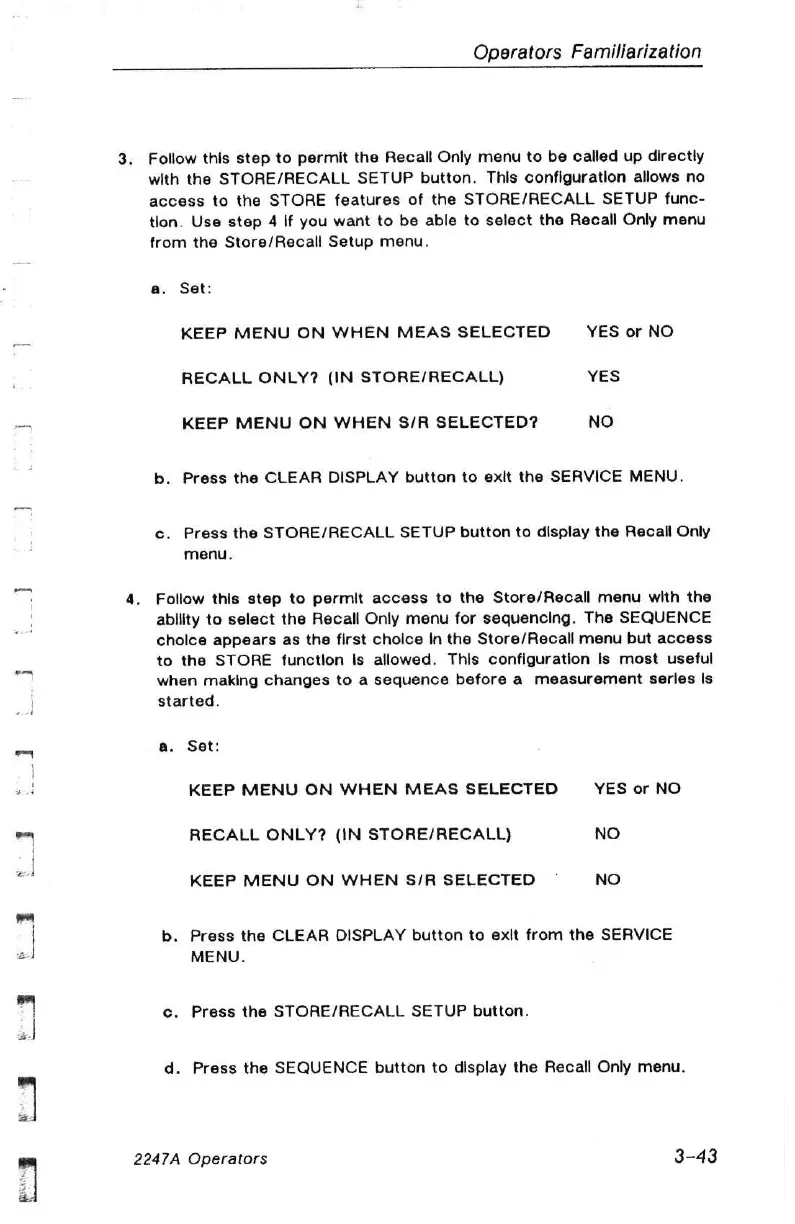

Operators Famillarization
3. Follow this step to permit the Recall Only menu to be called up directly
with the STORE/RECALL SETUP button. This configuration allows no
access to the STORE features of the STORE/RECALL SETUP func-
tlon. Use step 4 If you want to be able to select the Recall Only menu
from the Store/Recall Setup menu.
a. Set:
KEEP MENU ON WHEN MEAS SELECTED YES or NO
RECALL ONLY? (IN STORE/RECALL) YES
KEEP MENU ON WHEN S/R SELECTED? NO
b. Press the CLEAR DISPLAY button to exit the SERVICE MENU.
c. Press the STORE/RECALL SETUP button to display the Recall Only
menu.
4. Follow this step to permit access to the Store/Recall menu with the
abllity to select the Recall Only menu for sequencing. The SEQUENCE
cholce appears as the first cholce In the Store/Recall menu but access
to the STORE function Is allowed. This configuration Is most useful
when making changes to a sequence before a measurement serles Is
started.
a. Set:
KEEP MENU ON WHEN MEAS SELECTED YES or NO
RECALL ONLY? (IN STORE/RECALL) NO
KEEP MENU ON WHEN S/R SELECTED NO
b. Press the CLEAR DISPLAY button to exit from the SERVICE
MENU.
¢. Press the STORE/RECALL SETUP button.
d. Press the SEQUENCE button to display the Recall Only menu.
2247A Operators 3-43
