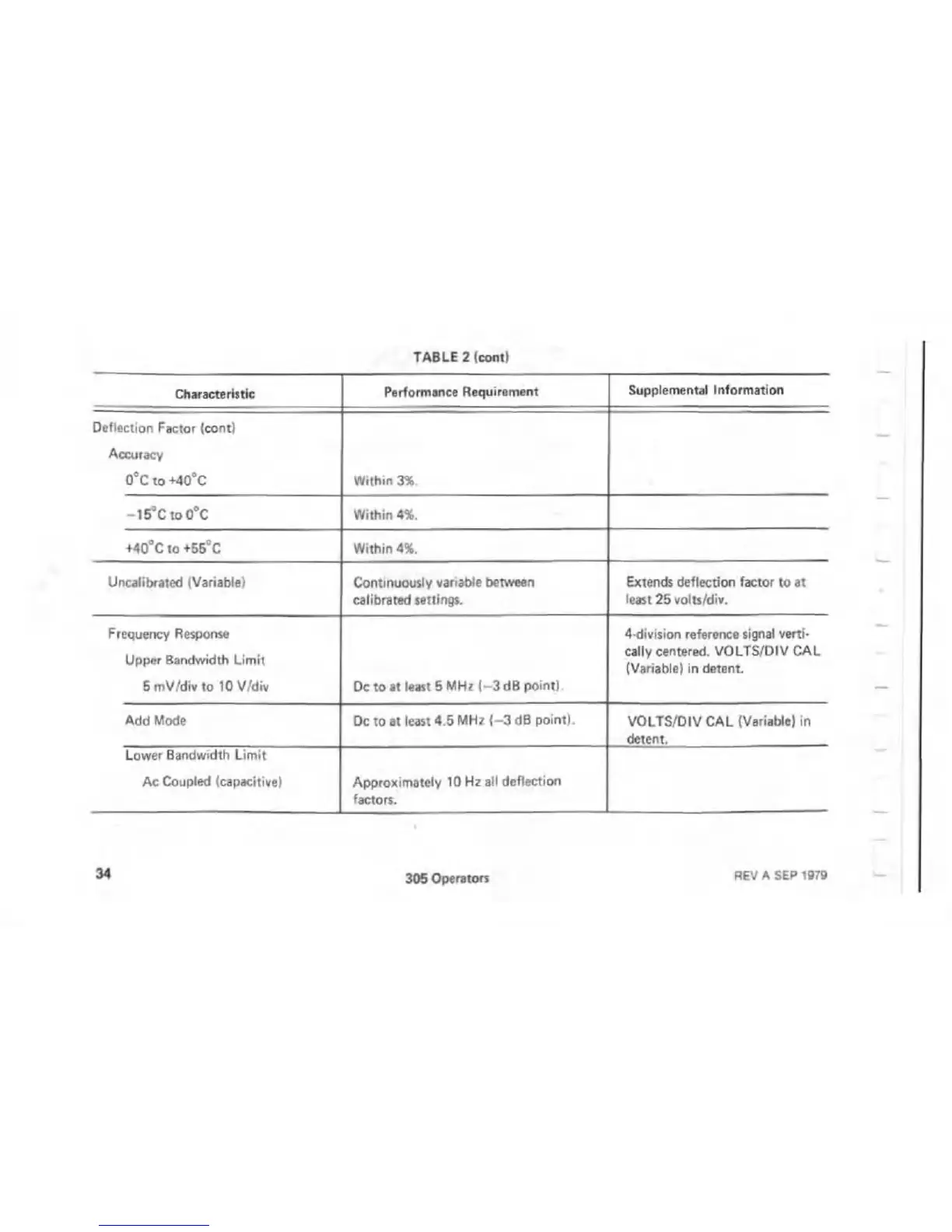

TABLE 2 (com)
Characteristic
Performance Requirement
Supplemental Information
Deflection Factor (cont)
Accuracy
0°C to +40°C
Within 3%.
-15°C to 0°C
Within 4%.
+40°C to +55°C Within 4%.
Uncalibrated (Variable) Continuously variable between
calibrated settings.
Extends deflection factor to at
least 25 volts/div.
Frequency Response
Upper Bandwidth Limit
5 mV/div to 10 V/div
Dc to at least 5 MHz (- 3 dB point)
4-division reference signal verti
cally centered. VOLTS/DIV CAL
(Variable) in detent.
Add Mode
Dc to at least 4.5 MHz (-3 dB point).
VOLTS/DIV CAL (Variable) in
detent.
Lower Bandwidth Limit
Ac Coupled (capacitive)
Approximately 10 Hz all deflection
factors.
34
305 Operators
REV A SEP 1979
