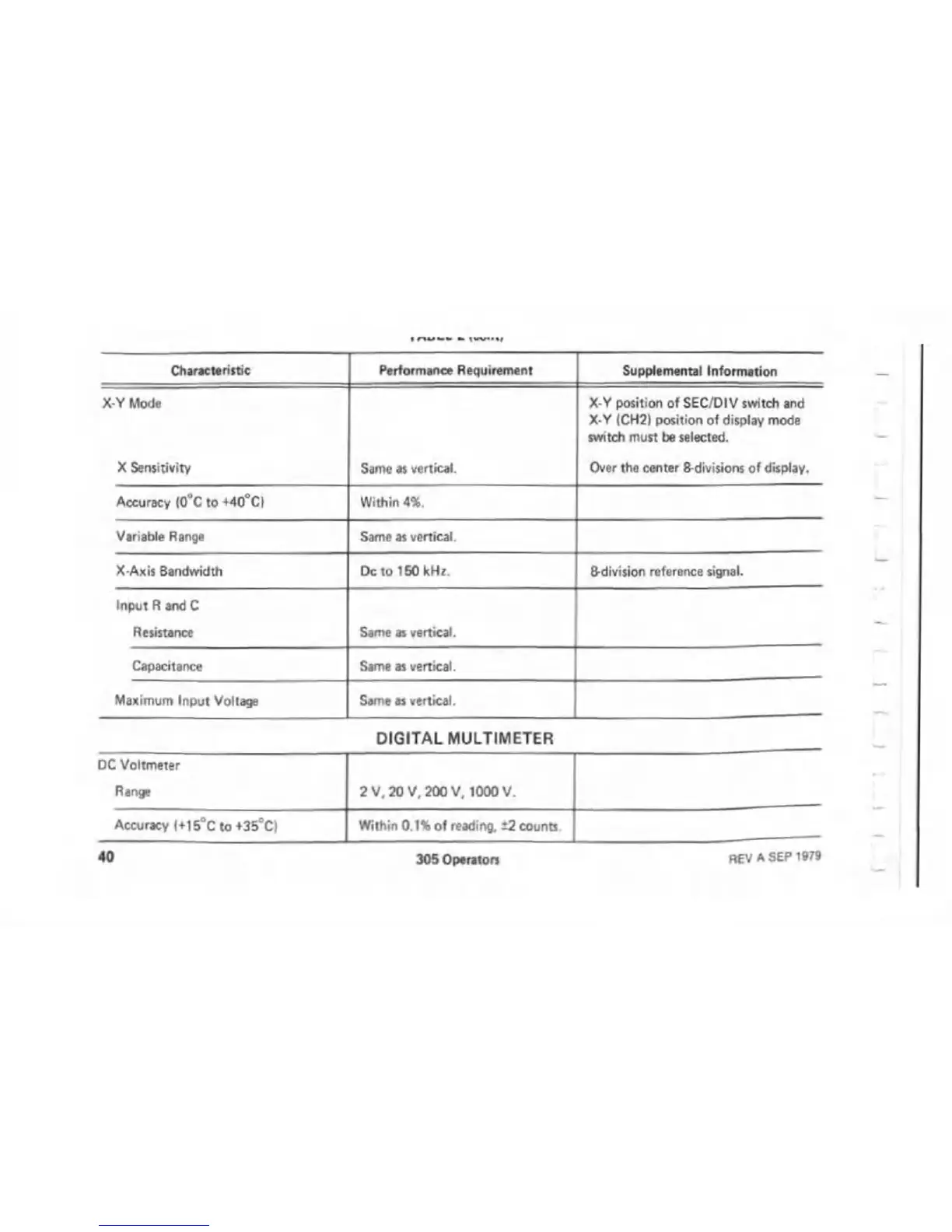

Characteristic
Performance Requirement
Supplemental Information
X-Y Mode X-Y position of SEC/DIV switch and
X-Y (CH2) position of display mode
switch must be selected.
X Sensitivity
Same as vertical.
Over the center 8-divisions of display.
Accuracy (0UC to +40°C|
Within 4%.
Variable Range Same as vertical.
X-Axis Bandwidth Dc to 150 kHz.
8-division reference signal.
Input R and C
Resistance Same as vertical.
Capacitance Same as vertical.
Maximum Input Voltage Same as vertical.
DIGITAL MULTIMETER
DC Voltmeter
Range 2 V. 20 V. 200 V, 1000 V.
Accuracy <+15°C to +35°C) Within 0.1% of reading, ±2 counts.
40
305 Operators
REV A SEP 1979
