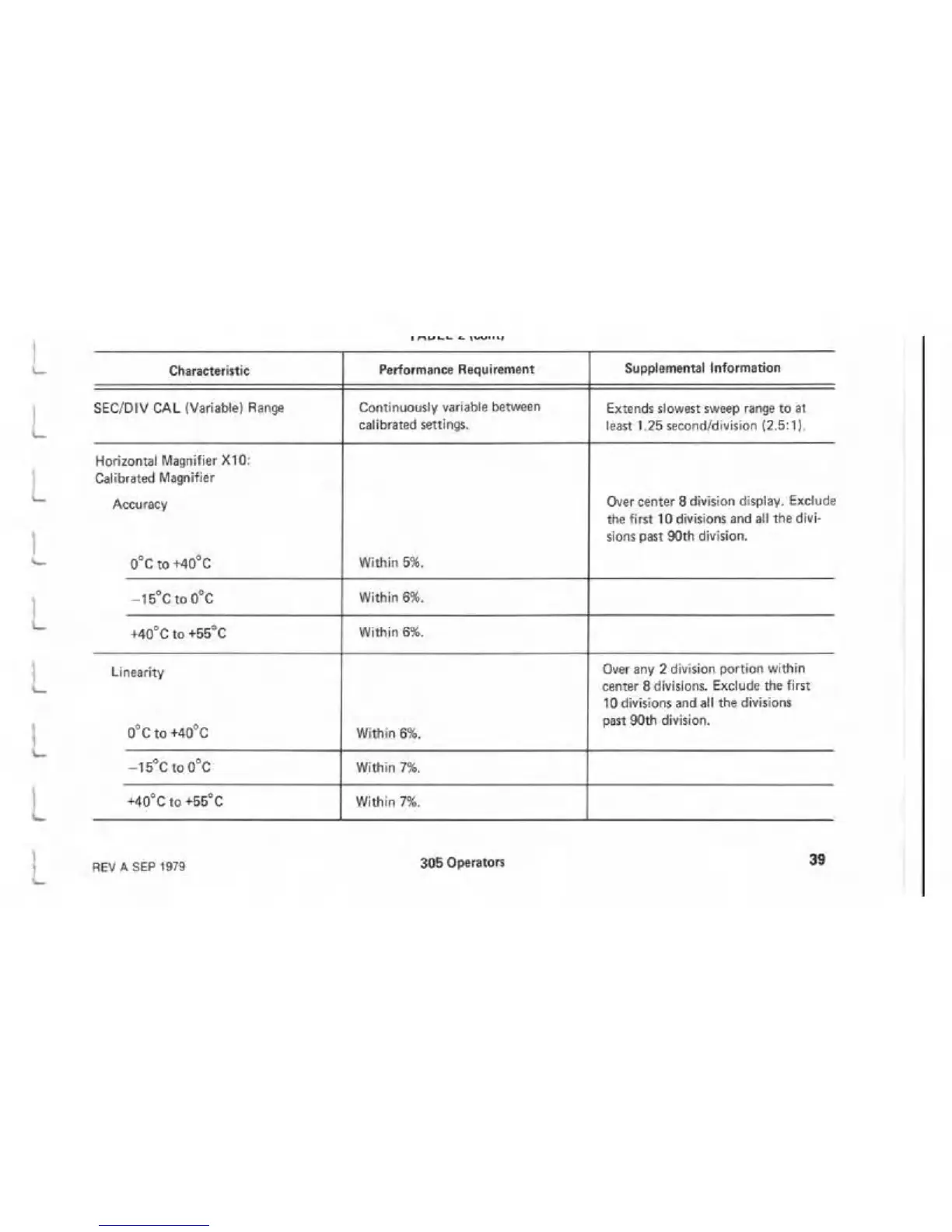

Characteristic
Performance Requirement
Supplemental Information
SEC/DIV CAL (Variable) Range
Continuously variable between
Extends slowest sweep range to at
calibrated settings.
least 1.25 second/division (2.5:1)
Horizontal Magnifier X10:
Calibrated Magnifier
Accuracy
Over center 8 division display. Exclude
the first 10 divisions and all the divi
sions past 90th division.
0°C to +40°C
Within 5%.
—15°C to 0°C
Within 6%.
+40°C to +55°C
Within 6%.
Linearity
Over any 2 division portion within
center 8 divisions. Exclude the first
10 divisions and all the divisions
past 90th division.
0°C to +40°C
Within 6%.
—15°C to 0°C Within 7%.
+40°C to +55° C
Within 7%.
