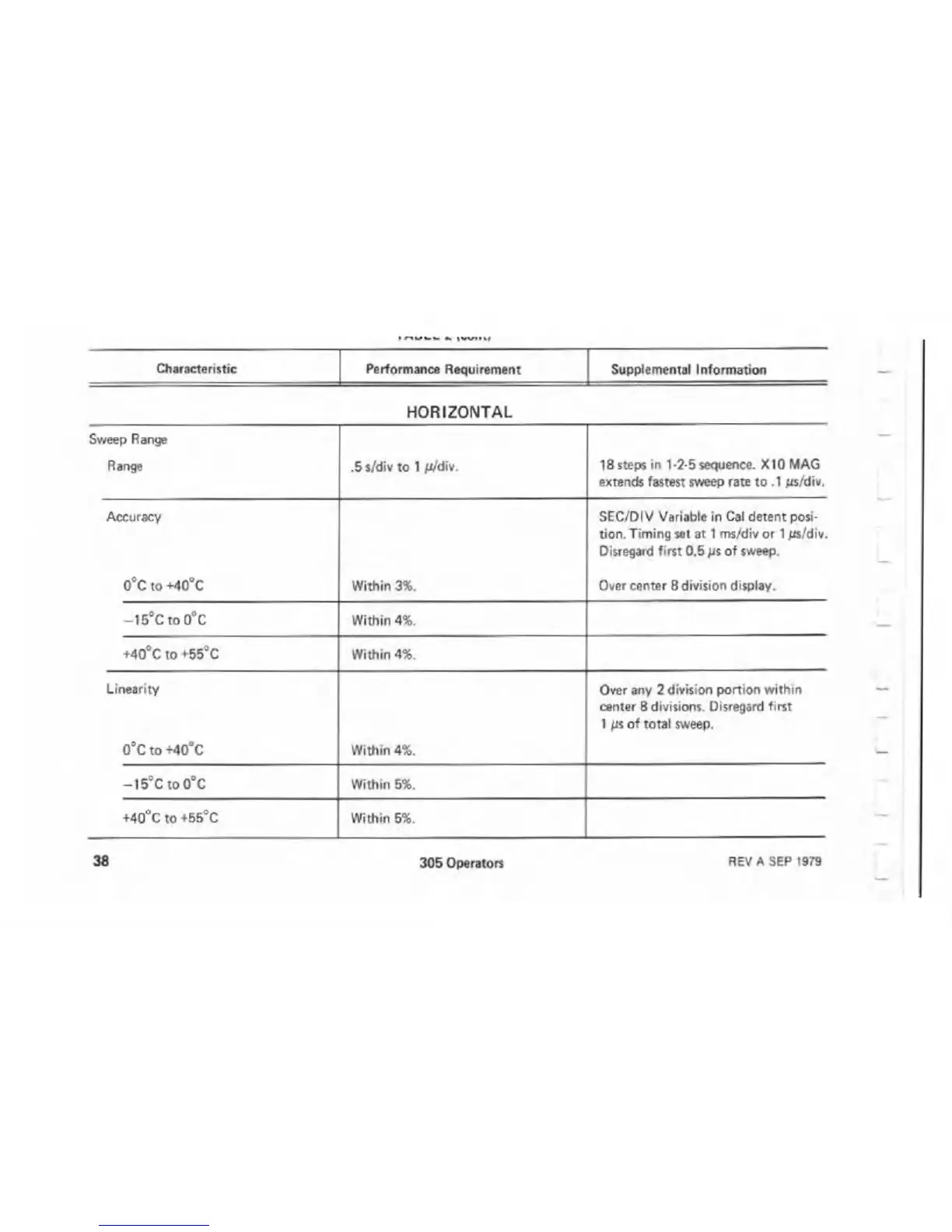

Characteristic
Supplemental Information
Performance Requirement
HORIZONTAL
Sweep Range
Range
.5 s/div to 1 \i)div.
18 steps in 1-2-5 sequence. X10 MAG
extends fastest sweep rate to . 1 ps/div.
Accuracy
SEC/DIV Variable in Cal detent posi
tion. Timing sot at 1 ms/div or 1 /is/div.
Disregard first 0.5 /js of sweep.
0°C to +40°C Within 3%.
Over center 8 division display.
-15°C to 0°C Within 4%.
+40°C to +55°C Within 4%.
Linearity Over any 2 division portion within
center 8 divisions. Disregard first
1 /is of total sweep.
O’ C to +40°C
Within 4%.
-15 °C to 0°C Within 5%.
+40°C to +55°C
Within 5%.
