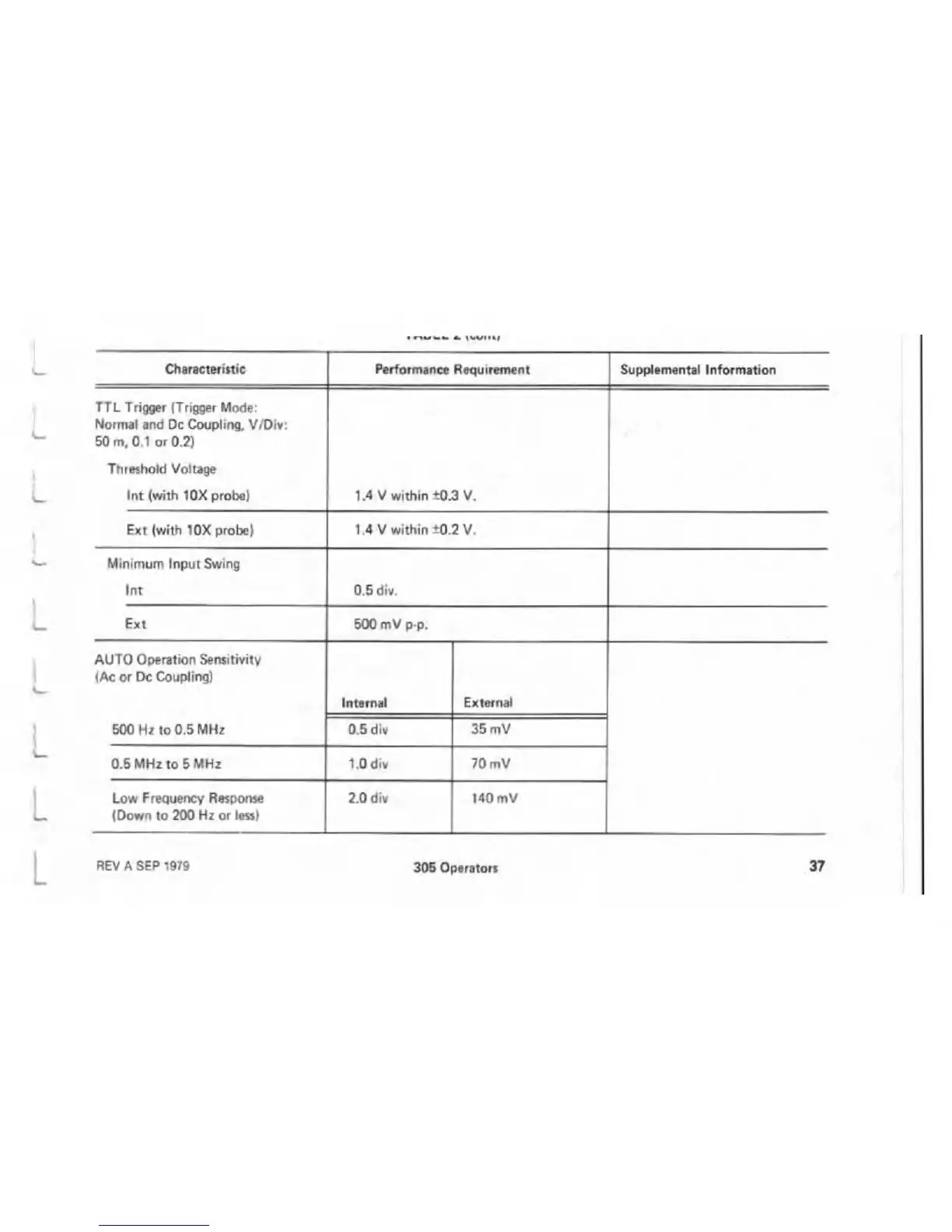

Tektronix 305 DMM

Characteristic Performance Requirement
Supplemental Information
TTL Trigger (Trigger Mode:
Normal and Dc Coupling. V/Div:
50 m, 0.1 or 0.2)
Threshold Voltage
Int (with 10X probe) 1.4 V within ±0.3 V.
Ext (with 10X probe)
1.4 V within ±0.2 V.
Minimum Input Swing
Int 0.5 div.
Ext 500 mV p p.
AUTO Operation Sensitivity
(Ac or Dc Coupling)
500 Hz to 0.5 MHz
Internal External
0.5 div 35 mV
0.5 MHz to 5 MHz
1.0 div
70 mV
Low Frequency Response
(Down to 200 Hz or less)
2.0 div 140 mV
REV A SEP 1979
305 Operators
37
