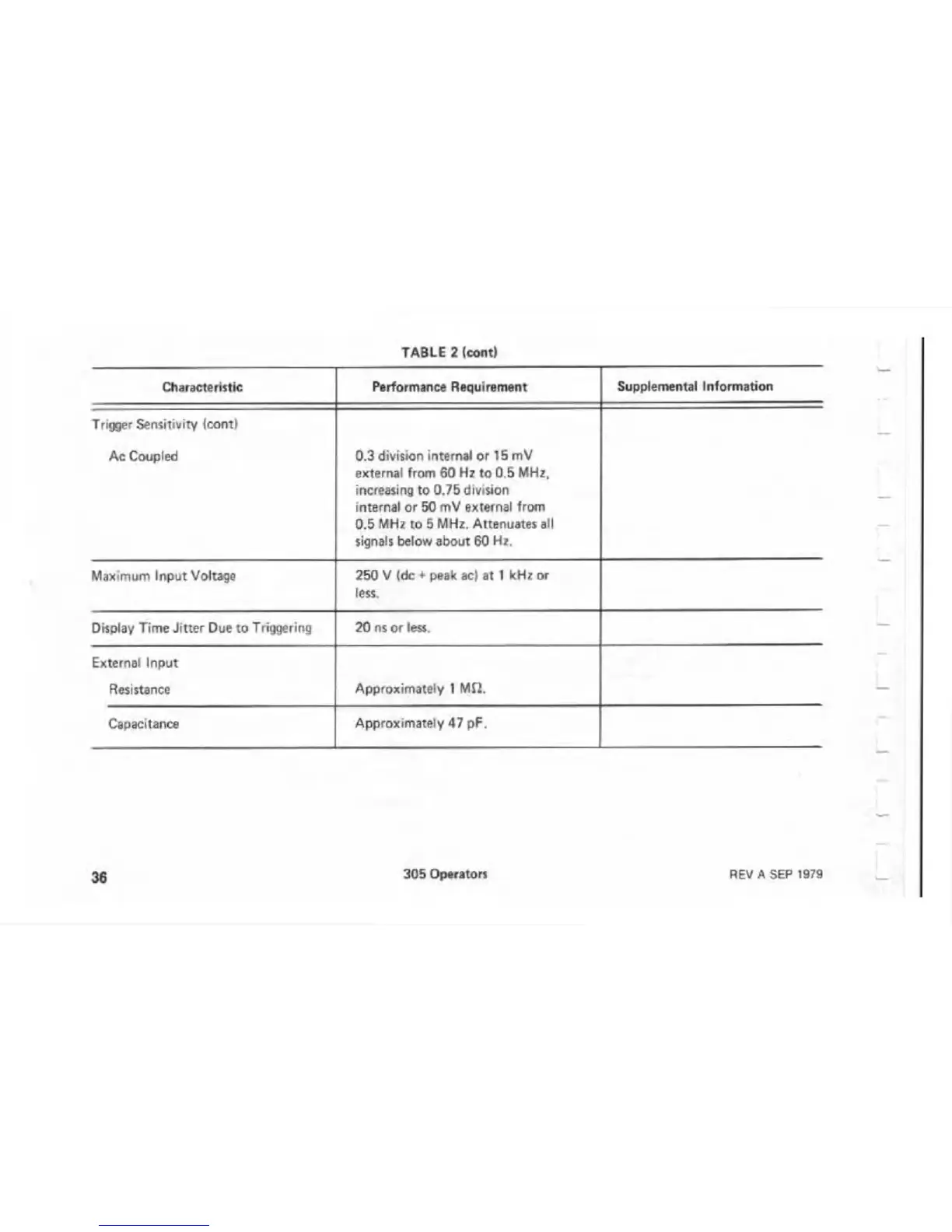

TABLE 2 (cont)
Characteristic Performance Requirement
Supplemental Information
Trigger Sensitivity Icont)
Ac Coupled
0.3 division internal or 15 mV
external from 60 Hz to 0.5 MHz,
increasing to 0.75 division
internal or 50 mV external from
0.5 MHz to 5 MHz. Attenuates all
signals below about 60 Hz.
Maximum Input Voltage
250 V (dc + peak ac) at 1 kHz or
less.
Display Time Jitter Due to Triggering
20 ns or less.
External Input
Resistance
Approximately 1 Mf2.
Capacitance
Approximately 47 pF.
36
305 Operators
REV A SEP 1979
