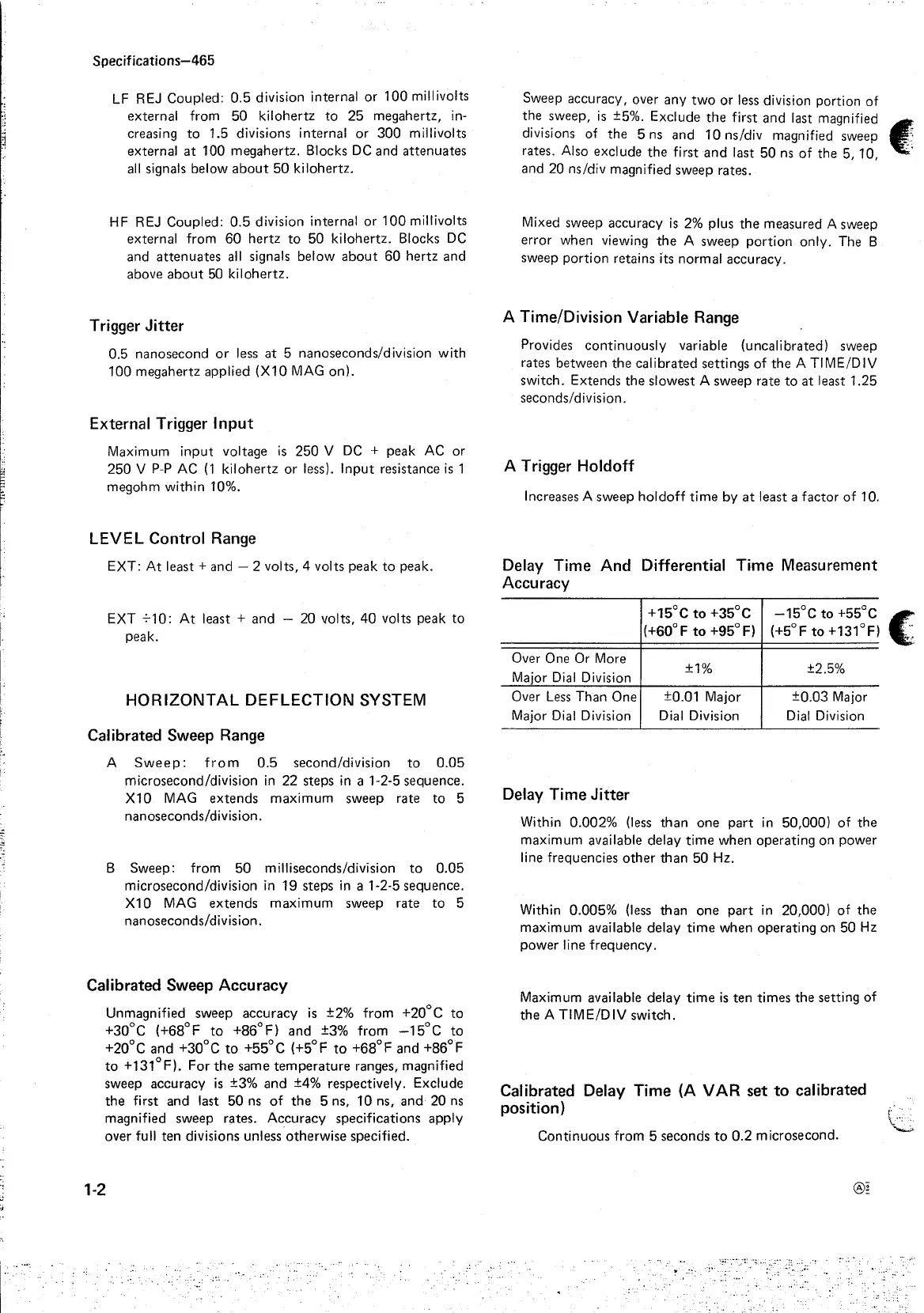

Specifications-465
LF
REJ
Coupled:
0.5
division internal
or
100
millivolts
external
from
50
kilohertz
to
25
megahertz, in-
creasing
to
1.5 divisions internal
or
300
millivolts
external
at
100
megahertz.
Blocks
DC
and
attenuates
all
signals below
about
50
kilohertz.
HF REJ
Coupled:
0.5
division internal
or
100
millivolts
external from
60
hertz
to
50
kilohertz.
Blocks
DC
and
attenuates
all
signals
below
about
60
hertz
and
above
about
50
kilohertz.
Trigger Jitter
0.5
nanosecond
or
less
at
5 nanoseconds/division
with
100
megahertz
applied
(X10
MAG
on).
External Trigger
Input
Maximum
input
voltage
is
250
V
DC
+ peak AC
or
250
V
P-P
AC
(1
kilohertz
or
less).
Input
resistance
is
1
megohm
within
10%.
LEVEL
Control
Range
EXT:
At
least+
and - 2 volts, 4 volts
peak
to
peak.
EXT
710:
At
least +
and
- 20 volts,
40
volts peak
to
peak.
HORIZONTAL
DEFLECTION
SYSTEM
Calibrated Sweep
Range
A
Sweep:
from
0.5
second/division
to
0.05
microsecond/division
in
22
steps
in
a 1-2-5
sequence.
X10
MAG
extends
maximum
sweep
rate
to
5
nanoseconds/division.
B
Sweep:
from
50
milliseconds/division
to
0.05
microsecond/division in
19
steps
in
a 1-2-5
sequence.
X10
MAG
extends
maximum
sweep
rate
to
5
nanoseconds/division.
Calibrated Sweep Accuracy
Unmagnified sweep
accuracy
is
±2%
from
+20°C
to
+30° C ( +68° F
to
+86°
F)
and
±3%
from
-15°
C
to
+20°C
and
+30°C
to
+55°C
(+5°F
to
+68°F
and
+86°F
to
+131°F).
For
the
same
temperature
ranges, magnified
sweep
accuracy
is
±3%
and
±4% respectively. Exclude
the
first
and
last
50
ns
of
the
5 ns,
10
ns,
and
20
ns
magnified sweep rates.
Accuracy
specifications
apply
over full
ten
divisions unless
otherwise
specified.
1-2
Sweep
accuracy,
over
any
two
or
less division portion
of
the
sweep,
is
±5%. Exclude
the
first
and
last magnified
divisions of
the
5 ns
and
1 O ns/div magnified sweep
rates. Also
exclude
the
first
and
last
50
ns
of
the
5,
10,
and 20 ns/div magnified sweep rates.
Mixed sweep
accuracy
is
2%
plus
the
measured A sweep
error
when
viewing
the
A
sweep
portion
only.
The B
sweep
portion
retains its
normal
accuracy.
A Time/Division Variable
Range
Provides
continuously
variable (uncalibrated) sweep
rates
between
the
calibrated
settings
of
the
A TIME/DIV
switch.
Extends
the
slowest
A
sweep
rate
to
at
least 1.25
seconds/division.
A Trigger Holdoff
Increases A sweep
holdoff
time
by
at
least a
factor
of
10.
Delay Time
And
Differential
Time
Measurement
Accuracy
+15°C
to
+35°C
-15°C
to
+55°C
(+60° F
to
+95°
F)
(+5°F
to
+131°F)
Over One Or More
Major Dial Division
±1% ±2.5%
Over
Less
Than
One
±0.01 Major
±0.03
Major
Major Dial Division Dial Division Dial Division
Delay Time Jitter
Within
0.002%
(less
than
one
part
in
50,000)
of
the
maximum
available
delay
time
when
operating
on
power
line frequencies
other
than
50
Hz.
Within
0.005%
(less
than
one
part
in
20,000)
of
the
maximum
available
delay
time
when
operating
on
50
Hz
power
line
frequency.
Maximum available
delay
time
is
ten
times
the
setting
of
the
A
TIME/DIV
switch.
Calibrated Delay
Time
(A
VAR
set
to
calibrated
position)
Continuous
from 5
seconds
to
0.2
microsecond.
•
~:
(
