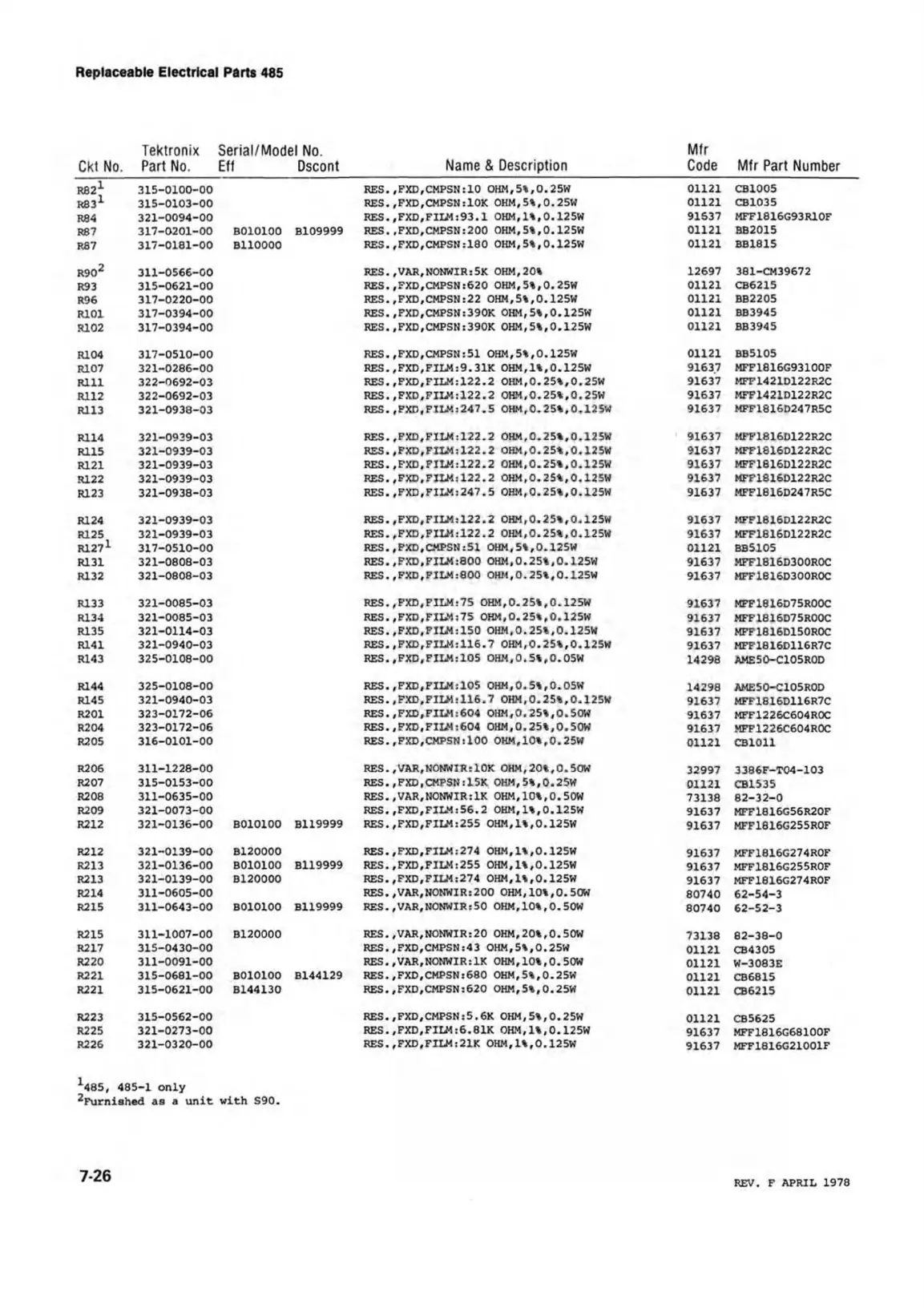

Replaceable Electrical Parts 485
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eft Dscont
Name & Description
Mfr
Code Mfr Part Number
R821
315-0100-00
RES.,FXD,CMPSN:10 OHM,5%,0.25W
01121
CB1005
R831
315-0103-00
RES.,FXD,CMPSN:1OK OHM,5%,0.25W
01121 CB1035
R84
321-0094-00
RES.,FXD,FILM:93.1 OHM,1»,0.125W
91637
MFF1816G93R10F
R87
317-0201-00
B010100
B109999
RES.,FXD,CMPSN:200 OHM,5%,0.125W
01121 BB2015
R87
317-0181-00
B110000
RES.,FXD,CMPSN:180 OHM,5%,0.125W
01121 BB1815
R902
311-0566-00
RES. ,VAR,N0NWIR:5K OHM, 20%
12697
381-CM39672
R93
315-0621-00
RES.,FXD,CMPSN:620 OHM,5%,0.25W
01121 CB6215
R96
317-0220-00
RES.,FXD,CMPSN:22 OHM,5%,0.12SW
01121 BB2205
R101
317-0394-00
RES.,FXD,CMPSN:390K OHM,5%,0.125W
01121 BB3945
R102 317-0394-00
RES.,FXD,CMPSN:390K OHM,5%,0.125W
01121 BB3945
R104
317-0510-00
RES.,FXD,CMPSN:51 OHM,5%,0.125W 01121 BB5105
R107 321-0286-00
RES.,FXD,FILM:9.31K OHM,1%,0.125W
91637 MFF1816G93100F
Rill 322-0692-03
RES.,FXD,FILM:122.2 0HM,0.25%,0.25W
91637
MFF1421D122R2C
R112 322-0692-03
RES.,FXD,FILM:122.2 OHM,0.25%,0.25W
91637
MFF1421D122R2C
R113
321-0938-03
RES.,FXD,FILM:247.5 OHM,0.25%,0.125W
91637
MFF1816D247R5C
R114
321-0929-03
RES.,FXD,FILM:122.2 OHM,0.25%,0.125W 91637 MFF1816D122R2C
R115
321-0939-03
RES.,FXD,FILM:122.2 OHM,0.25%,0.125W
91637
MFF1816D122R2C
R121
321-0939-03
RES.,FXD,FILM:122.2 OHM,0.25%,0.12SW 91637
MFF1816D122R2C
R122 321-0939-03
RES.,FXD,FILM:122.2 OHM,0.25%,0.125W 91637
MFF1816D122R2C
R123
321-0938-03
RES.,FXD,FILM:247.5 OHM,0.25%,0.125W
91637
MFF1816D247R5C
R124 321-0939-03
RES.,FXD,FILM:122.2 OHM,0.25%,0.125W
91637
MFF1816D122R2C
R125 321-0939-03
RES.,FXD,FILM:122.2 OHM,0.25%,0.125W
91637 MFF1816D122R2C
R1271 317-0510-00
RES.,FXD,CMPSN:51 OHM,5%,0.125W
01121
BB510S
R131
321-0808-03
RES.,FXD,FILM:800 OHM,0.25%,0.125W
91637 MFF1816D300R0C
R132
321-0808-03
RES.,FXD,FILM:800 OHM,0.25%,0.125W
91637
MFF1816D300R0C
R133 321-0085-03
RES.,FXD,FILM:75 OHM,0.25%,0.125W
91637
MFF1816D75R00C
R134 321-0085-03
RES.,FXD,FILM:75 OHM,0.25%,0.125W
91637 MFF1816D75R00C
R135
321-0114-03
RES.,FXD,FILM:150 OHM,0.25%,0.125W
91637 MFF1816D150R0C
R141 321-0940-03
RES.,FXD,FILM:116.7 OHM,0.25%,0.125W
91637 MFF1816D116R7C
R143 325-0108-00
RES.,FXD,FILM:105 OHM,0.5%,0.05W
14298 AME50—C105R0D
R144 325-0108-00
RES.,FXD,FILM:105 OHM,0.5%,0.05W
14298 AME50-C105R0D
R145
321-0940-03
RES.,FXD,FILM:116.7 OHM,0.25%,0.125W
91637 MFF1816D116R7C
R201
323-0172-06
RES.,FXD,FILM:604 OHM,0.25%,0.50W
91637 MFF1226C604R0C
R204
323-0172-06
RES.,FXD,FILM:604 OHM,0.25%,0.50W
91637
MFF1226C604R0C
R205
316-0101-00
RES.,FXD,CMPSN:100 OHM,10%,0.25W
01121
CB1011
R206
311-1228-00
RES. ,VAR,NONWIR:10K OHM,20%,0.50W
32997
3386F-T04-103
R207
315-0153-00
RES.,FXD,CMPSN:15K OHM,5%,0.25W
01121 CB1535
R208 311-0635-00
RES.,VAR,N0NWIR:1K OHM,10%,0.SOW
73138
82-32-0
R209 321-0073-00
RES.,FXD,FILM:56.2 OHM,1%,0.125W
91637 MFF1816G56R20F
R212 321-0136-00 B010100
B119999
RES.,FXD,FILM:255 OHM,1%,0.125W
91637
MFF1816G255R0F
R212 321-0139-00 B120000
RES.,FXD,FILM:274 OHM,1%,0.125W
91637
MFF1816G274R0F
R213
321-0136-00
B010100 B119999
RES.,FXD,FILM:255 OHM,1%,0.125W
91637
MFF1816G255R0F
R213 321-0139-00
B120000
RES.,FXD,FILM:274 OHM,1%,0.125W
91637
MFF1816G274R0F
R214 311-0605-00
RES.,VAR,NONWIR:200 OHM,10%,0.50W
80740 62-54-3
R215 311-0643-00 B010100
B119999
RES. ,VAR,NONWIR:50 OHM,10%,0.50W
80740
62-52-3
R215 311-1007-00 B120000
RES.,VAR,NONWIR:20 OHM,20%,0.50W
73138 82-38-0
R217 315-0430-00
RES.,FXD,CMPSN:43 OHM,5%,0.25W
01121
CB4305
R220 311-0091-00
RES.,VAR,N0NWIR:1K OHM,10%,0.50W
01121
W-3083E
R221 315-0681-00 B010100
B144129
RES.,FXD,CMPSN:680 OHM,5%,0.25W
01121 CB6815
R221 315-0621-00
B144130
RES.,FXD,CMPSN:620 OHM,5%,0.25W
01121
CB6215
R223
315-0562-00
RES.,FXD,CMPSN:5.6K OHM,5%,0.25W
01121 CB5625
R225 321-0273-00
RES.,FXD,FILM:6.81K OHM,1%,0.125W
91637 MFF1816G68100F
R226
321-0320-00
RES.,FXD,FILM:21K OHM,1%,0.125W
91637
MFF1816G21001F
*485, 485-1 only
2Furnished as a unit with S90.
7-26
REV. F APRIL 1978
