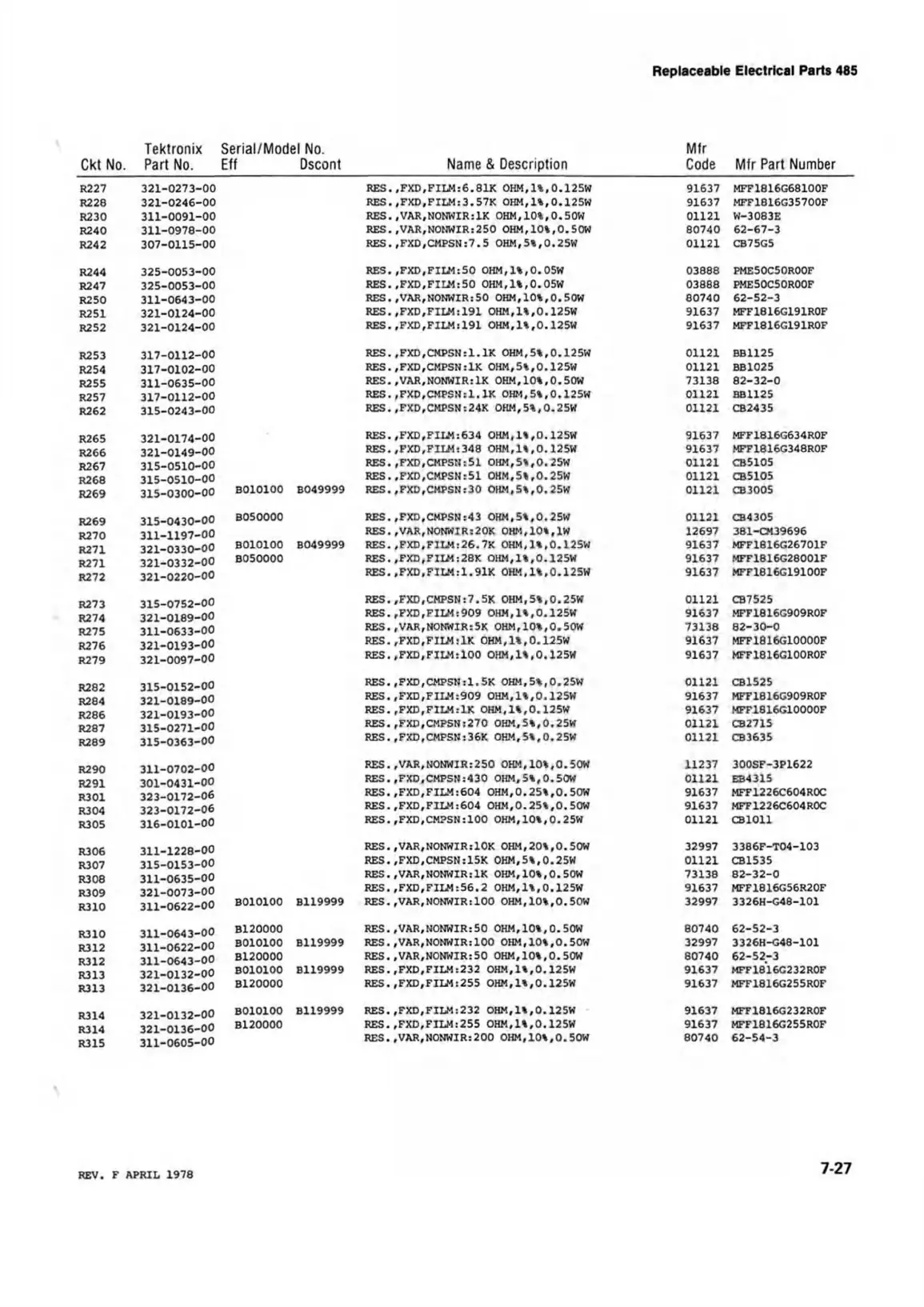

Replaceable Electrical Parts 485
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont Name & Description
Mfr
Code Mfr Part Number
R227
321-0273-00
RES.,FXD,FILM:6.81K OHM,1%,0.12SW 91637
MFF1816G68100F
R228
321-0246-00
RES.,FXD,FILM:3.57K OHM,1%,0.125W
91637 MFF1816G35700F
R230
311-0091-00
RES.,VAR,N0NWIR:1K OHM,10%,0.50W 01121
W-3083E
R240
311-0978-00
RES.,VAR,NONWIR:250 OHM,10%,0.50W
80740 62-67-3
R242
307-0115-00
RES.,FXD,CMPSN:7.5 OHM,5%,0.25W
01121
CB75G5
R244
325-0053-00
RES.,FXD,FILM:50 OHM,1%,0.05W 03888
PME50C50R00F
R247
325-0053-00
RES.,FXD,FILM:50 OHM,1%,0.05W
03888
PME50C50R00F
R250
311-0643-00
RES.,VAR,N0NWIR:50 OHM,10%,0.SOW
80740 62-52-3
R251
321-0124-00
RES.,FXD,FILM:191 OHM,1%,0.125W
91637
MFF1816G191R0F
R252
321-0124-00
RES.,FXD,FILM:191 OHM,1%,0.125W 91637
MFF1816G191R0F
R253
317-0112-00
RES.,FXD,CMPSN:1.IK OHM,5%,0.125W
01121
BB1125
R254
317-0102-00
RES.,FXD,CMPSN:IK OHM,5%,0.125W 01121 BB1025
R255
311-0635-00
RES. ,VAR,N0NWIR:1K OHM,10%,0.50W
73138 82-32-0
R257
317-0112-00
RES.,FXD,CMPSN:1.IK OHM,5%,0.125W
01121 BB1125
R262
315-0243-00
RES.,FXD,CMPSN:24K OHM,5%,0.25W
01121 CB2435
R265
321-0174-00
RES.,FXD,FILM:634 OHM,1%,0.125W 91637 MFF1816G634R0F
R266
321-0149-00
RES.,FXD,FILM:348 OHM,1%,0.125W
91637
MFF1816G348R0F
R267
315-0510-00
RES.,FXD,CMPSN:51 OHM,5%,0.25W
01121
CB5105
R268
315-0510-00
RES.,FXD,CMPSN:51 OHM,5%,0.25W
01121
CB5105
R269
315-0300-00
B010100
B049999
RES.,FXD,CMPSN:30 OHM,5%,0.25W
01121 CB3005
R269
315-0430-00
B050000
RES.,FXD,CMPSN:43 OHM,5%,0.25W
01121
CB4305
R270
311-1197-00
RES.,VAR,NONWIR:20K OHM,10%,1W 12697
381-CM39696
R271
321-O33O-00
B010100
B049999
RES.,FXD,FILM:26.7K OHM,1%,0.125W 91637 MFF1816G26701F
R271
321-O332-00
B050000
RES.,FXD,FILM:28K OHM,1»,0.125W
91637
MFF1816G28001F
R272
321-0220-00
RES.,FXD,FILM:1.91K OHM,1%,0.125W 91637 MFF1816G19100F
R77T
316-0752-00
RES.,FXD,CMPSN:7.5K OHM,5%,0.25W
01121 CB7525
R274
321-0189-00
RES.,FXD,FILM:909 OHM,1%,0.125W
91637
MFF1816G909ROF
R275
311—0633—00
RES.,VAR,N0NWIR:5K OHM,10%,0.SOW
73138 82-30-0
R276
321-0193-00
RES.,FXD,FILM:1K OHM,1%,0.125W
91637
MFF1816G10000F
R279
321-0097-00
RES.,FXD,FILM:100 OHM,1%,0.125W 91637
MFF1816G100R0F
R282
315-0152-00
RES.,FXD,CMPSN:1.5K OHM,5%,0.25W
01121 CB1525
R284
321-0189-00
RES.,FXD,FILM:909 OHM,1%,0.125W 91637
MFF1816G909R0F
R286
321-0193-00
RES.,FXD,FILM:1K OHM,1%,0.125W 91637
MFF1816G10000F
R287
315-0271-00
RES.,FXD,CMPSN:270 OHM,5%,0.25W
01121
CB2715
R289
315-0363-00
RES.,FXD,CMPSN:36K OHM,5%,0.25W
01121
CB3635
R290
311-0702-00
RES.,VAR,NONWIR:250 OHM,10%,0.50W 11237 300SF-3P1622
R291
301—0431—00
RES.,FXD,CMPSN:430 OHM,5%,0.50W
01121 EB4315
R^Ol
323-0172-06
RES.,FXD,FILM:604 OHM,0.25%,0.50W 91637 MFF1226C604R0C
R304
323-0172-06
RES.,FXD,FILM:604 OHM,0.25%,0.50W 91637 MFF1226C604R0C
R305
316-0101-00
RES.,FXD,CMPSN:100 OHM,10%,0.25W
01121 CB1011
R306
311—1228-00
RES.,VAR,N0NWIR:10K OHM,20%,0.SOW
32997 3386F-T04-103
R307
315-0153-00
RES.,FXD,CMPSN:15K OHM,5%,0.25W
01121
CB1535
Rinft
311—0635—00
RES.,VAR,N0NWIR:1K OHM,10%,0.50W
73138
82-32-0
R309
321-0073—00
RES.,FXD,FILM:56.2 OHM,1%,0.125W 91637 MFF1816G56R20F
R310
311-0622-00
B010100
B119999
RES.,VAR,NONWIR:100 OHM,10%,0.SOW 32997 3326H-G48-101
R310
311-0643-00
B120000
RES.,VAR,NONWIR:50 OHM,10%,0.50W
80740 62-52-3
R312
311-0622-00
B010100 B119999
RES.,VAR,NONWIR:100 OHM,10%,0.SOW 32997
3326H-G48-101
R^l 2
311-0643—00
B120000
RES.,VAR,NONWIR:50 OHM,10%,0.50W
80740 62-52-3
R91 ** 321-0132-00
B010100
B119999
RES.,FXD,FILM:232 OHM,1%,0.125W
91637 MFF1816G232R0F
R313
321-0136-00
B120000
RES.,FXD,FILM:255 OHM,1%,0.125W
91637
MFF1816G255R0F
321-0132-00
B010100 B119999
RES.,FXD,FILM:232 OHM,1%,0.125W
91637 MFF1816G232R0F
321-0136-00
B120000
RES.,FXD,FILM:255 OHM,1%,0.125W
91637 MFF1816G255R0F
R315
311-0605-00
RES.,VAR,NONWIR:200 OHM,10%,0.50W
80740 62-54-3
REV. F APR IL 1978
7-27
