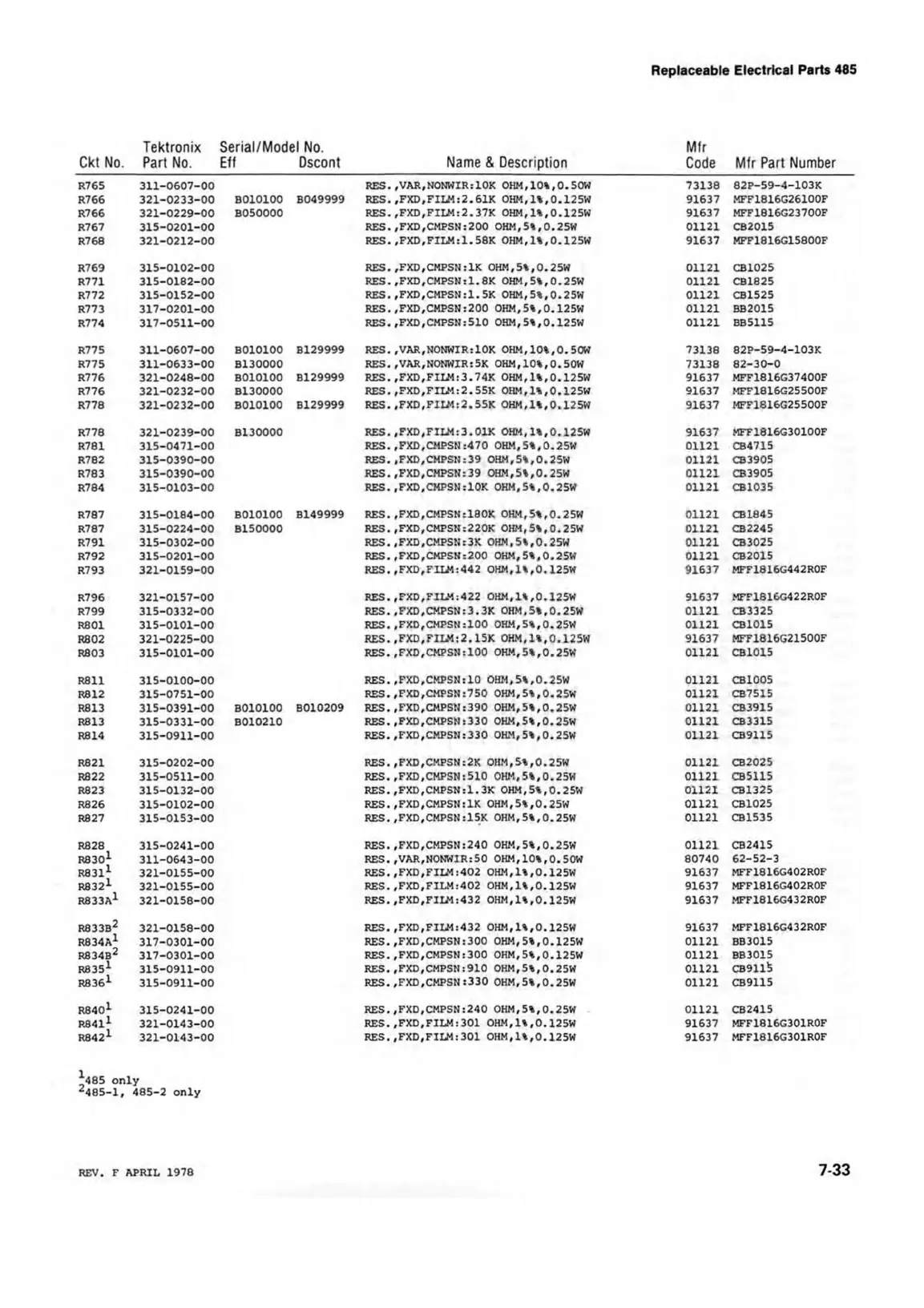

Tektronix 485 - Page 107

Replaceable Electrical Parts 485
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont
Name & Description
Mfr
Code
Mfr Part Number
R765 311-0607-00
RES. ,VAR,NONWIR:10K OHM,10%,0.50W
73138
82P-59-4-103K
R766 321-0233-00
B010100 B049999 RES.,FXD,FILM:2.61K OHM,1%,0.125W 91637
MFF1816G26100F
R766 321-0229-00
B050000
RES.,FXD,FILM:2.37K OHM,1%,0.125W
91637 MFF1816G23700F
R767
315-0201-00
RES.,FXD,CMPSN:200 OHM,5%,0.25W 01121 CB2015
R768 321-0212-00
RES.,FXD,FILM:1.58K OHM,1%,0.125W 91637
MFF1816G15800F
R769
315-0102-00
RES.,FXD,CMPSN:1K OHM,5%,0.25W
01121
CB1025
R771 315-0182-00
RES.,FXD,CMPSN:1.8K OHM,5%,0.25W
01121 CB1825
R772
315-0152-00
RES.,FXD,CMPSN:1.5K OHM,5%,0.25W
01121
CB1525
R773 317-0201-00
RES.,FXD,CMPSN:200 OHM,5»,0.125W 01121 BB2015
R774
317-0511-00
RES. ,FXD,CMPSN:510 OHM,5%,0.125W
01121 BB5115
R775
311-0607-00
B010100 B129999 RES.,VAR,NONWIR:10K OHM,10%,0.50W
73138
82P-59-4-103K
R775
311-0633-00 B130000
RES.,VAR,N0NWIR:5K OHM,10%,0.50W
73138 82-30-0
R776 321-0248-00
B010100 B129999 RES.,FXD,FILM:3.74K OHM,1%,0.125W 91637
MFF1816G37400F
R776 321-0232-00
B130000 RES.,FXD,FILM:2.55K OHM,1%,0.125W 91637
MFF1816G2S500F
R778 321-0232-00
B010100 B129999 RES.,FXD,FILM:2.55K OHM,1%,0.125W 91637
MFF1816G25500F
R778 321-0239-00
B130000 RES.,FXD,FILM:3.01K OHM,1%,0.125W 91637
MFF1816G30100F
R781 315-0471-00
RES.,FXD,CMPSN:470 OHM,5%,0.25W
01121
CB4715
R782 315-0390-00
RES.,FXD,CMPSN:39 OHM,5%,0.25W
01121
CB3905
R783
315-0390-00
RES.,FXD,CMPSN:39 OHM,5%,0.25W 01121 CB3905
R784 315-0103-00
RES.,FXD,CMPSN:10K OHM,5%,0.25W
01121 CB1035
R787
315-0184-00
B010100 B149999
RES.,FXD,CMPSN:180K OHM,5%,0.25W
01121
CB1845
R787 315-0224-00 B150000
RES.,FXD,CMPSN:220K OHM,5%,0.25W
01121 CB2245
R791 315-0302-00
RES.,FXD,CMPSN:3K OHM,5%,0.25W 01121 CB3025
R792 315-0201-00
RES.,FXD,CMPSN:200 OHM,5*,0.25W
01121
CB2015
R793 321-0159-00
RES.,FXD,FILM:442 OHM,1%,0.125W 91637
MFF1816G442R0F
R796 321-0157-00
RES.,FXD,FILM:422 OHM,1%,0.125W
91637
MFF1816G422R0F
R799
315-0332-00 RES.,FXD,CMPSN:3.3K OHM,5%,0.25W 01121
CB3325
R801
315-0101-00
RES.,FXD,CMPSN:100 OHM,5»,0.25W 01121
CB1015
R802 321-0225-00
RES.,FXD,FILM:2.15K OHM,1%,0.125W 91637
MFF1816G21500F
R803
315-0101-00
RES.,FXD,CMPSN:100 OHM,5%,0.25W 01121
CB1015
R811
315-0100-00
RES.,FXD,CMPSN:10 OHM,5*,0.25W 01121
CB1005
R812 315-0751-00
RES.,FXD,CMPSN:750 OHM,5»,0.25W 01121 CB7515
R813 315-0391-00
B010100
B010209
RES.,FXD,CMPSN:390 OHM,5»,0.25W 01121
CB3915
R813 315-0331-00
B010210 RES.,FXD,CMPSN:330 OHM,5»,0.25W 01121
CB3315
R814
315-0911-00
RES.,FXD,CMPSN:330 OHM,5*,0.25W 01121 CB9115
R821 315-0202-00
RES.,FXD,CMPSN:2K OHM,S»,0.25W 01121
CB2025
R822
315-0511-00
RES.,FXD,CMPSN:510 OHM,5%,0.25W 01121
CB5115
R823 315-0132-00
RES.,FXD,CMPSN:1.3K OHM,5%,0.25W
01121
CB1325
R826
315-0102-00
RES.,FXD,CMPSN:IK OHM,5%,0.25W
01121 CB1025
R827
315-0153-00
RES.,FXD,CMPSN:15K OHM,5»,0.25W 01121
CB1535
R828 315-0241-00
RES.,FXD,CMPSN:240 OHM,5%,0.25W
01121 CB2415
R8301 311-0643-00
RES.,VAR,NONWIR:50 OHM,10%,0.50W
80740
62-52-3
R8311
321-0155-00
RES.,FXD,FILM:402 OHM,1%,0.125W 91637
MFF1816G402R0F
R8321
321-0155-00
RES.,FXD,FILM:402 OHM,1%,0.125W 91637
MFF1816G402R0F
R833A1
321-0158-00
RES.,FXD,FILM:432 OHM,1»,0.125W 91637
MFF1816G432R0F
R833B2 321-0158-00
RES.,FXD,FILM:432 OHM,1%,0.125W
91637
MFF1816G432R0F
R834A1
317-0301-00
RES.,FXD,CMPSN:300 OHM,5%,0.125W
01121
BB3015
R834B2 317-0301-00
RES.,FXD,CMPSN:300 OHM,5%,0.125W
01121
BB3015
R8351 315-0911-00
RES.,FXD,CMPSN:910 OHM,5»,0.25W
01121
CB911S
R8361
315-0911-00
RES.,FXD,CMPSN :330 OHM,5%,0.25W
01121
CB9115
R8401
315-0241-00
RES.,FXD,CMPSN:240 OHM,5%,0.25W
01121
CB2415
R8411
321-0143-00
RES.,FXD,FILM:301 OHM,1%,0.125W
91637
MFF1816G301ROF
R8421
321-0143-00
RES.,FXD,FILM:301 OHM,l%,0.125W
91637
MFF1816G301R0F
^485 only
2485-l, 485-2 only
REV. F APRIL 1978 7-33
