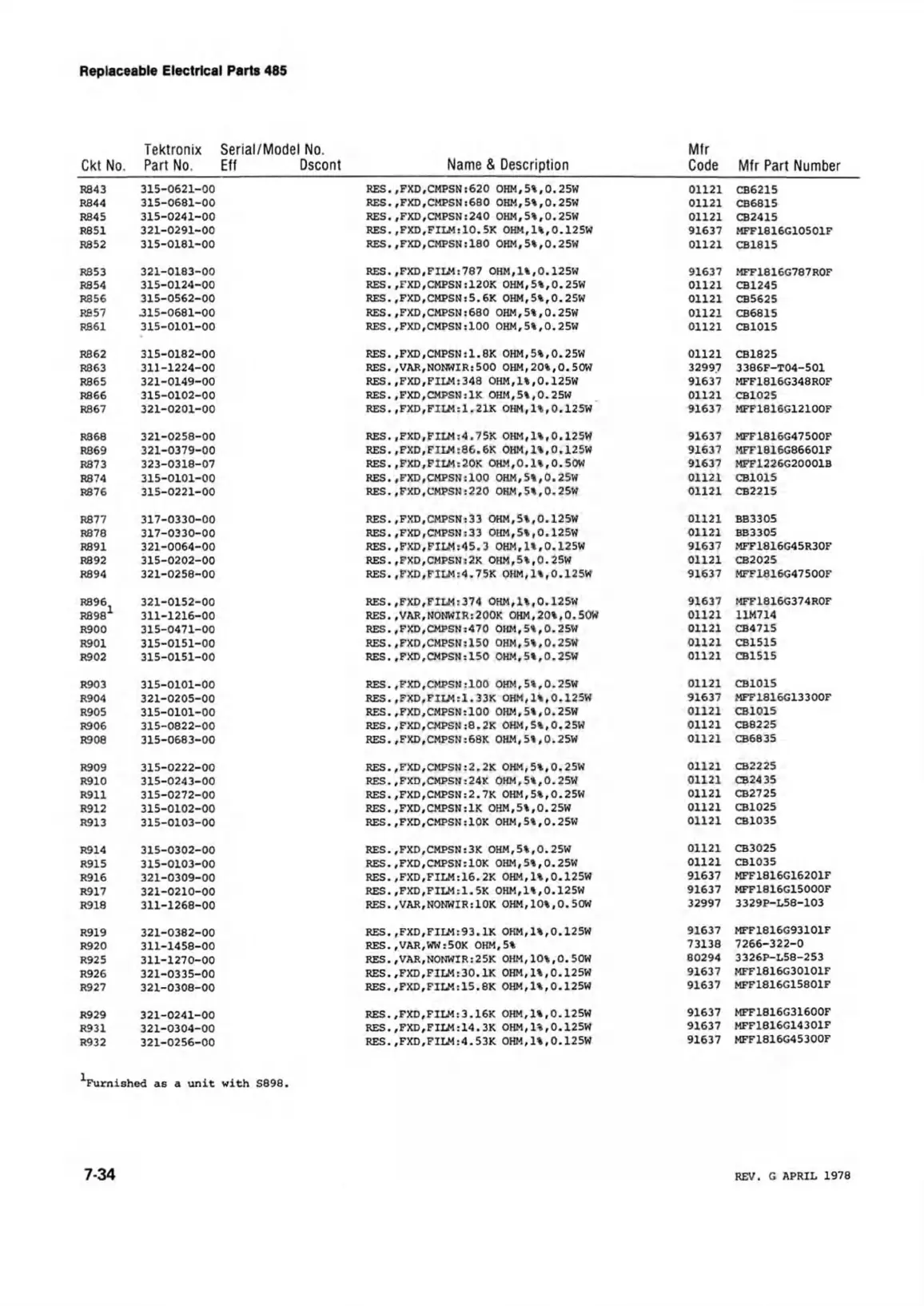

Replaceable Electrical Parts 485
Ckt No.
Tektronix Serial/Model No.
Part No. Eff Dscont
Name & Description
Mfr
Code Mfr Part Number
R843 315-0621-00
RES.,FXD,CMPSN:620 OHM,5%,0.25W
01121
CB6215
R844 315-0681-00
RES.,FXD,CMPSN:680 OHM,5%,0.25W
01121 CB6815
R845
315-0241-00
RES.,FXD,CMPSNi240 OHM,5%,0.25W
01121
CB2415
R851 321-0291-00
RES.,FXD,FILM:10.5K OHM,1%,0.125W
91637 MFF1816G10501F
R852 315-0181-00
RES.,FXD,CMPSN:180 OHM,5%,0.25W
01121 CB1815
R853
321-0183-00
RES.,FXD,FILM:787 OHM,1%,0.125W
91637
MFF1816G787R0F
R854
315-0124-00
RES.,FXD,CMPSN:120K OHM,5%,0.25W
01121 CB1245
R856 315-0562-00
RES.,FXD,CMPSN:5.6K OHM,5%,0.25W
01121
CB5625
RB57 315-0681-00
RES.,FXD,CMPSN:680 OHM,5%,0.25W
01121 CB6815
R861 315-0101-00
RES.,FXD,CMPSN:100 OHM,5%,0.25W
01121 CB1015
R862
315-0182-00
RES.,FXD,CMPSN:1.8K OHM,5%,0.25W
01121 CB1825
R863
311-1224-00
RES.,VAR,NONWIR:500 OHM,20%,0.5GW
32997
3386F-T04-501
R865 321-0149-00
RES.,FXD,FILM:348 OHM,1%,0.125W
91637 MFF1816G348R0F
R866 315-0102-00
RES.,FXD,CMPSN:1K OHM,5%,0.25W 01121
CB1025
R867
321-0201-00
RES.,FXD,FILM:1.21K OHM,1%,0.125W 91637 MFF1816G12100F
R868
321-0258-00
RES.,FXD,FILM:4.75K OHM,1%,0.125W 91637 MFF1816G47500F
R869
321-0379-00
RES.,FXD,FILM:86.6K OHM,1%,0.125W 91637
MFF1816G86601F
R873
323-0318-07
RES.,FXD,FILM:20K OHM,0.1%,0.50W 91637 MFF1226G20001B
R874 315-0101-00
RES.,FXD,CMPSN:100 OHM,5%,0.25W 01121
CB1015
R876 315-0221-00
RES.,FXD,CMPSN:220 OHM,5%,0.25W
01121
CB2215
R877
317-0330-00
RES.,FXD,CMPSNs33 OHM,5%,0.125W 01121
BB3305
R878 317-0330-00
RES.,FXD,CMPSN:33 OHM,5%,0.125W 01121 BB3305
R891 321-0064-00
RES.,FXD,FILM:45.3 OHM,1%,0.125W
91637 MFF1816G45R30F
R892
315-0202-00
RES.,FXD,CMPSN:2K OHM,5%,0.25W 01121
CB2025
R894
321-0258-00
RES.,FXD,FILM:4.75K OHM,1%,0.125W 91637 MFF1816G47500F
R896
321-0152-00
RES.,FXD,FILM:374 OHM,1%,0.125W
91637
MFF1816G374R0F
R8981
311-1216-00
RES. ,VAR,NONWIR:200K OHM, 20%,0. 50W
01121
11M714
R900
315-0471-00
RES.,FXD,CMPSN:470 OHM,S%,0.25W
01121 CB4715
R901 315-0151-00
RES.,FXD,CMPSN:150 OHM,5%,0.25W
01121 CB1515
R902
315-0151-00
RES.,FXD,CMPSN:150 OHM,5%,0.25W
01121
CB1515
R903
315-0101-00
RES.,FXD,CMPSN:100 OHM,5%,0.25W
01121 CB1015
R904
321-0205-00
RES.,FXD,FILM:1.33K OHM,1%,0.125W
91637
MFF1816G13300F
R905
315-0101-00
RES.,FXD,CMPSN:100 OHM,5%,0.25W
01121
CB1015
R906
315-0822-00
RES.,FXD,CMPSN:8.2K OHM,5%,0.25W
01121 CB8225
R908
315-0683-00
RES.,FXD,CMPSN:68K OHM,5%,0.25W
01121
CB6835
R909 315-0222-00
RES.,FXD,CMPSN:2.2K OHM,5%,0.25W
01121
C32225
R910
315-0243-00
RES.,FXD,CMPSN:24K OHM,5%,0.25W
01121 CB2435
R911
315-0272-00
RES.,FXD,CMPSN:2.7K OHM,5%,0.25W
01121
C32725
R912
315-0102-00
RES.,FXD,CMPSN:lK 0HM,5%,0.25W
01121
CB1025
R913
315-0103-00
RES.,FXD,CMPSN:10K OHM,5%,0.25W
01121 CB1035
R914
315-0302-00
RES.,FXD,CMPSN:3K OHM,5%,0.25W
01121 CB3025
R915
315-0103-00
RES.,FXD,CMPSN:10K OHM,5%,0.25W
01121 CB1035
R916
321-0309-00
RES.,FXD,FILM:16.2K OHM,1%,0.125W
91637
MFF1816G16201F
R917
321-0210-00
RES.,FXD,FILM:1.5K OHM,l%,0.125W
91637
MFF1816G15000F
R918
311-1268-00
RES. ,VAR,NONWIR:10K OHM,10%,0.50W
32997
3329P-L58-103
R919
321-0382-00
RES.,FXD,FILM:93.1K OHM,1%,0.125W
91637
MFF1816G93101F
R920
311-1458-00
RES.,VAR,WW:50K OHM,5%
73138
7266-322-0
R925
311-1270-00
RES. ,VAR,NONWIR:25K OHM, 10%,0. 50W
80294
3326P-L58-253
R926 321-0335-00
RES.,FXD,FILM:30.IK OHM,1%,0.125W
91637
MFF1816G30101F
R927
321-0308-00
RES.,FXD,FILM:15.8K OHM,1%,0.125W
91637
MFF1816G15801F
R929
321-0241-00
RES.,FXD,FILM:3.16K OHM,1%,0.12SW
91637
MFF1816G31600F
R931 321-0304-00
RES.,FXD,FILM:14.3K OHM,1%,0.125W
91637
MFF1816G14301F
R932 321-0256-00
RES.,FXD,FILM:4.53K OHM,1%,0.12SW
91637
MFF1816G45300F
^Furnished as a unit with S898.
