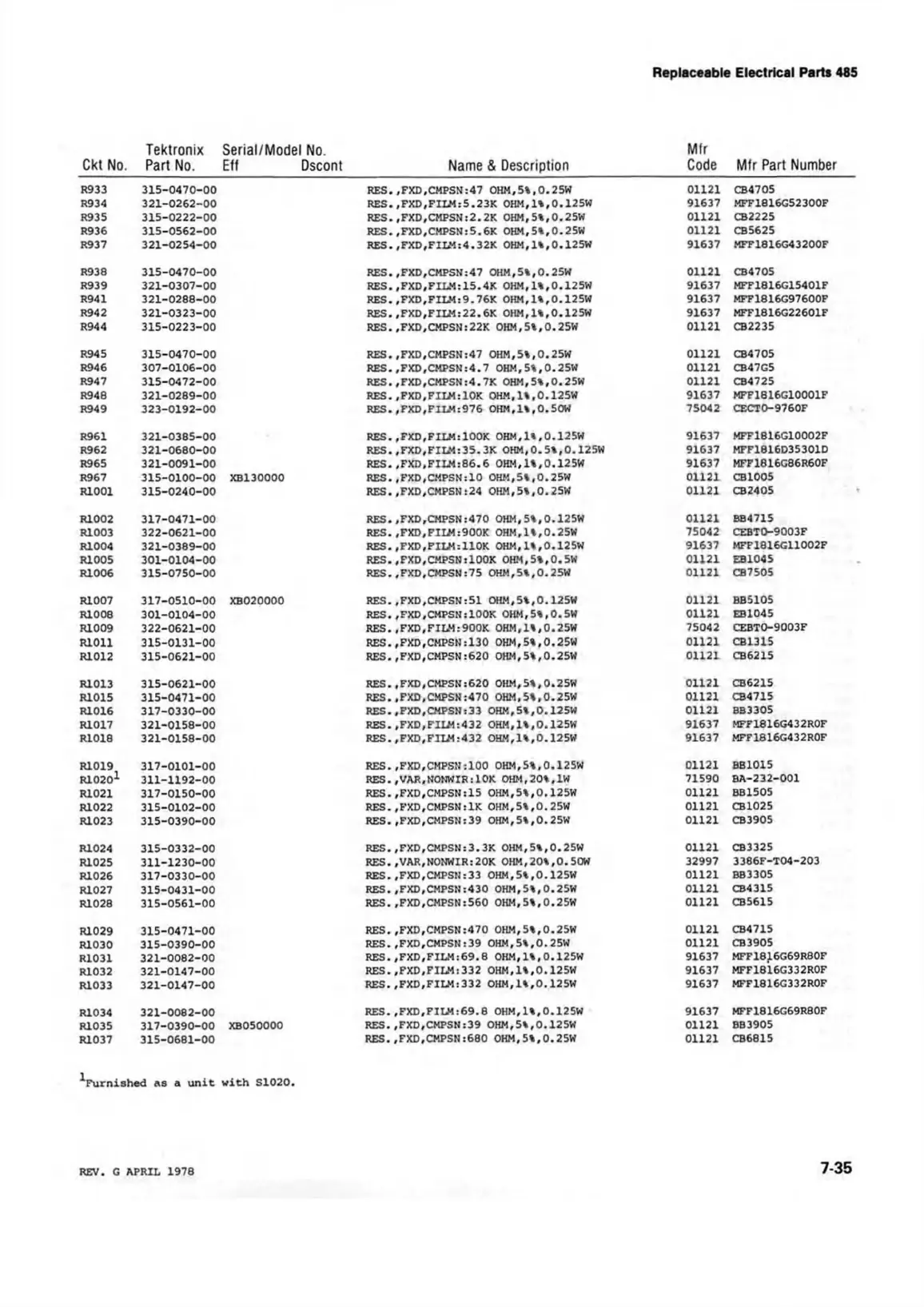

Tektronix 485 - Page 109

Replaceable Electrical Parts 485
Ckt No.
Tektronix Serial/Model No.
Part No. Eff Dscont
Name & Description
Mir
Code
Mtr Part Number
R933
315-0470-00
RES.,FXD,CMPSN:47 OHM,5%,0.25W 01121 CB4705
R934 321-0262-00
RES.,FXD,FILM:5.23K OHM,1»,0.125W
91637 MFF1816G52300F
R935
315-0222-00
RES.,FXD,CMPSN:2.2K OHM,5%,0.25W
01121 CB2225
R936
315-0562-00
RES.,FXD,CMPSN:5.6K OHM,5%,0.25W
01121
CB5625
R937
321-0254-00
RES.,FXD,FILM:4.32K OHM,1%,0.125W
91637
MFF1816G43200F
R938
315-0470-00 RES. ,FXD,CMPSN:47 OHM,5»,0.25W
01121 CB4705
R939
321-0307-00
RES.,FXD,FILM:15.4K OHM,1»,0.125W
91637 MFF1816G1S401F
R941
321-0288-00
RES.,FXD,FILM:9.76K OHM,14,0.125W 91637
MFF1816G97600F
R942
321-0323-00
RES.,FXD,FILM:22.6K OHM,1%,0.125W
91637 MFF1816G22 601F
R944
315-0223-00
RES.,FXO,CMPSN:22K OHM,5»,0.25W
01121 CB2235
R945
315-0470-00
RES.,FXD,CMPSN:47 OHM,5»,0.25W
01121 CB4705
R946
307-0106-00 RES.,FXD,CMPSN:4.7 OHM,5%,0.25W
01121 CB47G5
R947
315-0472-00
RES.,FXD,CMPSN:4.7K 0HM,5%,0.25W 01121 CB4725
R948
321-0289-00
RES.,FXD,FILM:10K OHM,1»,0.125W
91637
MFF1816G10001F
R949 323-0192-00
RES.,FXD,FILM:976 OHM,1»,0.50W
75042
CECTO-9760F
R961 321-0385-00
RES.,FXD,FILM:100K OHM,1%,0.125W
91637
MFF1816G10002F
R962
321-0680-00
RES.,FXD,FILM:35.3K OHM,0.5»,0.125W
91637 MFF1816D35301D
R965
321-0091-00
RES.,FXD,FILM:86.6 OHM,1%,0.125W
91637
MFF1816G86R60F
R967
315-0100-00 XB130000
RES.,FXD,CMPSN:10 OHM,5»,0.25W
01121
CB1005
R1001
315-0240-00
RES.,FXD,CMPSN:24 OHM,5%,0.2SW
01121
CB2405
R1002
317-0471-00 RES.,FXD,CMPSN:470 OHM,5%,0.125W
01121 BB4715
R1003 322-0621-00
RES.,FXD,FILM:900K OHM,1»,0.25W
75042
CEBTO-9003F
R1004 321-0389-00
RES.,FXD,FILM:110K OHM,1%,0.125W
91637 MFF1816G11002F
R1005
301-0104-00
RES.,FXD,CMPSN:100K OHM,5»,0.5W
01121
EB1045
R1006 315-0750-00
RES.,FXD,CMPSN:75 OHM,5%,0.25W 01121
CB7505
R1007 317-0510-00 XB020000
RES.,FXD,CMPSN:51 OHM,5%,0.125W
01121 BB5105
R1008 301-0104-00
RES.,FXD,CMPSN:100K OHM,5»,0.5W
01121
EB1045
R1009
322-0621-00
RES.,FXD,FILM:900K OHM,1»,0.25W
75042
CEBT0-9003F
R1011 315-0131-00
RES.,FXD,CMPSN:130 OHM,5%,0.25W
01121 CB1315
R1012 315-0621-00
RES.,FXD,CMPSN:620 OHM,5%,0.25W
01121 CB6215
R1013
315-0621-00
RES.,FXD,CMPSN:620 OHM,5%,0.2SW
01121 CB6215
R1015 315-0471-00
RES.,FXD,CMPSN:470 OHM,S»,0.25W
01121 CB4715
R1016
317-0330-00
RES.,FXD,CMPSN:33 OHM,5%,0.125W
01121
BB3305
R1017
321-0158-00
RES.,FXD,FILM:432 OHM,1%,0.125W
91637 MFF1816G432R0F
R1018 321-0158-00
RES.,FXD,FILM:432 OHM,1»,0.125W
91637
MFF1816G432R0F
R1019
317-0101-00
RES.,FXD,CMPSN:100 OHM,5%,0.125W
01121
BB1015
R10201 311-1192-00
RES.,VAR,NONWIR:10K OHM,20%,1W
71590
BA-232-001
R1021
317-0150-00
RES.,FXD,CMPSN:15 OHM,5»,0.125W
01121
BB1505
R1022
315-0102-00
RES.,FXD,CMPSN:IK OHM,5%,0.25W
01121 CB1025
R1023
315-0390-00
RES.,FXD,CMPSN:39 OHM,S%,0.25W 01121
CB3905
R1024 315-0332-00
RES.,FXD,CMPSN:3.3K OHM,5»,0.25W 01121
CB3325
R1025 311-1230-00
RES.,VAR,NONWIR:20K OHM,204,0.SOW
32997
3386F-T04-203
R1026 317-0330-00
RES.,FXD,CMPSN:33 OHM,5%,0.125W
01121
BB3305
R1027 315-0431-00
RES.,FXD,CMPSN:430 OHM,5»,0.25W 01121
CB4315
R1028 315-0561-00
RES.,FXD,CMPSN:560 OHM,5»,0.25W
01121
CB5615
R1029
315-0471-00
RES.,FXD,CMPSN:470 OHM,5%,0.25W
01121
CB4715
R1030
315-0390-00
RES.,FXD,CMPSN:39 OHM,5»,0.25W 01121
CB3905
R1031
321-0082-00
RES.,FXD,FILM:69.8 OHM,lt,0.125W
91637
MFF1816G69R80F
R1032 321-0147-00
RES.,FXD,FILM:332 OHM,1»,0.125W
91637
MFF1816G332R0F
R1033
321-0147-00
RES.,FXD,FILM:332 OHM,1%,0.125W
91637
MFF1816G332ROF
R1034 321-0082-00
RES. ,FXD,FII2i:69.8 OHM, 1»,0. 125W 91637
MFF1816G69R80F
R1035
317-0390-00 XB050000
RES.,FXD,CMPSN:39 OHM,5%,0.125W
01121
BB3905
R1037 315-0681-00
RES.,FXD,CMPSN:680 OHM,5»,0.25W
01121
CB6815
^Furnished as a unit with S1020.
REV. G A PRI L 1978
7-35
