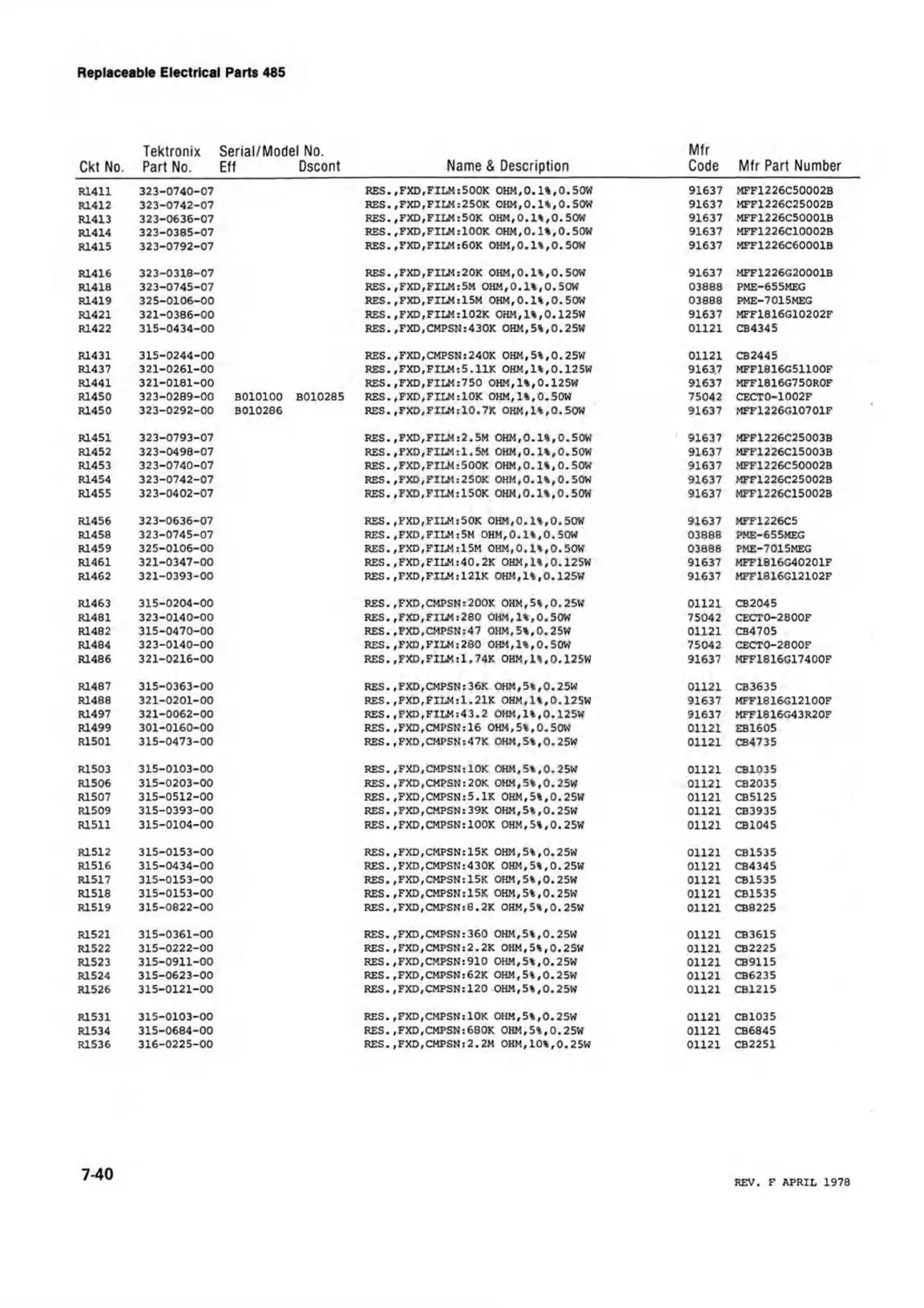

Replaceable Electrical Parts 485
Ckt No.
Tektronix Serial/Model No.
Part No. Eft Dscont
Name & Description
Mfr
Code
Mfr Part Number
R1411
323-0740-07
RES.,FXD,FILM:500K OHM.O.1%,0.50W
91637
MFF1226C50002B
R1412
323-0742-07
RES. ,FXD,FII/J:250K OHM,0.1%, 0.50W
91637 MFF1226C25002B
R1413
323-0636-07
RES. ,FXD,Fmt:50K OHM.O. 1%,0.50W 91637 MFF1226C50001B
R1414
323-0385-07
RES.,FXD,FILM:100K OHM,0.1*,0.SOW
91637 MFF1226C10002B
R1415
323-0792-07
RES.,FXD,FILM:60K OHM.O.1%,0.50W 91637 MFF1226C60001B
R1416
323-0318-07
RES.,FXD,FILM:20K OHM,0.1%,0.50W
91637 MFF1226G20001B
R1418
323-0745-07
RES.,FXD,FILM:5M OHM,0.1%,0.50W
03888
PME-655MEG
R1419 325-0106-00
RES.,FXD,FILM:15M OHM,0.1%,0.SOW
03888
PME-7015MEG
R1421 321-0386-00
RES.,FXD,FILM:102K OHM,1%,0.125W 91637 MFF1816G10202F
R1422
315-0434-00
RES.,FXD,CMPSN:43OK OHM,5%,0.25W 01121
CB4345
R1431
315-0244-00
RES. ,FXD,CMPSN:240K 0HM,S%,0.25W
01121
CB2445
R1437 321-0261-00 RES.,FXD,FILM:5.11K OHM,1%,0.125W 9163.7
MFF1816G51100F
R1441
321-0181-00
RES.,FXD,FILM:750 OHM,1%,0.125W
91637
MFF1816G750R0F
R1450 323-0289-00 B010100 B010285 RES. ,FXD,FILM:10K OHM,1%,0.50W 75042 CECT0-1002F
R14SO 323-0292-00 B010286 RES.,FXD,FILM:10.7K OHM,1%,0.50W 91637
MFF1226G10701F
R1451
323-0793-07
RES.,FXD,FILM:2.5M OHM,0.1%,0.50W
91637
MFF1226C25003B
R1452
323-0498-07
RES.,FXD,FILM:1.5M OHM,0.1%,0.50W 91637 MFF1226C1S003B
R1453
323-0740-07
RES.,FXD,FILM:500K OHM,0.1%,0.50W 91637 MFF1226C50002B
R14S4
323-0742-07 RES.,FXD,FILM:250K OHM,0.1»,0.50W
91637
MFF1226C25002B
R1455 323-0402-07 RES.,FXD,FILM:150K OHM,0.1%,0.50W 91637 MFF1226C15002B
R1456
323-0636-07 RES.,FXD,FILM:50K OHM.O.1%,0.50W
91637
MFF1226C5
R14S8 323-0745-07
RES.,FXD,FILM:5M OHM,0.1%,0.50W
03888 PME-655MEG
R1459
325-0106-00
RES.,FXD,FILM:15M OHM.O.1%,0.50W
03888 PME-7015MEG
R1461 321-0347-00 RES.,FXD,FILM:40.2K OHM,1%,0.125W 91637 MFF1816G40201F
R1462 321-0393-00 RES.,FXD,FILM:121K OHM,1%,0.125W 91637 MFF1816G12102F
R1463
315-0204-00
RES.,FXD,CMPSN:200K OHM,5*,0.25W
01121
CB2045
R1481
323-0140-00 RES.,FXD,FILM:280 OHM,1%,0.50W
75042 CECTO-2800F
R1482 315-0470-00
RES.,FXD,CMPSN:47 OHM,5%,0.25W
01121 CB4705
R1484 323-0140-00
RES.,FXD,FILM:280 OHM,1%,O.SOW
75042
CECT0-2800F
R1486 321-0216-00 RES.,FXD,FILM:1.74K OHM,1%,0.125W
91637 MFF1816G17400F
R1487 315-0363-00 RES.,FXD,CMPSN:36K OHM,5%,0.25W
01121
CB3635
R1488
321-0201-00
RES.,FXD,FILM:1.21K OHM,1%,0.125W
91637
MFF1816G12100F
R1497
321-0062-00
RES.,FXD,FILM:43.2 OHM,1%,0.125W
91637
MFF1816G43R20F
R1499
301-0160-00
RES.,FXD,CMPSN:16 OHM,5%,0.50W
01121 EB1605
RlSOl 315-0473-00 RES.,FXD,CMPSN:47K OHM,5%,0.25W
01121 CB473S
R1503
315-0103-00 RES.,FXD,CMPSN:10K OHM,5%,0.25W
01121
CB1035
R1506 315-0203-00 RES.,FXD,CMPSN:2OK OHM,5%,0.25W
01121
CB2035
R1507
315-0512-00 RES.,FXD,CMPSN:5.IK OHM,5%,0.25W
01121
CB5125
R1509 315-0393-00 RES.,FXD,CMPSN:39K OHM,S%,0.25W
01121 CB3935
R1511 315-0104-00
RES.,FXD,CMPSN:100K OHM,5%,0.25W
01121
CB1045
R1512 315-0153-00
RES.,FXD,CMPSN:15K 0HM,5%,0.25W
01121
CB1535
R1516
315-0434-00 RES.,FXD,CMPSN:430K OHM,5%,0.25W
01121
CB4345
R1517 315-0153-00
RES.,FXD,CMPSN:15K OHM,5»,0.25W
01121
CB1535
R1518
315-0153-00 RES.,FXD,CMPSN:15K OHM,5%,0.25W
01121
CB1535
R1519 315-0822-00
RES.,FXD,CMPSN:8.2K OHM,5%,0.25W
01121
CB8225
R1521 315-0361-00 RES.,FXD,CMPSN:360 OHM,5%,0.25W
01121
CB3615
R1522
315-0222-00 RES.,FXD,CMPSN:2.2K OHM,5%,0.25W
01121
CB2225
R1523
315-0911-00
RES.,FXD,CMPSN:910 OHM,5%,0.25W
01121
CB9115
R1524
315-0623-00
RES.,FXD,CMPSN:62K OHM,5%,0.25W
01121
CB6235
R1526 315-0121-00
RES.,FXD,CMPSN:120 OHM,5»,0.25W
01121
CB1215
R1S31
315-0103-00
RES.,FXD,CMPSN:10K OHM,5»,0.25W
01121
CB1035
R1534
315-0684-00
RES.,FXD,CMPSN:680K OHM,5»,0.25W
01121 CB6845
R1536 316-0225-00
RES.,FXD,CMPSN:2.2M OHM,10%,0.25W
01121
CB2251
REV. F APRIL 1978
