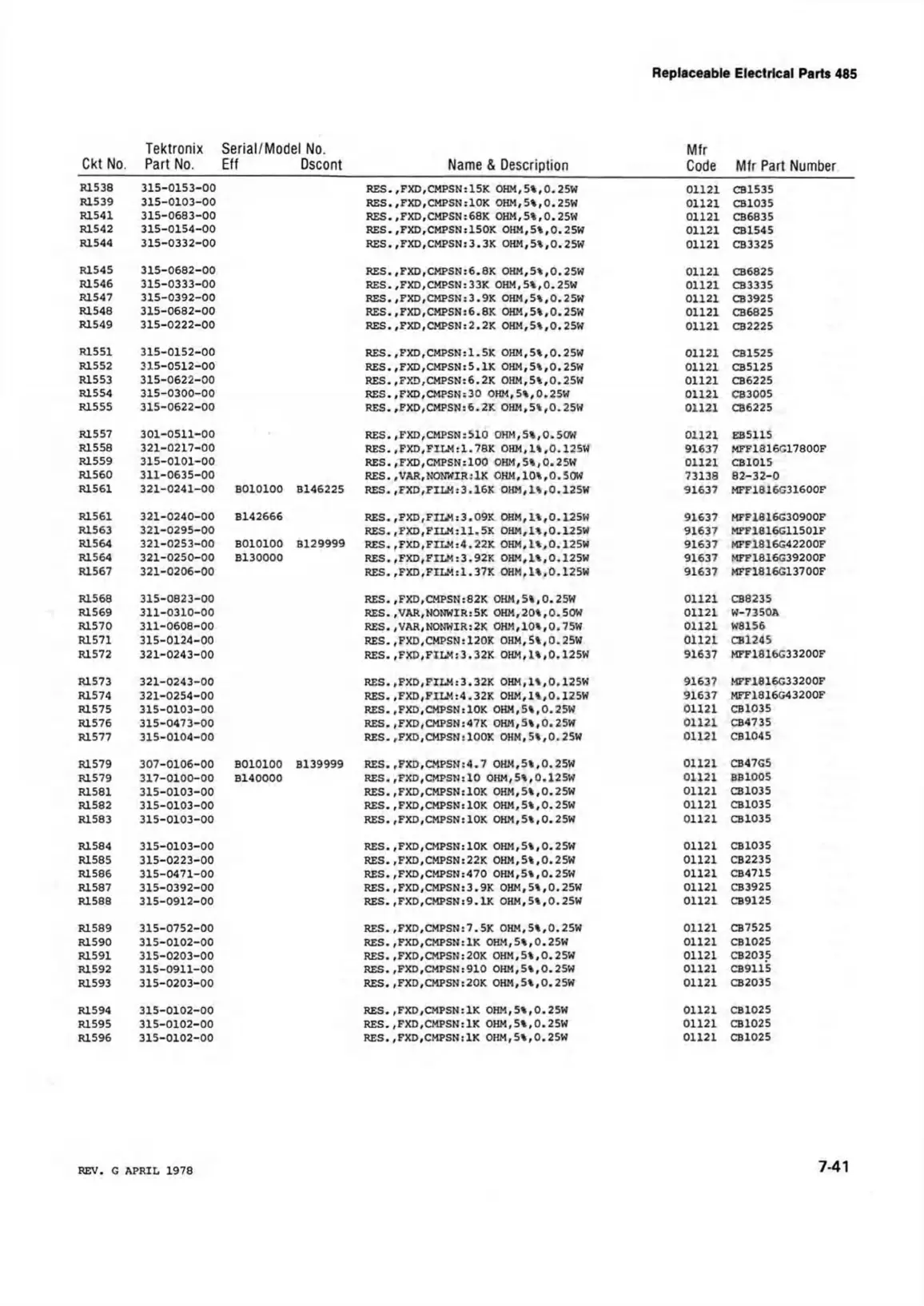

Replaceable Electrical Parts 485
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont
Name & Description
Mfr
Code Mfr Part Number
R1538 315-0153-00
RES.,FXD,CMPSN:15K OHM,5%,0.25W
01121 CB1535
R1539 315-0103-00
RES.,FXD,CMPSN:10K OHM,5%,0.25W
01121
CB1035
R1541 315-0683-00
RES., FXD, CMPSN :68K OHM,5»,0.25W
01121 CB6835
R1542
315-0154-00
RES.,FXD,CMPSN:150K OHM,5%,0.25W
01121
CB1545
R1544
315-0332-00
RES.,FXD,CMPSN:3.3K OHM,5%,0.25W
01121
CB3325
R1545
315-0682-00
RES.,FXD,CMPSN:6.8K OHM,5%,0.25W
01121 CB6825
R1546
315-0333-00
RES.,FXD,CMPSN:33K OHM,5%,0.25W
01121
CB3335
R1547
315-0392-00
RES.,FXD,CMPSN:3.9K OHM,5%,0.25W
01121
CB3925
R1548 315-0682-00
RES.,FXD,CMPSN:6.8K OHM,5»,0.25W
01121
CB6825
R1549 315-0222-00
RES.,FXD,CMPSN:2.2K OHM,5%,0.25W
01121 CB2225
R1551
315-0152-00
RES.,FXD,CMPSN:1.5K OHM,5%,0.2SW
01121 CB1525
R1552
315-0512-00
RES.,FXD,CMPSN:5.IK OHM,5%,0.25W
01121 CB5125
R1553 315-0622-00
RES.,FXD,CMPSN:6.2K OHM,5%,0.25W 01121
CB6225
R1554 315-0300-00
RES.,FXD,CMPSN:30 OHM,5%,0.25W
01121
CB3005
R1555 315-0622-00
RES.,FXD,CMPSN:6.2K OHM,5%,0.25W
01121
CB6225
R1557 301-0511-00
RES.,FXD,CMPSN:510 OHM,5%,0.5OW 01121 EB5115
R1558
321-0217-00
RES.,FXD,FILM:1.78K OHM,1%,0.125W
91637
MFF1816G17800F
R1559
315-0101-00
RES.,FXD,CMPSN:100 OHM,5%,0.25W
01121 CB1015
R1560
311-0635-00
RES.,VAR,N0NWIR:1K OHM,10%,0.50W
73138 82-32-0
R1561
321-0241-00
B010100
B146225
RES.,FXD,FILM:3.16K OHM,1%,0.125W 91637
MFF1816G31600F
R1561 321-0240-00 B142666
RES.,FXD,FILM:3.09K OHM,1%,0.125W
91637
MFF1816G30900F
R1563
321-0295-00
RES.,FXD,FILM:11.5K OHM,1%,0.125W
91637
MFF1816G11501F
R1564
321-0253-00 B010100
B129999
RES.,FXD,FILM:4.22K OHM,1%,0.125W 91637
MFF1816G42200F
R1564
321-0250-00 B130000
RES.,FXD,FILM:3.92K OHM,1*,0.125W
91637 MFF1816G39200F
R1567
321-0206-00 RES.,FXD,FILM:1.37K OHM,1%,0.125W 91637
MFF1816G13700F
R1568 315-0823-00
RES.,FXD,CMPSN:82K OHM,5%,0.25W
01121
CB8235
R1569 311-0310-00
RES. ,VAR,NONWIR:5K OHM,20%,0.50W
01121 W-7350A
R1570 311-0608-00 RES.,VAR,NONWIR:2K OHM,10%,0.75W
01121 W8156
R1571
315-0124-00 RES.,FXD,CMPSN:120K OHM,5%,0.25W 01121
CB1245
R1572
321-0243-00 RES.,FXD,FILM:3.32K OHM,1%,0.125W
91637
MFF1816G33200F
R1573
321-0243-00 RES.,FXD,FILM:3.32K OHM,1%,0.125W
91637
MFF1816G33200F
R1574 321-0254-00 RES.,FXD,FILM:4.32K 0HM,1%,0.125W
91637
MFF1816G43200F
R1575
315-0103-00 RES.,FXD,CMPSN:1OK OHM,5%,0.25W
01121
CB1035
R1576
315-0473-00
RES.,FXD,CMPSN:47K OHM,5%,0.25W
01121 CB4735
R1577 315-0104-00
RES.,FXD,CMPSN:100K OHM,5%,0.25W
01121 CB1045
R1579 307-0106-00
B010100
B139999
RES.,FXD,CMPSN:4.7 OHM,5%,0.25W
01121
CB47G5
R1579 317-0100-00 B140000
RES.,FXD,CMPSN:10 OHM,5%,0.125W
01121
BB1005
R1581
315-0103-00
RES.,FXD,CMPSN:10K OHM,5%,0.25W
01121
CB1035
R1582 315-0103-00
RES.,FXD,CMPSN:10K OHM,5%,0.25W
01121
CB1035
R1583
315-0103-00
RES.,FXD,CMPSN:10K OHM,5%,0.25W
01121
CB1035
R1S84 315-0103-00 RES.,FXD,CMPSN:10K OHM,5»,0.25W
01121
CB1035
R1585
315-0223-00 RES.,FXD,CMPSN:22K OHM,5%,0.25W
01121 CB2235
R1586 315-0471-00 RES.,FXD,CMPSN:470 OHM,5%,0.25W
01121 CB4715
R1587
315-0392-00
RES.,FXD,CMPSN:3.9K OHM,5%,0.25W
01121
CB3925
R1588
315-0912-00
RES.,FXD,CMPSN:9.IK OHM,5%,0.25W
01121 CB9125
R1589 315-0752-00
RES.,FXD,CMPSN:7.5K OHM,5%,0.25W 01121
CB7525
R1590
315-0102-00 RES. ,FXD,CMPSN:IK OHM,5%,0.25W
01121
CB1025
R1591
315-0203-00
RES.,FXD,CMPSN:20K OHM,5%,0.25W 01121
CB2035
R1592 315-0911-00 RES.,FXD,CMPSN:910 OHM,5%,0.25W
01121 CB9115
R1593
315-0203-00
RES.,FXD,CMPSN:20K OHM,5%,0.25W 01121
CB2035
R1594 315-0102-00
RES.,FXD,CMPSN:IK OHM,5»,0.25W
01121
CB1025
R1595 315-0102-00
RES.,FXD,CMPSN:IK OHM,5%,0.25W
01121
CB1025
R1596 315-0102-00
RES.,FXD,CMPSN:1K OHM,5%,0.25W 01121
CB1025
REV. G APRI L 1978
