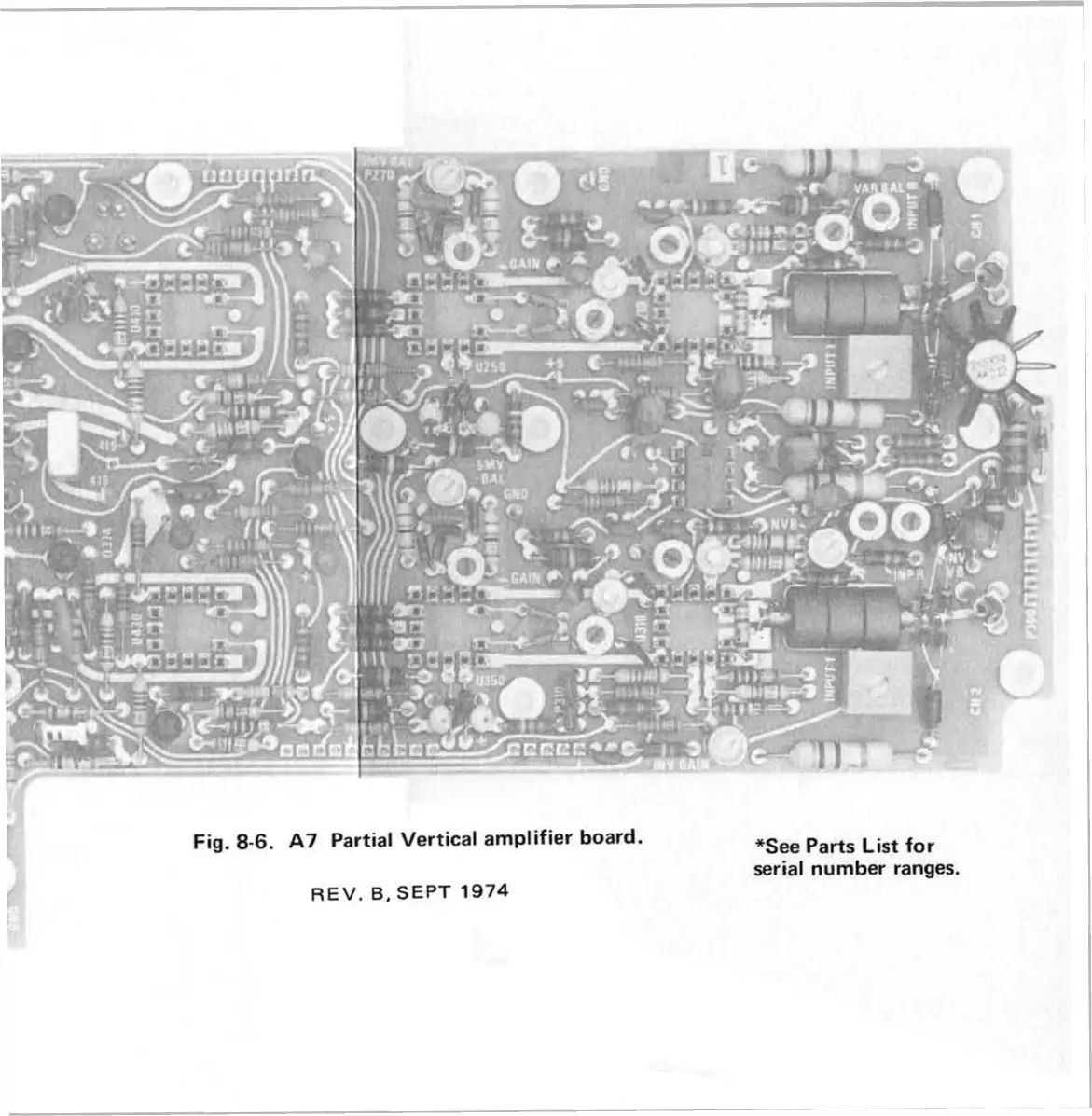

Fig. 8-6. A7 Partial Vertical amplifier board. *See Pgrts Ljsf for
serial number ranges.
f
REV. B, SEPT 1974
