Tektronix 485 - Page 160

+59.4 V
ADJ
•R1903
Located on back of U1910.
MONO RAMP
SYMM ETR Y TP
R1958 Q
R1959
R1917
R1944 C l 951
CR1912
01918 o CR1923
t R1940 “2 CR1924
U R1925
C1912 CR1925
C1921
o f j R1921
<o § C1919
Si 3 R1919
R1943
C1943
R1924
VR 1928
C1902
C1904
C1901 R1901
R1904
Cl 924
R1956
R1953
R1955
R1957
R1954
R1951
OCR1931
CR1932
CR1933
CR1934
’ See Parts List for
serial number ranges.

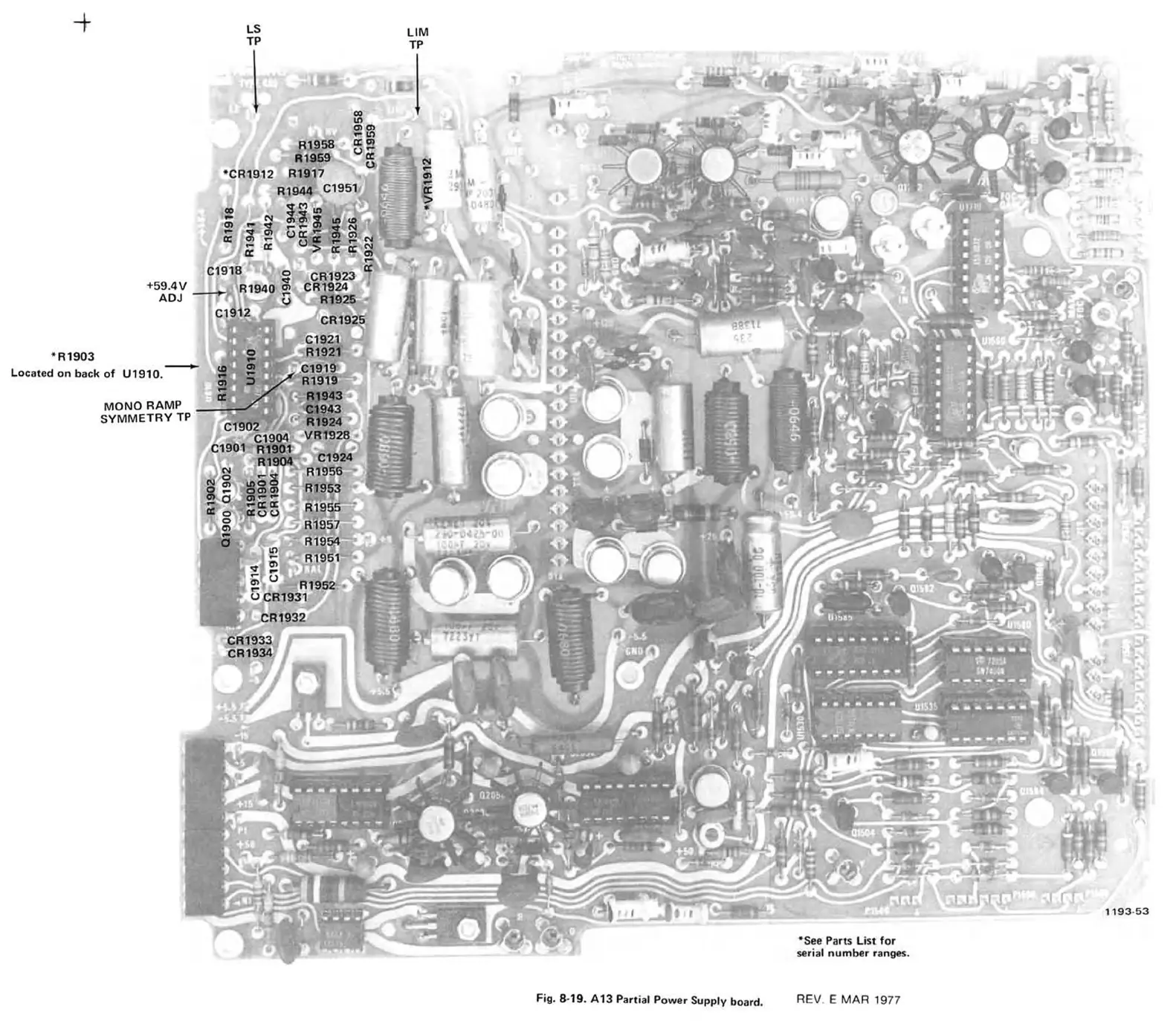

Fig. 8-19. A13 Partial Power Supply board. REV E MAR 1977
