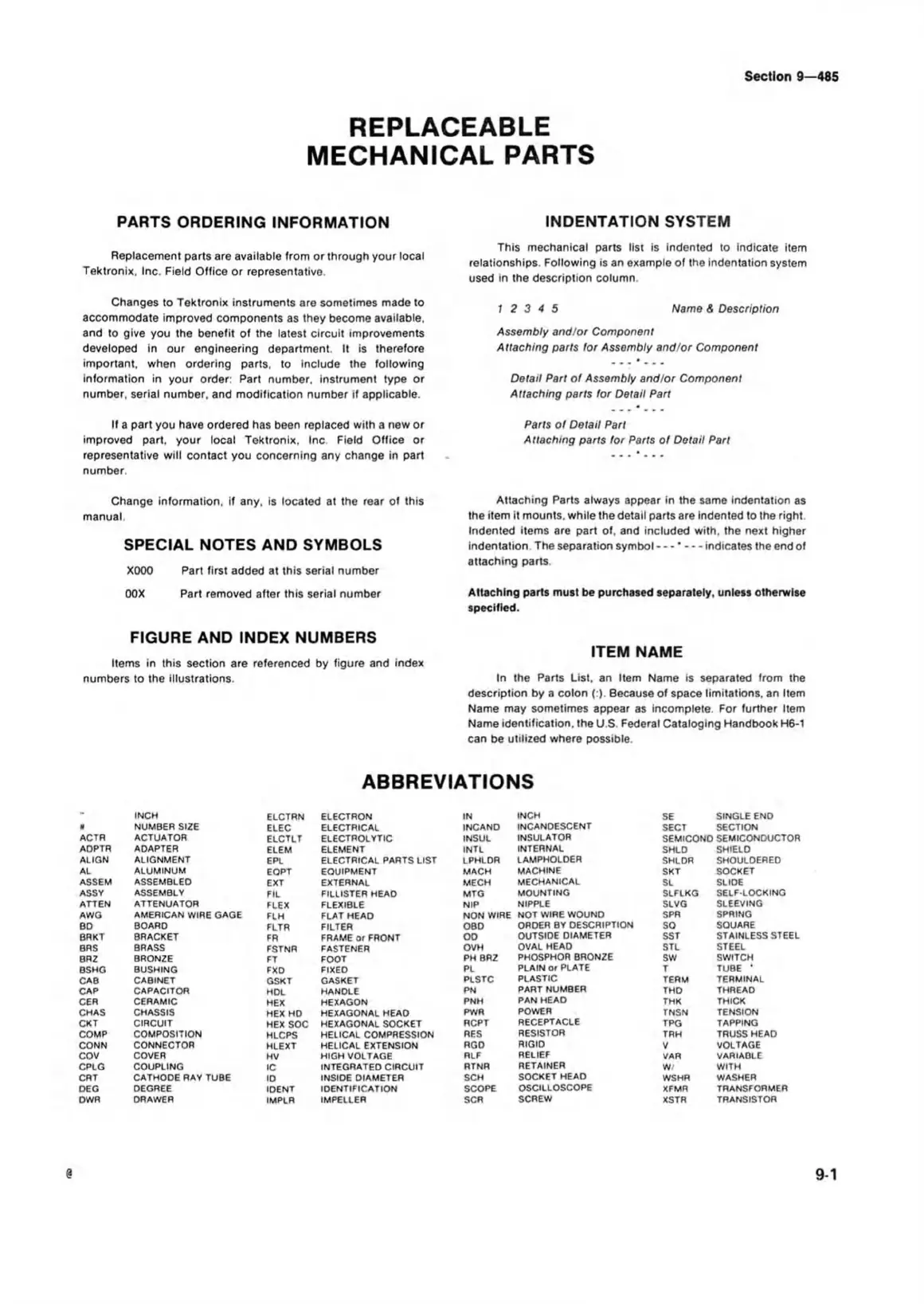

Section 9-485
REPLACEABLE
MECHANICAL PARTS
PARTS ORDERING INFORMATION
Replacement parts are available from or through your local
Tektronix, Inc. Field Office or representative.
Changes to Tektronix instruments are sometimes made to
accommodate improved components as they become available,
and to give you the benefit of the latest circuit improvements
developed in our engineering department. It is therefore
important, when ordering parts, to include the following
Information in your order: Part number, instrument type or
number, serial number, and modification number if applicable.
If a part you have ordered has been replaced with a new or
improved part, your local Tektronix. Inc Field Office or
representative will contact you concerning any change in part
number.
Change information, if any, is located at the rear of this
manual
SPECIAL NOTES AND SYMBOLS
XOOO Part first added at this serial number
00X Part removed after this serial number
FIGURE AND INDEX NUMBERS
Items in this section are referenced by figure and index
numbers to the Illustrations.
INDENTATION SYSTEM
This mechanical parts list is indented to indicate item
relationships. Following is an example of the indentation system
used in the description column
1 2 3 4 5 Name & Description
Assembly and/or Component
Attaching parts tor Assembly and/or Component
Detail Part o l Assembly and/or Component
Attaching parts lor Detail Part
Parts ol Detail Part
Attaching parts lor Parts o l Detail Part
Attaching Parts always appear in the same indentation as
the item it mounts, while the detail parts are indented to the right
Indented items are part of. and included with, the next higher
indentation The separation symbol — ' — indicates the end of
attaching parts.
Attaching parts must be purchased separately, unless otherwise
specified.
ITEM NAME
In the Parts List, an Item Name is separated from the
description by a colon (:) Because of space limitations, an Item
Name may sometimes appear as incomplete. For further Item
Name identification, the U S Federal Cataloging Handbook H6-1
can be utilized where possible.
ABBREVIATIONS
"
INCH
ELCTRN
ELECTRON
IN
INCH
SE
SINGLE END
•
NUMBER SIZE
ELEC
ELECTRICAL
INCAND
INCANDESCENT
SECT SECTION
ACTR
ACTUATOR
ELCTLT ELECTROLYTIC
INSUL
INSULATOR
SEMICOND
SEMICONDUCTOR
ADPTR
ADAPTER
ELEM
ELEMENT
in tl
INTERNAL
SHLD
SHIELD
ALIGN
ALIGNMENT
EPL
ELECTRICAL PARTS LIST
LPHLDR
LAMPHOLDER
SHLDR
SHOULDERED
AL
ALUMINUM
EQPT EQUIPMENT
MACH MACHINE
SKT
SOCKET
ASSEM ASSEMBLED
EXT
EXTERNAL
MECH
MECHANICAL
SL
SLIOE
ASSY ASSEMBLY
FIL
FILLISTER HEAD MTG
MOUNTING
SLFLKG
SELF-LOCKING
ATTEN
ATTENUATOR
FLEX
FLEXIBLE
NIP
NIPPLE
SLVG
SLEEVING
AWG AMERICAN WIRE GAGE
FLH
FLAT HEAD
NON WIRE
NOT WIRE WOUND
SPR
SPRING
BD BOARD
FLTR
FILTER
OBD
ORDER BY DESCRIPTION
SO
SQUARE
BRKT
BRACKET
FR
FRAME or FRONT
OD
OUTSIDE DIAMETER
SST
sta inless steel
BRS
BRASS
FSTNR
FASTENER
OVH
OVAL HEAD
STL
STEEL
BRZ
BRONZE
FT
FOOT
PH BRZ
PHOSPHOR BRONZE
SW
SWITCH
BSHG BUSHING
FXD
FIXED
PL
PLAIN or PLATE
T TUBE ’
CAB
CABINET
GSKT
GASKET
PLSTC
PLASTIC
TERM
TERMINAL
CAP
CAPACITOR
HDL
HANDLE
PN
PART NUMBER
THD
THREAD
CER CERAMIC
HEX
HEXAGON
PNH
PAN HEAD
THK
THICK
CHAS
CHASSIS
HEX HD
HEXAGONAL HEAD
PWR
POWER
TNSN
TENSION
CKT
CIRCUIT
HEX SOC
HEXAGONAL SOCKET
RCPT
RECEPTACLE
TPG
TAPPING
COMP COMPOSITION
HLCPS
HELICAL COMPRESSION
RES
RESISTOR
TRH TRUSS HEAD
CONN
CONNECTOR
HLEXT HELICAL EXTENSION
RGD
RIGID
V
VOLTAGE
CO V
COVER
HV
HIGH VOLTAGE
RLF
RELIEF
VAR
VARIABLE
CPLG COUPLING
1C
INTEGRATED CIRCUIT
RTNR
RETAINER
W/
WITH
CRT
CATHODE RAY TUBE
ID
INSIDE DIAMETER
SCH
SOCKET HEAD
WSHR WASHER
DEG
DEGREE IDENT IDENTIFICATION SCOPE
OSCILLOSCOPE
XFMR
TRANSFORMER
DWR DRAWER
IMPLR
IMPELLER SCR
SCREW
XSTR
TRANSISTOR
