Tektronix 485

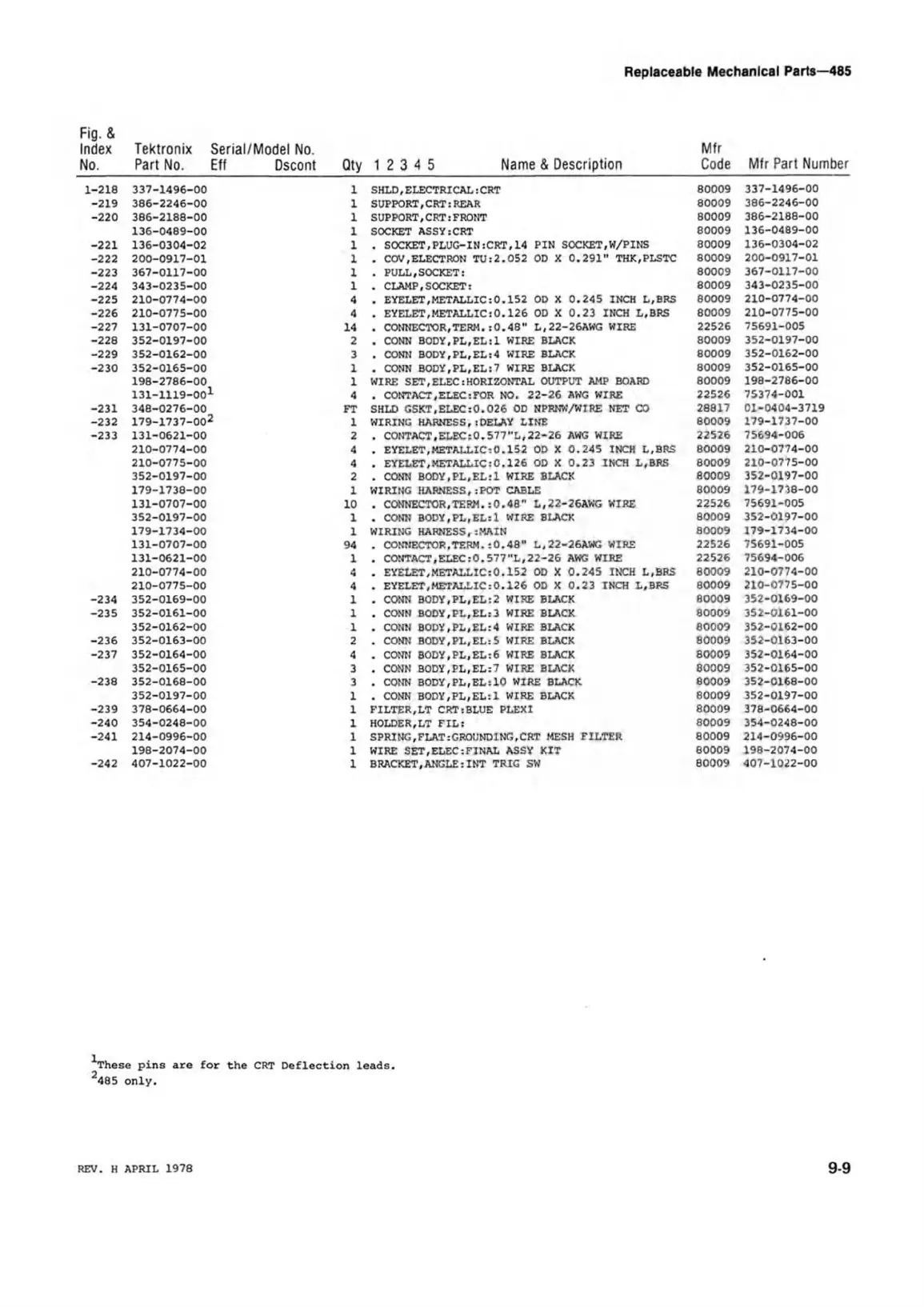

Replaceable Mechanical Parts—485
Fig. &
Index
No.
Tektronix Serial/Model No.
Part No. Eft Dscont
Qty
1 2 3 4 5 Name & Description
Mfr
Code
Mfr Part Number
1-218 337-1496-00
1
SHLD,ELECTRICAL:CRT
80009
337-1496-00
-219 386-2246-00 1
SUPPORT,CRT:REAR
80009 386-2246-00
-220 386-2188-00
1 SUPPORT, CRT:FRONT
80009
386-2188-00
136-0489-00
1
SOCKET ASSY:CRT
80009
136-0489-00
-221 136-0304-02
1
. SOCKET,PLUG-IN:CRT,14 PIN SOCKET,W/PINS
80009
136-0304-02
-222 200-0917-01
1
. COV,ELECTRON TU:2.052 OD X 0.291” THK,PLSTC 80009
200-0917-01
-223
367-0117-00
1
. PULL,SOCKET:
80009
367-0117-00
-224 343-0235-00 1 . CLAMP,SOCKET:
80009
343-0235-00
-225 210-0774-00 4
. EYELET,METALLIC:0.152 OD X 0.245 INCH L,BRS
80009
210-0774-00
-226 210-0775-00 4
. EYELET,METALLIC:0.126 OD X 0.23 INCH L,BRS
80009 210-0775-00
-227
131-0707-00 14
. CONNECTOR,TERM.:0.48" L.22-26AWG WIRE
22526
75691-005
-228
352-0197-00 2 . CONN BODY,PL,EL:1 WIRE BLACK
80009
352-0197-00
-229 352-0162-00 3
. CONN BODY,PL,EL:4 WIRE BLACK
80009
352-0162-00
-230
352-0165-00 1
. CONN BODY,PL,EL:7 WIRE BLACK
80009 352-0165-00
198-2786-00
1
WIRE SET, ELEC: HORIZONTAL OUTPUT AMP BOARD
80009
198-2786-00
131-1119-001
4 . CONTACT,ELEC:FOR NO. 22-26 AWG WIRE
22526
75374-001
-231 348-0276-00 FT SHLD GSKT,ELEC:0.026 OD NPRNW/WIRE NET CO
28817 01-0404-3719
-232
179-1737-002
i
WIRING HARNESS,:DELAY LINE
80009
179-1737-00
-233 131-0621-00 2
. CONTACT,ELEC:0.577"L,22-26 AWG WIRE
22526 75694-006
210-0774-00
4
. EYELET,METALLIC:0.152 OD X 0.245 INCH L,BRS
80009 210-0774-00
210-0775-00
4
. EYELET,METALLIC:0.126 OD X 0.23 INCH L,BRS
80009 210-0775-00
352-0197-00
2
. CONN BODY,PL,EL:1 WIRE BLACK
80009 352-0197-00
179-1738-00
1
WIRING HARNESS,:POT CABLE
80009
179-1738-00
131-0707-00 10
. CONNECTOR,TERM.:0.48" L.22-26AWG WIRE
22526 75691-005
352-0197-00 1 . CONN BODY,PL,EL:l WIRE BLACK
80009 352-0197-00
179-1734-00
1
WIRING HARNESS,:MAIN 80009
179-1734-00
131-0707-00
94
. CONNECTOR,TERM.:0.48" L.22-26AWG WIRE
22526 75691-005
131-0621-00
1
. CONTACT,ELEC:0.577"L,22-26 AWG WIRE
22526
75694-006
210-0774-00 4
. EYELET,METALLIC:0.152 OD X 0.245 INCH L,BRS
80009 210-0774-00
210-0775-00 4
. EYELET,METALLIC:0.126 OD X 0.23 INCH L,BRS
80009 210-0775-00
-234 352-0169-00
i
. CONN BODY,PL,EL:2 WIRE BLACK 80009
352-0169-00
-235 352-0161-00 i . CONN BODY,PL,EL:3 WIRE BLACK
80009
352-0161-00
352-0162-00 i . CONN BODY,PL,EL:4 WIRE BLACK
80009 352-0162-00
-236 352-0163-00
2
. CONN BODY,PL,EL:5 WIRE BLACK
80009 352-0163-00
-237
352-0164-00 4
. CONN BODY,PL,EL:6 WIRE BLACK 80009 352-0164-00
352-0165-00 3
. CONN BODY,PL,EL:7 WIRE BLACK
80009 352-0165-00
-238 352-0168-00
3
. CONN BODY,PL,EL:10 WIRE BLACK 80009
352-0168-00
352-0197-00
1 . CONN BODY,PL,EL:1 WIRE BLACK
80009
352-0197-00
-239 378-0664-00
1
FILTER,LT CRT:BLUE PLEXI
80009
378-0664-00
-240
354-0248-00
1
HOLDER,LT FIL:
80009
354-0248-00
-241 214-0996-00
1
SPRING, FLAT: GROUNDING, CRT MESH FILTER
80009 214-0996-00
198-2074-00
1
WIRE SET,ELEC:FINAL ASSY KIT
80009 198-2074-00
-242 407-1022-00
1 BRACKET,ANGLE:INT TRIG SW
80009 407-1022-00
*These pins are for the CRT Deflection leads.
2485 only.
REV. H A PRI L 1978
9-9
