Tektronix 485

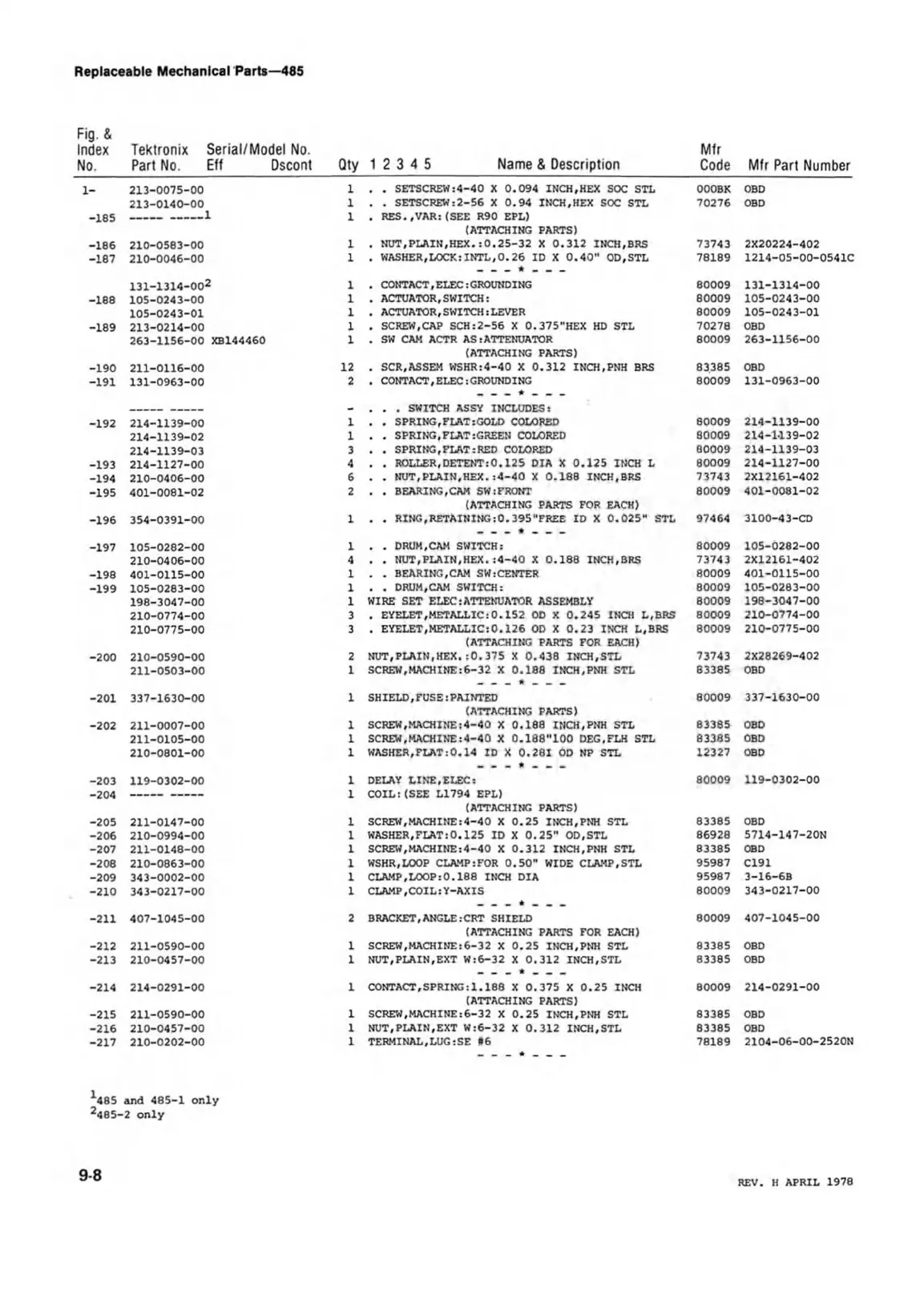

Replaceable Mechanical Parts—485
Fig. &
Index
No.
Tektronix Serial/Model No.
Part No. Eft Dscont
Qty
1 2 3 4 5 Name & Description
Mfr
Code Mfr Part Number
l -
213-0075-00
1
. . SETSCREW:4-40 X 0.094 INCH,HEX SOC STL
000BK
OBD
-185
213-0140-00
____ 1
1
1
. . SETSCREW:2-56 X 0.94 INCH,HEX SOC STL
. RES. ,VAR: (SEE R90 EPL)
(ATTACHING PARTS)
70276
OBD
-186
210-0583-00
1
. NUT,PLAIN,HEX.:0.25-32 X 0.312 INCH,BRS
73743 2X20224-402
-187 210-0046-00
1
. WASHER,LOCK:INTL,0.26 ID X 0.40" OD,STL
78189
1214-05-00-0541C
131-1314-002
1
. CONTACT,ELEC:GROUNDING
80009 131-1314-00
-188
105-0243-00
1
. ACTUATOR,SWITCH:
80009 105-0243-00
105-0243-01
1
. ACTUATOR,SWITCH:LEVER
80009 105-0243-01
-189
213-0214-00
1
. SCREW,CAP SCH:2-56 X 0.375"HEX HD STL 70278 OBD
263-1156-00 XB144460
1
. SW CAM ACTR AS : ATTENUATOR
(ATTACHING PARTS)
80009 263-1156-00
-190 211-0116-00
12
. SCR,ASSEM WSHR:4-40 X 0.312 INCH,PNH BRS
83385
OBD
-191 131-0963-00
2
. CONTACT,ELEC:GROUNDING
. . . SWITCH ASSY INCLUDES:
80009 131-0963-00
-192
214-1139-00
1
. . SPRING,FLAT:GOLD COLORED
80009 214-1139-00
214-1139-02
1
. . SPRING,FLAT:GREEN COLORED 80009 214-1-139-02
214-1139-03
3
. . SPRING,FLAT:RED COLORED 80009
214-1139-03
-193
214-1127-00
4
. . ROLLER,DETENT:0.125 DIA X 0.125 INCH L 80009 214-1127-00
-194
210-0406-00
6
. . NUT,PLAIN,HEX.:4-40 X 0.188 INCH,BRS 73743 2X12161-402
-195
401-0081-02
2
. . BEARING,CAM SW:FRONT
(ATTACHING PARTS FOR EACH)
80009
401-0081-02
-196
354-0391-00
1
. . RING,RETAINING:0.395"FREE ID X 0.025" STL 97464 3100-43-CD
-197 105-0282-00
1
. . DRUM,CAM SWITCH:
80009 105-0282-00
210-0406-00
4
. . NUT,PLAIN,HEX.:4-40 X 0.188 INCH,BRS 73743 2X12161-402
-198 401-0115-00
1
. . BEARING,CAM SW:CENTER
80009
401-0115-00
-199
105-0283-00
1
. . DRUM,CAM SWITCH:
80009 105-0283-00
198-3047-00
1
WIRE SET ELEC:ATTENUATOR ASSEMBLY 80009 198-3047-00
210-0774-00
3
. EYELET,METALLIC:0.152 OD X 0.245 INCH L,BRS 80009
210-0774-00
210-0775-00
3
. EYELET,METALLIC:0.126 OD X 0.23 INCH L,BRS
(ATTACHING PARTS FOR EACH)
80009
210-0775-00
-200 210-0590-00
2
NUT,PLAIN,HEX.:0.375 X 0.438 INCH,STL
73743
2X28269-402
211-0503-00
1
SCREW,MACHINE:6-32 X 0.188 INCH.PNH STL
83385 OBD
-201
337-1630-00
1
SHIELD,FUSE:PAINTED
(ATTACHING PARTS)
80009
337-1630-00
-202 211-0007-00
1
SCREW,MACHINE:4-40 X 0.188 INCH,PNH STL 83385
OBD
211-0105-00
1
SCREW,MACHINE:4-40 X 0.188"100 DEG.FLH STL
83385 OBD
210-0801-00
1
WASHER,FLAT:0.14 ID X 0.281 OD NP STL
12327 OBD
-203
-204
119-0302-00
1
1
DELAY LINE,ELEC:
COIL:(SEE L1794 EPL)
(ATTACHING PARTS)
80009
119-0302-00
-205
211-0147-00 1
SCREW,MACHINE:4-40 X 0.25 INCH.PNH STL 83385
OBD
-206
210-0994-00 1
WASHER,FLAT:0.125 ID X 0.25" OD.STL 86928 5714-147-20N
-207 211-0148-00
1 SCREW,MACHINE:4-40 X 0.312 INCH.PNH STL 83385
OBD
-208
210-0863-00 1
WSHR.LOOP CLAMP:FOR 0.50" WIDE CLAMP,STL
95987
C191
-209
343-0002-00
1
CLAMP,LOOP:0.188 INCH DIA
95987 3-16-6B
-210 343-0217-00
1 CLAMP,COIL:Y-AXIS
80009
343-0217-00
-211
407-1045-00
2 BRACKET,ANGLE:CRT SHIELD
(ATTACHING PARTS FOR EACH)
80009 407-1045-00
-212
211-0590-00 1 SCREW,MACHINE:6-32 X 0.25 INCH.PNH STL 83385 OBD
-213
210-0457-00
1
NUT,PLAIN,EXT W:6-32 X 0.312 INCH,STL 83385 OBD
-214 214-0291-00
1 CONTACT,SPRING:1.188 X 0.375 X 0.25 INCH
(ATTACHING PARTS)
80009
214-0291-00
-215
211-0590-00
1 SCREW,MACHINE:6-32 X 0.25 INCH.PNH STL 83385 OBD
-216
210-0457-00
1 NUT,PLAIN,EXT W:6-32 X 0.312 INCH,STL
83385
OBD
-217 210-0202-00
1
TERMINAL,LUG:SE #6
78189
2104-06-00-2520N
^485 and 485-1 only
2485-2 only
9-8
REV. H APRIL 1978
