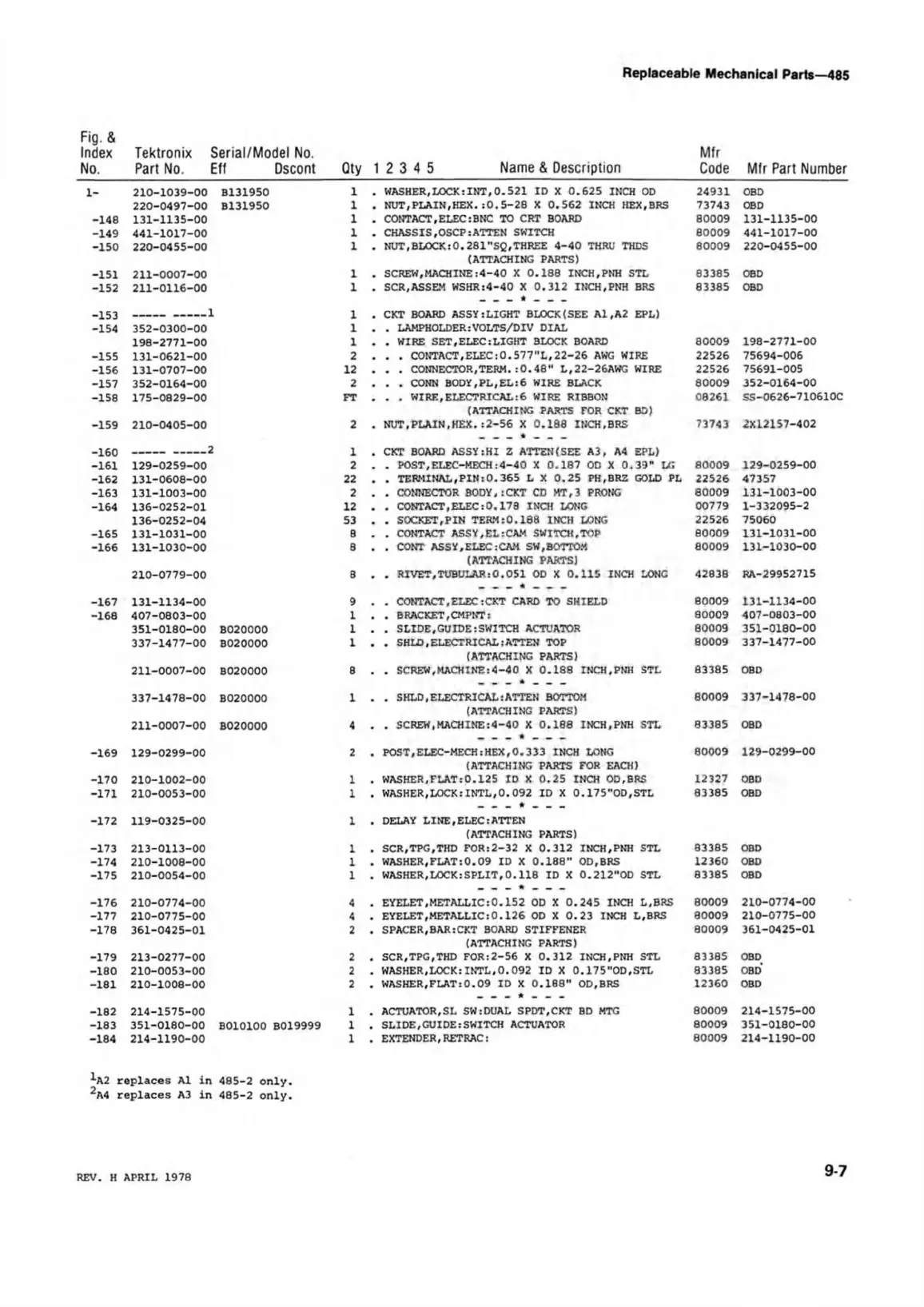

Tektronix 485

Replaceable Mechanical Parts—485
Fig. &
Index
No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont
Qty
1 2 3 4 5 Name & Description
Mfr
Code Mfr Part Number
l-
210-1039-00
B131950
1
#
WASHER,LOCK:INT,0.521 ID X 0.625 INCH OD
24931
OBD
220-0497-00
B131950 1
• NUT,PLAIN,HEX.:0.5-28 X 0.562 INCH HEX,BRS
73743 OBD
-148 131-1135-00
1
• CONTACT,ELEC:BNC TO CRT BOARD 80009 131-1135-00
-149
441-1017-00
1
.
CHASSIS,OSCP:ATTEN SWITCH
80009 441-1017-00
-150 220-0455-00
1
.
NUT,BLOCK:0.281"SQ,THREE 4-40 THRU THDS
80009 220-0455-00
(ATTACHING PARTS)
-151
211-0007-00
1
.
SCREW,MACHINE:4-40 X 0.188 INCH.PNH STL
83385 OBD
-152 211-0116-00
1
•
SCR,ASSEM WSHR:4-40 X 0.312 INCH,PNH BRS
83385
OBD
-153
_ _ _ _ __ _ _
L
1
CKT BOARD ASSY: LIGHT BLOCK (SEE A1,A2 EPL)
-154 352-0300-00
1
•
. LAMPHOLDER:VOLTS/DIV DIAL
198-2771-00
1
. . WIRE SET,ELEC:LIGHT BLOCK BOARD
80009
198-2771-00
-155
131-0621-00
2
.
. . CONTACT,ELEC:0.577"L,22-26 AWG WIRE 22526
75694-006
-156 131-0707-00
12
• . . CONNECTOR,TERM. :0.48" L,22-26AWG WIRE
22526 75691-005
-157
352-0164-00
2
• . . CONN BODY,PL,EL:6 WIRE BLACK
80009
352-0164-00
-158 175-0829-00
FT
. . . WIRE,ELECTRICAL:6 WIRE RIBBON
08261
SS-0626-71061OC
(ATTACHING PARTS FOR CKT BD)
-159 210-0405-00
2
•
NUT,PLAIN,HEX.:2-56 X 0.188 INCH,BRS
73743
2X12157-402
-160
1
CKT BOARD ASSY:HI Z ATTENDEE A3, A4 EPL)
-161 129-0259-00
2
.
. POST,ELEC-MECH:4-40 X 0.187 OD X 0.39" LG 80009
129-0259-00
-162 131-0608-00
22
•
. TERMINAL,PIN:0.365 L X 0.25 PH.BRZ GOLD PL
22526 47357
-163 131-1003-00
2
. CONNECTOR BODY,:CKT CD MT,3 PRONG 80009
131-1003-00
-164
136-0252-01
12
• . CONTACT,ELEC:0.178 INCH LONG 00779 1-332095-2
136-0252-04
53
.
. SOCKET,PIN TERM:0.188 INCH LONG
22526
75060
-165 131-1031-00
8
•
. CONTACT ASSY,EL:CAM SWITCH,TOP 80009
131-1031-00
-166 131-1030-00
8
.
. CONT ASSY,ELEC:CAM SW,BOTTOM
80009 131-1030-00
(ATTACHING PARTS)
210-0779-00
8
•
. RIVET,TUBULAR:0.051 OD X 0.115 INCH LONG
42838
RA-29952715
-167 131-1134-00
9
.
. CONTACT,ELEC:CKT CARD TO SHIELD 80009 131-1134-00
-168
407-0803-00
1
. . BRACKET,CMPNT:
80009
407-0803-00
351-0180-00 B020000
1
. . SLIDE,GUIDE:SWITCH ACTUATOR 80009
351-0180-00
337-1477-00 B020000
1
. . SHLD,ELECTRICAL:ATTEN TOP
80009
337-1477-00
(ATTACHING PARTS)
211-0007-00
B020000
8
•
. SCREW,MACHINE:4-40 X 0.188 INCH,PNH STL 83385
OBD
337-1478-00 B020000 1
. SHLD,ELECTRICAL:ATTEN BOTTOM 80009 337-1478-00
(ATTACHING PARTS)
211-0007-00
B020000
4
•
. SCREW,MACHINE:4-40 X 0.188 INCH.PNH STL 83385 OBD
-169 129-0299-00
2
POST,ELEC-MECH:HEX,0.333 INCH LONG 80009
129-0299-00
(ATTACHING PARTS FOR EACH)
-170 210-1002-00 i
. WASHER,FLAT:0.125 ID X 0.25 INCH OD,BRS
12327
OBD
-171 210-0053-00 i
•
WASHER,LOCK:INTL,0.092 ID X 0.175"OD,STL
83385 OBD
-172 119-0325-00 i
DELAY LINE,ELEC:ATTEN
(ATTACHING PARTS)
-173 213-0113-00
i
.
SCR,TPG,THD FOR:2-32 X 0.312 INCH.PNH STL 83385
OBD
-174 210-1008-00 i
.
WASHER,FLAT:0.09 ID X 0.188" OD.BRS
12360 OBD
-175 210-0054-00 i
•
WASHER,LOCK:SPLIT,0.116 ID X 0.212"OD STL
83385 OBD
-176 210-0774-00
4
EYELET,METALLIC:0.152 OD X 0.245 INCH L.BRS
80009
210-0774-00
-177 210-0775-00 4
.
EYELET,METALLIC:0.126 OD X 0.23 INCH L.BRS 80009
210-0775-00
-178
361-0425-01
2
•
SPACER,BAR:CKT BOARD STIFFENER 80009 361-0425-01
(ATTACHING PARTS)
-179 213-0277-00
2
. SCR,TPG,THD FOR:2-56 X 0.312 INCH.PNH STL
83385
OBD
-180 210-0053-00
2
WASHER,LOCK:INTL,0.092 ID X 0.175"OD,STL
83385
OBD
-181 210-1008-00
2
•
WASHER,FLAT:0.09 ID X 0.188" OD.BRS 12360 OBD
-182
214-1575-00 1
ACTUATOR,SL SW:DUAL SPDT,CKT BD MTG 80009
214-1575-00
-183 351-0180-00
B010100 B019999
1
.
SLIDE,GUIDE:SWITCH ACTUATOR 80009 351-0180-00
-184 214-1190-00 1
•
EXTENDER,RET RAC: 80009 214-1190-00
^A2 replaces A1 in 485-2 only.
2A4 replaces A3 in 485-2 only.
REV. H A PRI L 1978
9-7
