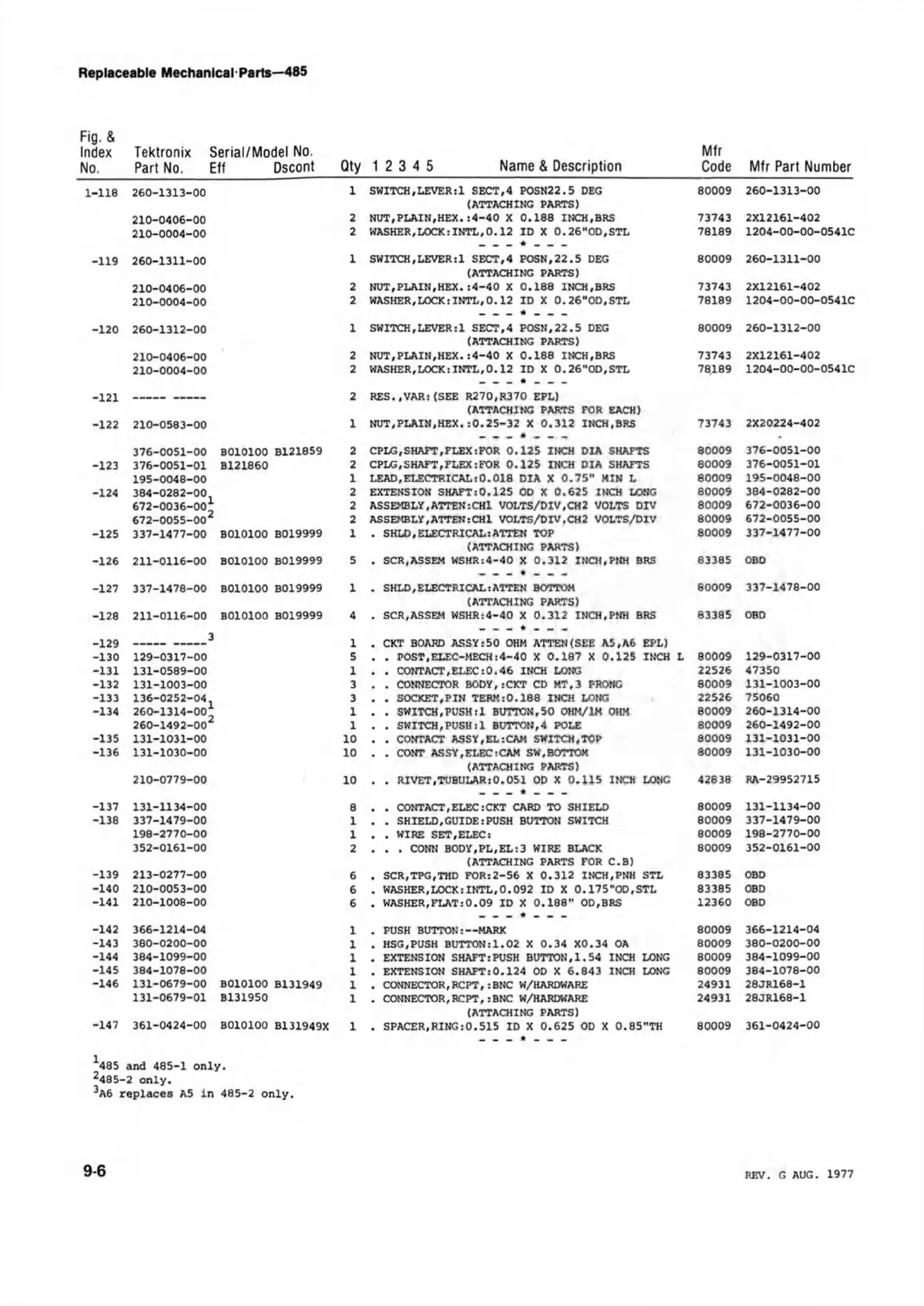

Replaceable Mechanical Parts—485
Fig. &
Index Tektronix Serial/Model No. Mfr
No. Part No. Eft
Dscont
Qty
1 2 3 4 5 Name & Description
Code Mfr Part Number
1-118 260-1313-00
1
SWITCH,LEVER:1 SECT,4 POSN22.5 DEG
80009 260-1313-00
(ATTACHING PARTS)
210-0406-00
2 NUT,PLAIN,HEX.:4-40 X 0.188 INCH.BRS 73743 2X12161-402
210-0004-00
2 WASHER,LOCK:INTL,0.12 ID X 0.26M0D,STL
78189 1204-00-00-0541C
-119 260-1311-00
1 SWITCH,LEVER:1 SECT,4 POSN,22.5 DEG 80009 260-1311-00
(ATTACHING PARTS)
210-0406-00
2 NUT,PLAIN,HEX.:4-40 X 0.188 INCH,BRS 73743
2X12161-402
210-0004-00
2 WASHER,LOCK:INTL,0.12 ID X 0.26"OD,STL 78189 1204-00-00-0541C
-120 260-1312-00
1
SWITCH,LEVER:1 SECT,4 POSN,22.5 DEG
80009
260-1312-00
(ATTACHING PARTS)
210-0406-00
2 NUT,PLAIN,HEX.:4-40 X 0.188 INCH.BRS 73743
2X12161-402
210-0004-00
2
WASHER,LOCK:INTL,0.12 ID X 0.26"OD,STL
78189
1204-00-00-0541C
-121
_____ _____
2 RES.,VAR: (SEE R270.R370 EPL)
(ATTACHING PARTS FOR EACH)
-122
210-0583-00
1
NUT,PLAIN,HEX.:0.25-32 X 0.312 INCH.BRS 73743
2X20224-402
376-0051-00
B010100
B121859 2 CPLG,SHAFT,FLEX:FOR 0.125 INCH DIA SHAFTS
80009 376-0051-00
-123 376-0051-01 B121860
2
CPLG,SHAFT,FLEX:FOR 0.125 INCH DIA SHAFTS 80009 376-0051-01
195-0048-00
1
LEAD,ELECTRICAL:0.018 DIA X 0.75” MIN L
80009
195-0048-00
-124 384-0282-00
2
EXTENSION SHAFT:0.12S OD X 0.625 INCH LONG 80009
384-0282-00
672-0036-00*
2
ASSEMBLY,ATTEN:CH1 VOLTS/DIV.CH2 VOLTS DIV 80009
672-0036-00
672-0055-00*
2
ASSEMBLY,ATTEN:CH1 VOLTS/DIV,CH2 VOLTS/DIV 80009
672-0055-00
-125
337-1477-00
B010100
B019999
1
. SHLD,ELECTRICAL:ATTEN TOP
80009
337-1477-00
(ATTACHING PARTS)
-126
211-0116-00
B010100
B019999
5
. SCR.ASSEM WSHR:4-40 X 0.312 INCH.PNH BRS
83385
OBD
-127 337-1478-00 B010100
B019999
1
. SHLD,ELECTRICALtATTEN BOTTOM 80009
337-1478-00
(ATTACHING PARTS)
-128
211-0116-00
B010100
B019999 4 . SCR.ASSEM WSHR:4-40 X 0.312 INCH.PNH BRS
83385
OBD
-129
__________ 3
1
. CKT BOARD ASSY:50 OHM ATTENDEE A5,A6 EPL)
-130 129-0317-00
5 . . POST,ELEC-MECH:4-40 X 0.187 X 0.125 INCH L
80009
129-0317-00
-131 131-0589-00 1
. . CONTACT,ELEC:0.46 INCH LONG
22526 47350
-132
131-1003-00 3
. . CONNECTOR BODY, :CKT CD MT,3 PRONG
80009
131-1003-00
-133 136-0252-04 3
. . SOCKET,PIN TERM:0.186 INCH LONG
22526 75060
-134 260-1314-00* 1
. . SWITCH,PUSH:1 BUTTON,50 OHM/1M OHM
80009
260-1314-00
260-1492-002 1 . . SWITCH,PUSH:1 BUTTON,4 POLE
80009 260-1492-00
-135 131-1031-00 10 . . CONTACT ASSY,EL:CAM SWITCH,TOP
80009
131-1031-00
-136 131-1030-00 10 . . CONT ASSY,ELEC:CAM SW,BOTTOM
80009
131-1030-00
(ATTACHING PARTS)
210-0779-00
10
. . RIVET,TUBULAR:0.051 OD X 0.115 INCH LONG
42838 RA-29952715
-137 131-1134-00
8 . . CONTACT,ELEC:CKT CARD TO SHIELD
80009
131-1134-00
-138
337-1479-00
1
. . SHIELD,GUIDE:PUSH BUTTON SWITCH
80009
337-1479-00
198-2770-00
1
. . WIRE SET,ELEC:
80009
198-2770-00
352-0161-00
2 . . . CONN BODY,PL,EL:3 WIRE BLACK
80009
352-0161-00
(ATTACHING PARTS FOR C.B)
-139 213-0277-00
6
. SCR,TPG,THD FOR:2-56 X 0.312 INCH.PNH STL
83385
OBD
-140 210-0053-00
6
. WASHER,LOCK:INTL,0.092 ID X 0.175"OD,STL
83385
OBD
-141
210-1008-00
6
. WASHER,FLAT:0.09 ID X 0.188" OD.BRS
12360
OBD
-142 366-1214-04
1
. PUSH BUTTON:— MARK 80009
366-1214-04
-143 380-0200-00
1
. HSG.PUSH BUTTON:1.02 X 0.34 X0.34 OA
80009
380-0200-00
-144 384-1099-00
1
. EXTENSION SHAFT:PUSH BUTTON,1.54 INCH LONG
80009
384-1099-00
-145 384-1078-00
1
. EXTENSION SHAFT:0.124 OD X 6.843 INCH LONG
80009
384-1078-00
-146 131-0679-00 B010100
B131949 1 . CONNECTOR,RCPT, :BNC W/HARDWARE
24931
28JR168-1
131-0679-01 B131950
1
. CONNECTOR,RCPT, :BNC W/HARDWARE
24931
28JR168-1
(ATTACHING PARTS)
-147
361-0424-00
B010100
B131949X 1
. SPACER,RING:0.515 ID X 0.625 OD X 0.85"TH 80009
361-0424-00
*485 and 485-1 only.
2485-2 only.
*A6 replaces A5 in 485-2 only.
