Tektronix 485

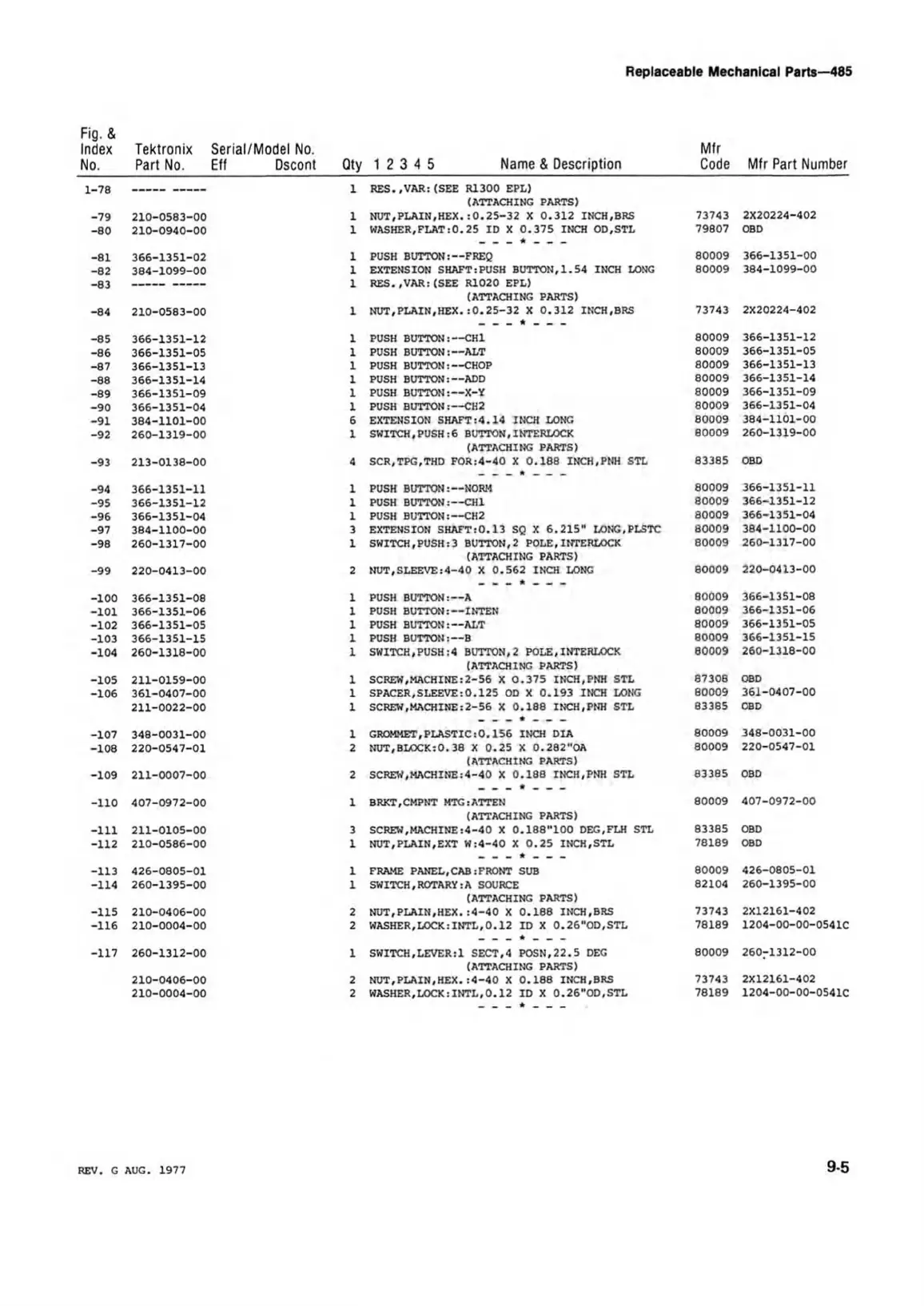

Replaceable Mechanical Parts—485
Fig. &
Index
No.
Tektronix Serial/Model No.
Part No. Eff Dscont
Qty 1 2 3 4 5 Name & Description
Mfr
Code Mfr Part Number
1-78
1
RES.,VAR: (SEE R1300 EPL)
(ATTACHING PARTS)
-79 210-0583-00
1
NUT,PLAIN,HEX.:0.25-32 X 0.312 INCH.BRS 73743
2X20224-402
-80
210-0940-00
1
WASHER.FLAT:0.25 ID X 0.375 INCH OD.STL
79807
OBD
-81
366-1351-02
1
PUSH BUTTON:— FREQ
80009 366-1351-00
-82
384-1099-00
1
EXTENSION SHAFT:PUSH BUTTON,1.54 INCH LONG
80009
384-1099-00
-83
1
RES.,VAR: (SEE R1020 EPL)
(ATTACHING PARTS)
-84 210-0583-00
1
NUT,PLAIN,HEX.:0.25-32 X 0.312 INCH,BRS 73743 2X20224-402
-85 366-1351-12
1
PUSH BUTTON:— CHl
80009
366-1351-12
-86 366-1351-05
1
PUSH BUTTON:— ALT
80009
366-1351-05
-87 366-1351-13
1
PUSH BUTTON:— CHOP
80009
366-1351-13
-88 366-1351-14
1
PUSH BUTTON:— ADD
80009 366-1351-14
-89
366-1351-09
1
PUSH BUTTON:— X-Y
80009 366-1351-09
-90
366-1351-04
1
PUSH BUTTON:— CH2
80009 366-1351-04
-91
384-1101-00
6
EXTENSION SHAFT:4.14 INCH LONG
80009 384-1101-00
-92 260-1319-00
1
SWITCH,PUSH:6 BUTTON,INTERLOCK
80009 260-1319-00
(ATTACHING PARTS)
-93
213-0138-00
4
SCR,TPG,THD FOR:4-40 X 0.188 INCH,PNH STL
83385
OBD
-94
366-1351-11
1
PUSH BUTTON:— NORM
80009
366-1351-11
-95 366-1351-12
1
PUSH BUTTON:— CHI
80009
366-1351-12
-96
366-1351-04
1 PUSH BUTTON:— CH2
80009 366-1351-04
-97
384-1100-00
3
EXTENSION SHAFT:0.13 SQ X 6.215" LONG.PLSTC
80009
384-1100-00
-98
260-1317-00 1
SWITCH,PUSH:3 BUTTON,2 POLE,INTERLOCK
80009 260-1317-00
(ATTACHING PARTS)
-99 220-0413-00
2
NUT,SLEEVE:4-40 X 0.562 INCH LONG
80009
220-0413-00
-100
366-1351-08
1
PUSH BUTTON:— A
80009
366-1351-08
-101
366-1351-06 1
PUSH BUTTON:— INTEN
80009
366-1351-06
-102
366-1351-05 1
PUSH BUTTON:— ALT
80009
366-1351-05
-103 366-1351-15
1
PUSH BUTTON:— B
80009
366-1351-15
-104
260-1318-00
1
SWITCH,PUSH:4 BUTTON,2 POLE,INTERLOCK
80009
260-1318-00
(ATTACHING PARTS)
-105
211-0159-00 1
SCREW,MACHINE:2-56 X 0.375 INCH,PNH STL
87308 OBD
-106 361-0407-00
1
SPACER,SLEEVE:0.125 OD X 0.193 INCH LONG
80009 361-0407-00
211-0022-00 1
SCREW,MACHINE:2-56 X 0.188 INCH.PNH STL
83385 OBD
-107
348-0031-00
1
GROMMET,PLASTIC:0.156 INCH DIA
80009 348-0031-00
-108 220-0547-01
2
NUT,BLOCK:0.38 X 0.25 X 0.282"OA
80009 220-0547-01
(ATTACHING PARTS)
-109
211-0007-00
2 SCREW,MACHINE:4-40 X 0.188 INCH.PNH STL
83385 OBD
-110
407-0972-00 1
BRKT,CMPNT MTG:ATTEN
80009
407-0972-00
(ATTACHING PARTS)
-111
211-0105-00
3
SCREW,MACHINE:4-40 X 0.188"100 DEG.FLH STL
83385 OBD
-112 210-0586-00
1 NUT,PLAIN,EXT W:4-40 X 0.25 INCH,STL
78189 OBD
-113 426-0805-01
1
FRAME PANEL,CAB:FRONT SUB
80009
426-0805-01
-114 260-1395-00 1 SWITCH,ROTARY:A SOURCE
82104
260-1395-00
(ATTACHING PARTS)
-115
210-0406-00
2
NUT,PLAIN,HEX.:4-40 X 0.188 INCH.BRS
73743
2X12161-402
-116
210-0004-00
2
WASHER,LOCK:INTL,0.12 ID X 0.26"OD,STL
78189
1204-00-00-0541C
-117 260-1312-00
1
SWITCH,LEVER:1 SECT,4 POSN.22.5 DEG
80009
260-1312-00
(ATTACHING PARTS)
210-0406-00
2
NUT,PLAIN,HEX.:4-40 X 0.188 INCH.BRS
73743
2X12161-402
210-0004-00 2
WASHER,LOCK:INTL,0.12 ID X 0.26"OD,STL
78189
1204-00-00-0541C
REV. G AUG
1977
9-5
