Tektronix 485

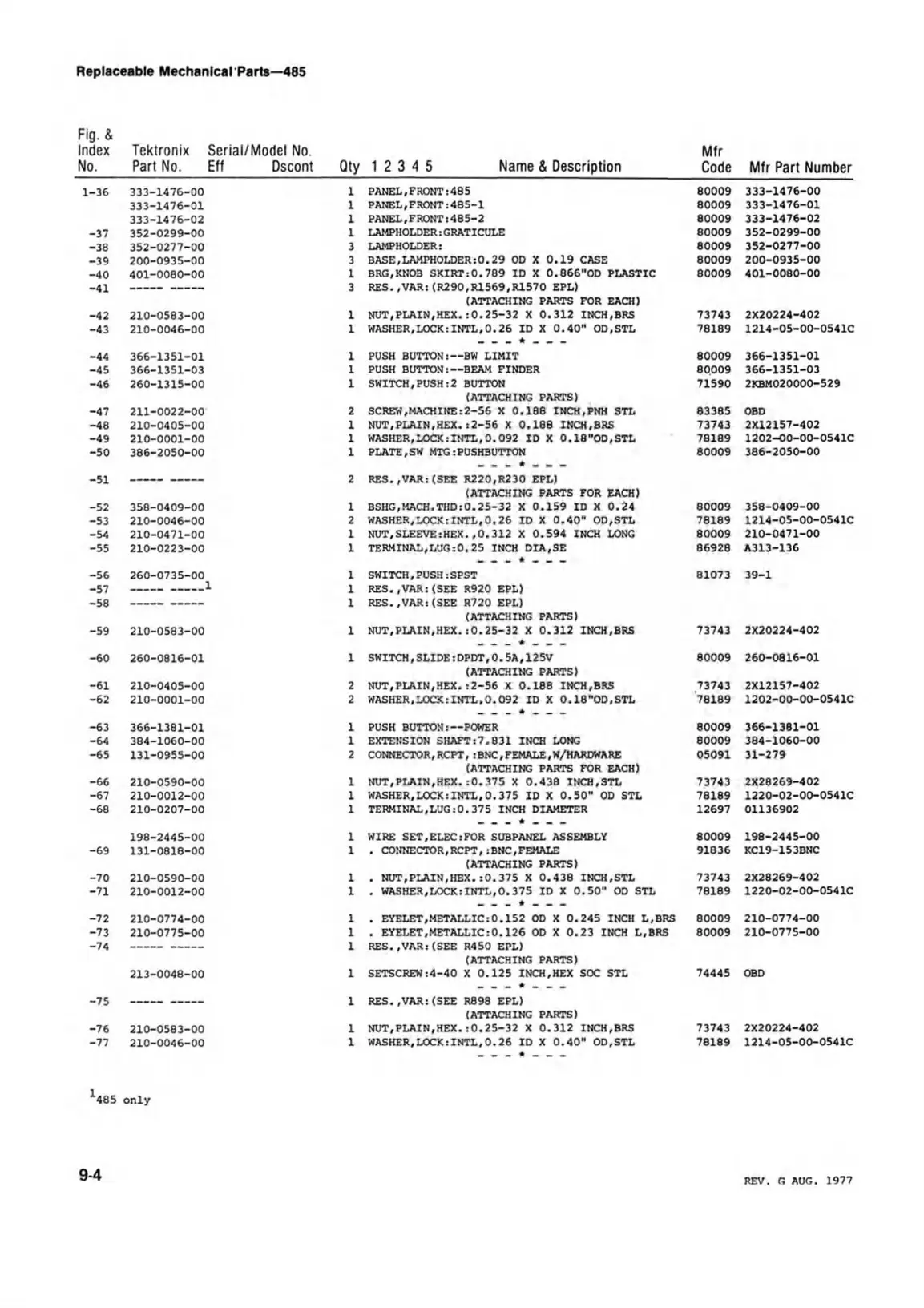

Replaceable Mechanlcal Parts—485
Fig. &
Index Tektronix Serial/Model No. Mfr
No. Part No. Eft Dscont Qty 1 2 3 4 5 Name & Description Code Mfr Part Number
1-36
333-1476-00 1
PANEL,FRONT:485
80009
333-1476-00
333-1476-01
1
PANEL,FRONT:485-l
80009
333-1476-01
333-1476-02
1
PANEL,FRONT:485-2 80009 333-1476-02
-37
352-0299-00 1
LAMPHOLDER:GRATICULE
80009 352-0299-00
-38 352-0277-00
3
LAMPHOLDER:
80009
352-0277-00
-39
200-0935-00
3
BASE,LAMPHOLDER:0.29 OD X 0.19 CASE
80009
200-0935-00
-40
401-0080-00
1
BRG,KNOB SKIRT:0.789 ID X 0.866"OD PLASTIC
80009 401-0080-00
-41
3
RES. ,VAR: (R290,R1569,R1570 EPL)
(ATTACHING PARTS FOR EACH)
-42 210-0583-00
1
NUT,PLAIN,HEX.:0.25-32 X 0.312 INCH.BRS
73743
2X20224-402
-43 210-0046-00
1
WASHER,LOCK:INTL,0.26 ID X 0.40" OD,STL
78189
1214-05-00-0541C
-44
366-1351-01
1
PUSH BUTTON:— BW LIMIT
80009
366-1351-01
-45 366-1351-03
1
PUSH BUTTON:— BEAM FINDER
80009 366-1351-03
-46
260-1315-00
1
SWITCH,PUSH:2 BUTTON
71590
2KBM020000—529
(ATTACHING PARTS)
-47 211-0022-00
2
SCREW,MACHINE:2-56 X 0.188 INCH,PNH STL
83385 OBD
-48
210-0405-00
1
NUT,PLAIN,HEX.:2-56 X 0.188 INCH,BRS 73743
2X12157-402
-49 210-0001-00
1
WASHER,LOCK:INTL,0.092 ID X 0.18"OD,STL 78189
1202-00-00-0541C
-50 386-2050-00
1
PLATE,SW MTG:PUSHBUTTON 80009
386-2050-00
-51
.. --- r _ ___
2
RES.,VAR:(SEE R220.R230 EPL)
(ATTACHING PARTS FOR EACH)
-52
358-0409-00
1
BSHG,MACH.THD:0.25-32 X 0.159 ID X 0.24 80009
358-0409-00
-53 210-0046-00
2 WASHER,LOCK: INTL,0.26 ID X 0.40" OD,STL 78189
1214-05-00-0541C
-54 210-0471-00
1
NUT,SLEEVE:HEX.,0.312 X 0.594 INCH LONG
80009
210-0471-00
-55 210-0223-00
1
TERMINAL,LUG:0.25 INCH DIA,SE
86928 A313-136
-56
260-0735-00
1
SWITCH,PUSH:SPST 81073 39-1
-57
1
1
RES.,VAR: (SEE R920 EPL)
-58
—
1
RES.,VAR: (SEE R720 EPL)
(ATTACHING PARTS)
-59
210-0583-00 1
NUT,PLAIN,HEX.:0.25-32 X 0.312 INCH.BRS 73743
2X20224-402
-60 260-0816-01
1
SWITCH.SLIDE:DPDT,0.5A,12 5V 80009 260-0816-01
(ATTACHING PARTS)
-61
210-0405-00
2 NUT,PLAIN,HEX.:2-56 X 0.188 INCH.BRS 73743
2X12157-402
-62
210-0001-00
2 WASHER,LOCK:INTL,0.092 ID X 0.18"OD,STL 78189
1202-00-00—0541C
-63
366-1381-01
1
PUSH BUTTON:— POWER 80009 366-1381-01
-64
384-1060-00
1 EXTENSION SHAFT:7.831 INCH LONG
80009 384-1060-00
-65 131-0955-00
2 CONNECTOR,RCPT, :BNC,FEMALE,W/HARDWARE 05091 31-279
(ATTACHING PARTS FOR EACH)
-66
210-0590-00
1 NUT,PLAIN,HEX.:0.375 X 0.438 INCH,STL 73743
2X28269-402
-67
210-0012-00
1 WASHER,LOCK:INTL,0.375 ID X 0.50" OD STL
78189 1220-02-00-0541C
-68 210-0207-00 1 TERMINAL,LUG:0.375 INCH DIAMETER 12697 01136902
198-2445-00 1
WIRE SET,ELEC:FOR SUBPANEL ASSEMBLY
80009
198-2445-00
-69
131-0818-00
1
. CONNECTOR,RCPT,:BNC,FEMALE
91836 KC19-153BNC
(ATTACHING PARTS)
-70 210-0590-00
1 . NUT,PLAIN,HEX.:0.375 X 0.438 INCH,STL
73743
2X28269-402
-71
210-0012-00
1
. WASHER,LOCK:INTL,0.375 ID X 0.50" OD STL 78189 1220-02-00-0541C
-72
210-0774-00
1
. EYELET,METALLIC:0.152 OD X 0.245 INCH L,BRS
80009
210-0774-00
-73 210-0775-00
1
. EYELET,METALLIC:0.126 OD X 0.23 INCH L.BRS 80009 210-0775-00
-74
—
1
RES. ,VAR: (SEE R450 EPL)
(ATTACHING PARTS)
213-0048-00
1
SETSCREW:4-40 X 0.125 INCH,HEX SOC STL 74445 OBD
-75
i— [— t—a . ,
1
RES. ,VAR: (SEE R898 EPL)
(ATTACHING PARTS)
-76 210-0583-00
1
NUT,PLAIN,HEX.:0.25-32 X 0.312 INCH.BRS 73743
2X20224-402
-77
210-0046-00
1
WASHER,LOCK:INTL,0.26 ID X 0.40" OD.STL
78189
1214-05-00-0541C
^485 only
9-4
REV. 0 AUG. 1977
