Tektronix 485

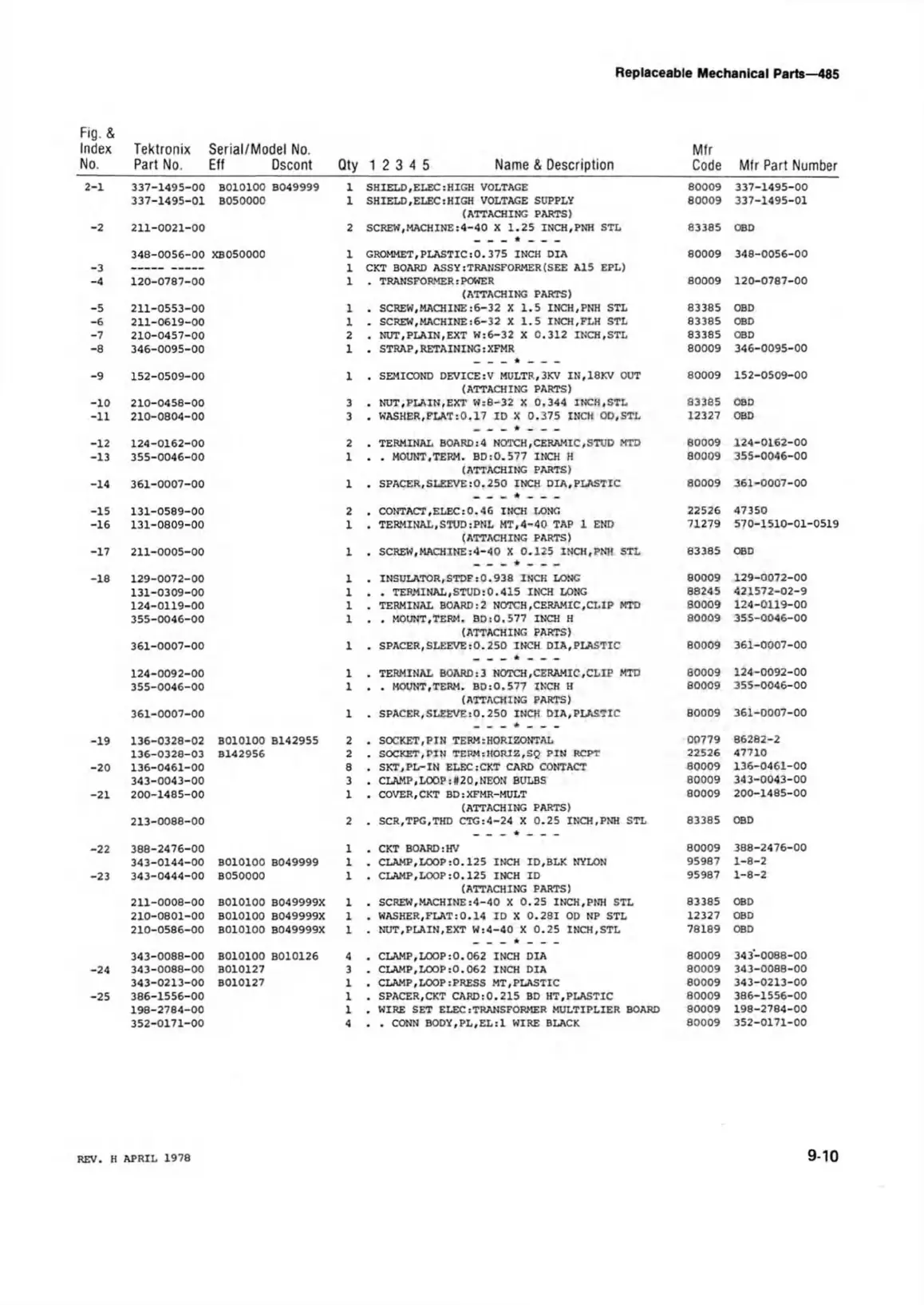

Replaceable Mechanical Parts—485
Fig. &
Index
No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont
Qty i 2 3 4 5 Name & Description
Mfr
Code
2-1
337-1495-00
B010100 B049999
l
SHIELD,ELEC:HIGH VOLTAGE 80009
337-1495-01
B050000
l
SHIELD,ELEC:HIGH VOLTAGE SUPPLY 80009
(ATTACHING PARTS)
-2
211-0021-00
2 SCREW,MACHINE:4-40 X 1.25 INCH,PNH STL 83385
348-0056-00
XB050000 1
GROMMET,PLASTIC:0.375 INCH DIA 80009
-3
1
CKT BOARD ASSY :TRANSFORMER (SEE A15 EPL)
-4
120-0787-00
1
.
TRANSFORMER:POWER 80009
(ATTACHING PARTS)
-5
211-0553-00 1
.
SCREW,MACHINE:6-32 X 1.5 INCH.PNH STL 83385
-6
211-0619-00 1
.
SCREW,MACHINE:6-32 X 1.5 INCH,FLH STL 83385
-7
210-0457-00
2
,
NOT,PLAIN,EXT W:6-32 X 0.312 INCH,STL 83385
-8
346-0095-00 1
•
STRAP, RETAINING: XFMR 80009
-9
152-0509-00 1
SEMICOND DEVICE :V MULTR, 3KV IN.18KV OUT
80009
(ATTACHING PARTS)
-10 210-0458-00 3
.
NUT,PLAIN,EXT W:8-32 X 0.344 INCH,STL
83385
-11 210-0804-00 3
•
WASHER,FLAT:0.17 ID X 0.375 INCH OD,STL
12327
-12 124-0162-00
2
TERMINAL BOARD:4 NOTCH,CERAMIC,STUD MTD 80009
-13
355-0046-00 i
.
. MOUNT,TERM. BD:0.577 INCH H
80009
(ATTACHING PARTS)
-14 361-0007-00 i
•
SPACER,SLEEVE:0.250 INCH DIA,PLASTIC
80009
-15 131-0589-00 2
CONTACT,ELEC:0.46 INCH LONG 22526
-16
131-0809-00
1
•
TERMINAL,STUD:PNL MT.4-40 TAP 1 END
71279
(ATTACHING PARTS)
-17
211-0005-00 1
•
SCREW,MACHINE:4-40 X 0.125 INCH.PNH STL
83385
-18 129-0072-00 1
INSULATOR,STDF:0.938 INCH LONG
80009
131-0309-00 1
.
. TERMINAL,STUD:0.415 INCH LONG
88245
124-0119-00 1
.
TERMINAL BOARD:2 NOTCH,CERAMIC,CLIP MTD
80009
355-0046-00 1
.
. MOUNT,TERM. BD:0.577 INCH H
80009
(ATTACHING PARTS)
361-0007-00 1
•
SPACER,SLEEVE:0.250 INCH DIA,PLASTIC
80009
124-0092-00 1
TERMINAL BOARD:3 NOTCH,CERAMIC,CLIP MTD
80009
355-0046-00 1
#
. MOUNT,TERM. BD:0.577 INCH H
80009
(ATTACHING PARTS)
361-0007-00 1
•
SPACER,SLEEVE:0.250 INCH DIA,PLASTIC
80009
-19
136-0328-02 B010100 B1429S5 2
SOCKET,PIN TERM:HORIZONTAL 00779
136-0328-03 B142956
2
. SOCKET,PIN TERM:HORIZ,SQ PIN RCPT
22526
-20
136-0461-00 8
. SKT,PL-IN ELEC:CKT CARD CONTACT 80009
343-0043-00
3
.
CLAMP,LOOP:#20,NEON BULBS
80009
-21 200-1485-00 1
.
COVER,CKT B D:XFMR-MULT
80009
(ATTACHING PARTS)
213-0088-00 2
•
SCR,TPG,THD CTG:4-24 X 0.25 INCH.PNH STL
83385
-22
388-2476-00
1
.
CKT BOARD:HV 80009
343-0144-00 B010100 B049999 1
.
CLAMP,LOOP:0. 125 INCH ID.BLK NYLON
95987
-23
343-0444-00
B050000 1
CLAMP,LOOP:0.125 INCH ID
95987
(ATTACHING PARTS)
211-0008-00
B010100 B049999X 1
.
SCREW,MACHINE:4-40 X 0.25 INCH.PNH STL
83385
210-0801-00
B010100 B049999X 1
•
WASHER,FLAT:0.14 ID X 0.281 OD NP STL
12327
210-0586-00 B010100 B049999X
1
•
NOT,PLAIN,EXT W:4-40 X 0.25 INCH,STL
78189
343-0088-00
B010100 B010126
4 CLAMP,LOOP:0.062 INCH DIA
80009
-24
343-0088-00
B010127
3
.
CLAMP,LOOP:0.062 INCH DIA
80009
343-0213-00
B010127
1
.
CLAMP,LOOP:PRESS MT,PLASTIC
80009
-25
386-1556-00
1
.
SPACER,CKT CARD:0.215 BD HT,PLASTIC
80009
198-2784-00
1
•
WIRE SET ELEC TRANSFORMER MULTIPLIER BOARD 80009
352-0171-00 4 • . CONN BODY,PL,EL:1 WIRE BLACK
80009
REV. H AP RIL 1978
Mfr Part Number
337-1495-00
337-1495-01
OBD
348-0056-00
120-0787-00
OBD
OBD
OBD
346-0095-00
152-0509-00
OBD
OBD
124-0162-00
355-0046-00
361-0007-00
47350
570-1510-01-0519
OBD
129-0072-00
421572-02-9
124-0119-00
355-0046-00
361-0007-00
124-0092-00
355-0046-00
361-0007-00
86282-2
47710
136-0461-00
343-0043-00
200-1485-00
OBD
388-2476-00
1- 8-2
1- 8-2
OBD
OBD
OBD
343-0088-00
343-0088-00
343-0213-00
386-1556-00
198-2784-00
352-0171-00
9-10
