Tektronix 485

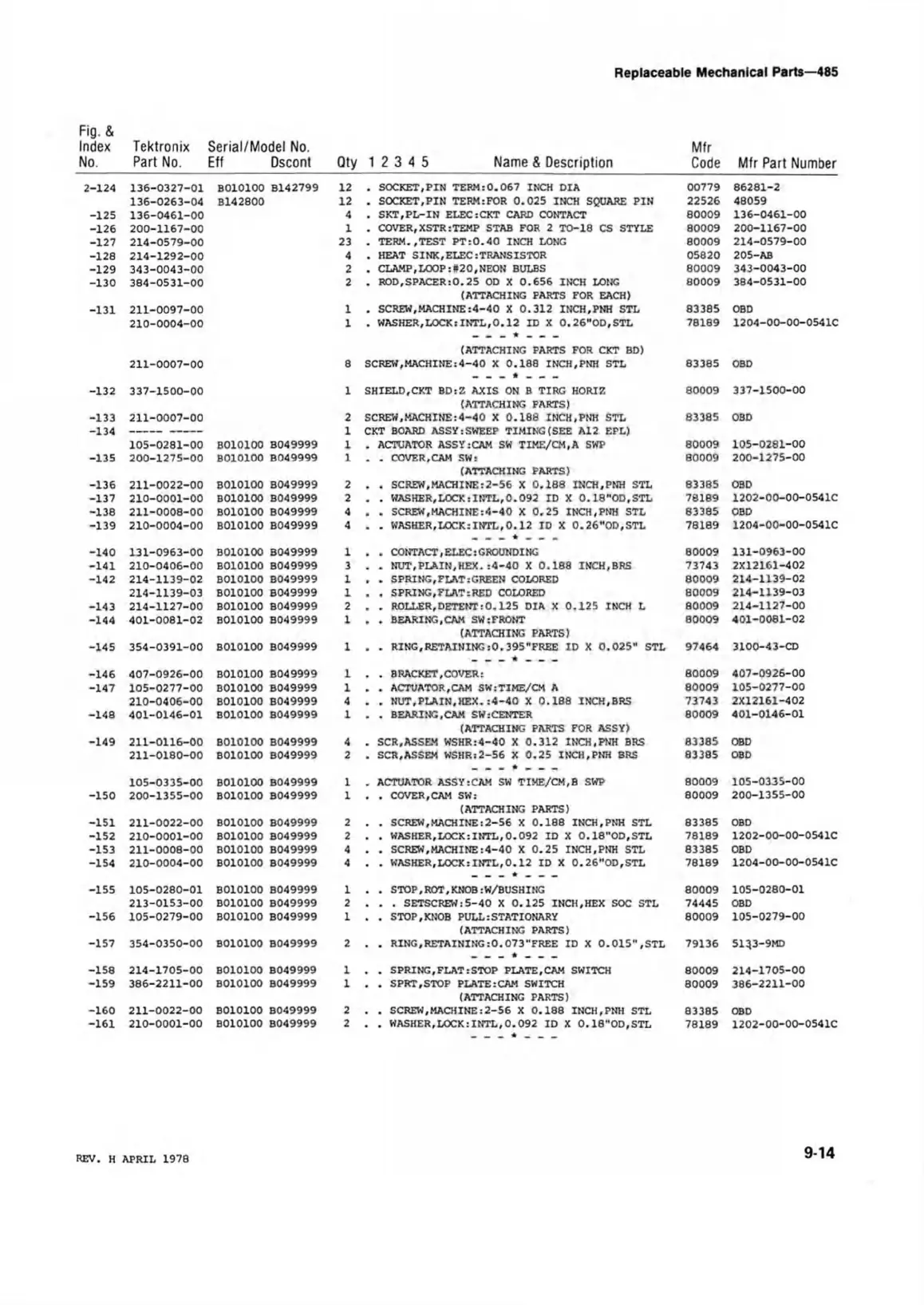

Replaceable Mechanical Parts—485
Fig. &
Index
No.
Tektronix
Part No.
Serial/Model No.
Eff Oscont
Qty 1 2 3 4 5 Name & Description
Mfr
Code
Mfr Part Number
2-124 136-0 327-01
B010100 B142799 12
. SOCKET,PIN TERM:0 .067 INCH DIA 00779
86281-2
13 6-0263-04 B142800
12 . SOCKET,PIN TERM:FOR 0.025 INCH SQUARE PIN
22526 48059
-125
136-0461-00
4
. SKT,PL~IN ELEC:CKT CARD CONTACT
80009 136-0461-00
-1 26
20 0-1167-00
i
. COVER, XSTR: TEMP STAB FOR 2 TO-18 CS STYLE
80009 200-1167-00
-127 2 1 4-05 79-00
23
. TERM..TEST P T :0 .40 INCH LONG
80009 214-0579-00
-128 2 1 4-12 92-00
4
. HEAT SINK,ELEC:TRANSISTOR
05820 205-AB
-1 29 343-0043-00
2
. CLAMP,LOOP:#20,NEON BULBS 80009
343-0043-00
-1 30
38 4-0531-00
2
. ROD,SPACER:0 .2 5 OD X 0.65 6 INCH LONG
80009 384-0531-00
(ATTACHING PARTS FOR EACH)
-131
211-0097-00
1
. SCREW,MACHINE:4-40 X 0.312 INCH.PNH STL
83385
OBD
210-0004-00 1
. WASHER,LOCK:INTL,0 .1 2 ID X 0 .2 6 “ OD,STL 78189 1204-00-00-0541C
(ATTACHING PARTS FOR CKT BD)
211-0007-00
8
SCREW,MACHINE:4-40 X 0.188 INCH,PNH STL
83385
OBD
-132
337-1500-00 1
SHIELD,CKT BD:Z AXIS ON B TIRG HORIZ 80009 337-1500-00
(ATTACHING PARTS)
-133
211-0007-00
2 SCREW,MACHINE:4-40 X 0.1 88 INCH.PNH STL
83385 OBD
-134
—
1
CKT BOARD ASSY:SWEEP TIMING (SEE A12 EPL)
105-0281-00
B010100 B049999
1
.
ACTUATOR ASSY:CAM SW TIME/CM.A SWP 80009
105-0281-00
-1 35 200-12 75-00
B010100
B049999
1
.
. COVER,CAM SW:
80009
200-1275-00
(ATTACHING PARTS)
-1 36 211-0022-00
B010100 B049999 2
.
. SCREW,MACHINE:2 -5 6 X 0.188 INCH.PNH STL 83385 OBD
-137
21 0-0001-00
B010100 B049999
2
•
. WASHER,LOCK:INTL,0 .092 ID X 0.18"OD,STL 78189
1202-00-00-0541C
-1 38
211-0008-00 B010100
B049999 4 . . SCREW,MACHINE:4-40 X 0.2 5 INCH.PNH STL 83385 OBD
-1 39 210-00 04-00 B010100 B049999
4
•
. WASHER,LOCK:INTL,0.12 ID X 0.26"0D,S TL 78189
1204-00-00-0541C
-1 40 131-09 63-00
B010100 B049999 1
.
. CONTACT,ELEC GROUNDING 80009
131-0963-00
-141
21 0-0406-00 B010100 B049999 3
•
. NUT,PLAIN ,H EX.:4-40 X 0.1 88 INCH.BRS 73743
2X12161-402
-142 21 4-1139-02
B010100
B049999
1
.
. SPRING,FLAT:GREEN COLORED
80009
214-1139-02
21 4-1139-03 B010100 B049999 1
.
. SPRING,FLAT:RED COLORED 80009
214-1139-03
-143
214-1127-00 B010100
B049999 2
•
. ROLLER,DETENT:0.125 DIA X 0.12 5 INCH L 80009
214-1127-00
-144
40 1-0081-02
B010100
B049999 1
. BEARING,CAM SW:FRONT 80009
401-0081-02
(ATTACHING PARTS)
-145 354-03 91-00
B010100 B049999 1
*
. RING,RETAINING:0.395"FREE ID X 0.0 2 5 ” STL
— ~ — * — — —
97464 3100-43-CD
-1 46
40 7-09 26-00
B010100
B049999
1
.
. BRACKET,COVER:
80009
407-0926-00
-147
10 5-0277-00 B010100 B049999 1
.
. ACTUATOR,CAM SW:TIME/CM A 80009
105-0277-00
21 0-0406-00
B010100 B049999 4
.
. N U T,P LAIN,H EX.:4-40 X 0.1 88 INCH.BRS 73743
2X12161-402
-148 401-0146-01 B010100 B049999 1
•
. BEARING,CAM SW:CENTER
80009
401-0146-01
(ATTACHING PARTS FOR ASSY)
-149
21 1-01 16-00 B010100
B049999 4
.
SCR.ASSEM WSHR:4-40 X 0.312 INCH.PNH BRS
83385 OBD
21 1-0180-00 B010100
B049999 2
*
SCR,ASSEM WSHR:2—56 X 0.25 INCH.PNH BRS
_ _ _ * _ — _
83385 OBD
10 5-0335-00
B010100 B049999 1
ACTUATOR ASSY:CAM SW TIME/CM.B SWP 80009
105-0335-00
-1 50 200-1355-00 B010100
B049999 1
.
. COVER,CAM SW: 80009
200-1355-00
(ATTACHING PARTS)
-151 21 1-00 22-00 B010100 B049999
2
•
. SCREW,MACHINE:2 —56 X 0.188 INCH.PNH STL 83385 OBD
-152 210-0001-00 B010100
B049999 2
•
. WASHER,LOCK:INTL,0.092 ID X 0.18"O D,STL 78189
1202-00-00-0541C
-153
211-0008-00
B010100
B049999 4
•
. SCREW,MACHINE:4-40 X 0.25 INCH.PNH STL 83385 OBD
-154
21 0-0004-00 B010100
B049999 4
•
. WASHER,LOCK: IN T L .0 .12 ID X 0.26"0D ,S TL 78189
12 0 4-00-00-0541C
-155 105-0280-01
B010100 B049999
1
_ _
. STOP,ROT,KNOB:W/BUSHING
80009
105-0280-01
21 3-01 53-00 B010100 B049999 2
•
. . SETSCREW:5 -4 0 X 0.125 INCH,HEX SOC STL
74445
OBD
-1 56 10 5-0279-00 B010100 B049999 1
.
. STOP,KNOB PULL: STATIONARY 80009
105-0279-00
(ATTACHING PARTS)
-157 354-0350-00 B010100
B049999 2
•
. RING,RETAINING:0 .0 7 3 "FREE ID X 0 .0 1 5 ",STL 79136
51?3-9MD
-158 214-1705-00 B010100
B049999 1 . SPRING,FLAT:STOP PLATE,CAM SWITCH
80009
214-1705-00
-159 386-2211-00
B010100
8049999 1
.
. SPRT,STOP PLATE:CAM SWITCH
80009
386-2211-00
(ATTACHING PARTS)
-160
21 1-0022-00 B010100
B049999 2
.
. SCREW,MACHINE:2-56 X 0.188 INCH.PNH STL
83385
OBD
-161 210-0001-00
B010100 B049999
2
.
. WASHER,LOCK.-INTL,0.0 92 ID X 0.18"OD,STL
78189
1202-00-00-0541C
REV. H APRI L 1978
9-14
