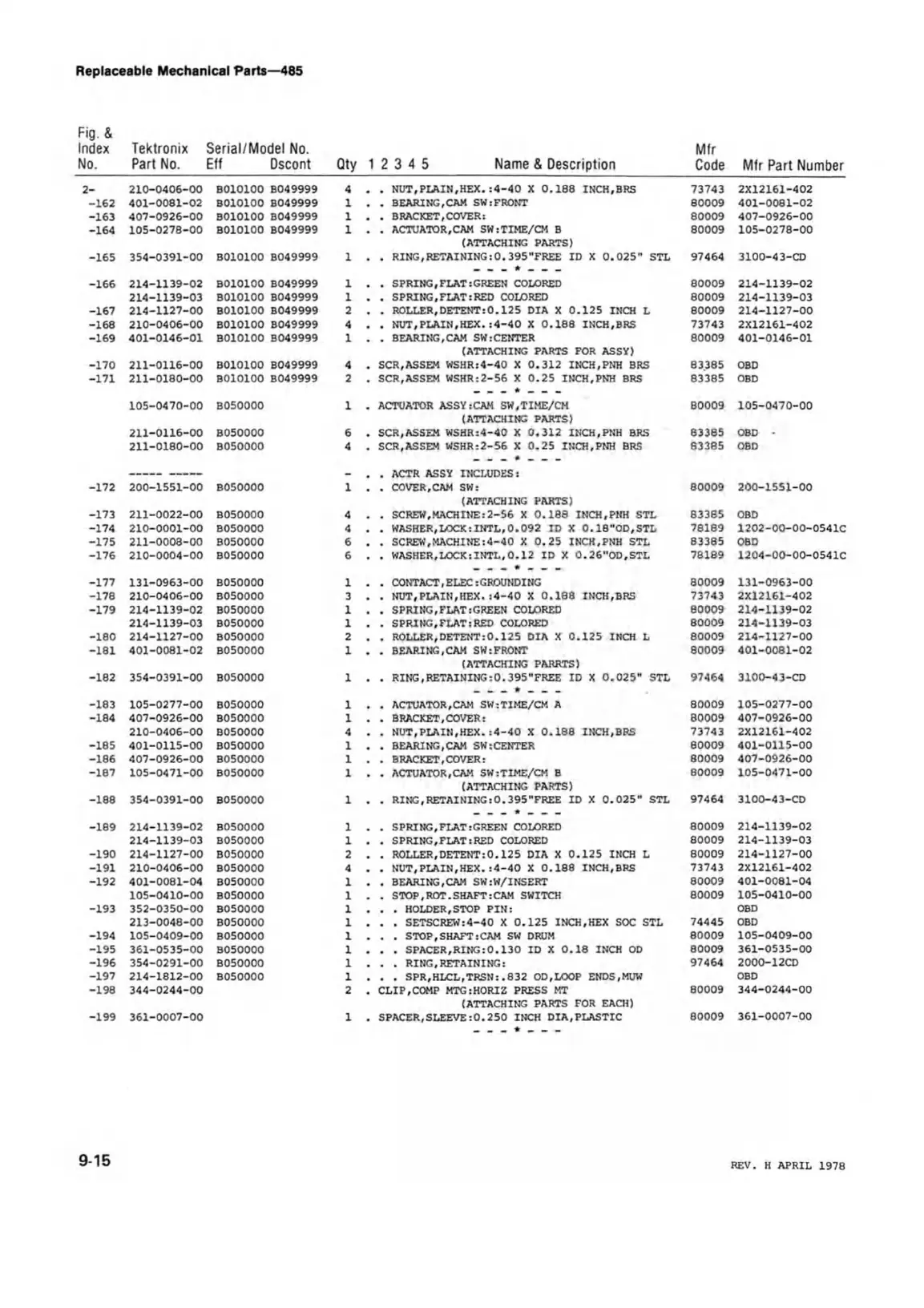

Tektronix 485

Replaceable Mechanical Parts—485
Index Tektronix Serial/Model No. Mfr
Fig. &
No. Part No. Eff
Dscont Qty 1 2 3 4 5 Name & Description
Code Mfr Part Number
2 - 210-0406-00
B010100
B049999 4
#
NU T,PLAIN ,HEX.:4-40 X 0.1 8 8 INCH,BRS
73743
2X12161-402
-162
401-0081-02
B010100
B049999
1
• • BEARING,CAM SW:FRONT
80009 401-0081-02
-163
407-0926-00
B010100
B049999
1
. .
BRACKET,COVER:
80009 4 0 7-09 26-00
-164
105-0278-00
B010100
B049999
1
. a
ACTUATOR, CAM SW:TIME/CM B
80009 105-0278-00
(ATTACHING PARTS)
-165
354-0391-00 B010100 B049999 1
• •
RING,RETAINING:0.3 9 5 "FREE ID X 0 .0 2 5 " STL 97464 3100-43-CD
-166
214-1139-02
B010100
B049999 1
SPRING,FLAT:GREEN COLORED
80009 214-1139-02
214-1139-03 B010100 B049999 1
• •
SPRING,FLAT:RED COLORED
80009
21 4-1139-03
-167
214-1127-00 B010100 B049999
2
• • ROLLER,DETENT:0 .1 2 5 DIA X 0.125 INCH L
80009 214-1127-00
-168
21 0-0406-00 B010100
B049999
4
. . N U T,P LAIN ,HEX.:4-40 X 0.188 INCH,BRS
73743 2X12161-402
-169
40 1-0146-01 B010100
B049999
i
.
BEARING,CAM SW:CENTER
80009 401-0146-01
(ATTACHING PARTS FOR ASSY)
-170
211-0116-00 B010100 B049999
4
•
SCR,ASSEM WSHR:4—40 X 0.3 1 2 INCH.PNH BRS 83.385 OBD
-171 211-0180-00 B010100 B049999 2
•
SCR,ASSEM WSHR:2-56 X 0 .2 5 INCH,PNH BRS
83385 OBD
10 5-0470-00
B050000
1
ACTUATOR ASSY:CAM SW.TIME/CM
80009 105-0470-00
(ATTACHING PARTS)
211-0116-00
B050000 6
•
SCR.ASSEM WSHR:4-40 X 0 .312 INCH.PNH BRS 83385
OBD •
21 1-0180-00 B050000 4
•
SCR,ASSEM WSHR:2-56 X 0 .2 5 INCH,PNH BRS
83385 OBD
_
ACTR ASSY INCLUDES:
-172
20 0-1551-00 B050000
1
.
.
COVER,CAM SW: 80009
200-1551-00
(ATTACHING PARTS)
-173
211-0022-00
B050000
4
. •
SCREW,MACHINE:2-56 X 0.18 8 INCH,PNH STL
83385 OBD
-174 210-0001-00 B050000 4
. .
WASHER,LOCK:INTL,0.092 ID X 0.18"O D ,STL 78189
12 02-00-00-0541C
-175
211-0008-00 B050000 6
• . SCREW,MACHINE:4-40 X 0.25 INCH.PNH STL 83385 OBD
-176
21 0-0004-00
B050000 6
• •
WASHER,LOCK: IN TL ,0.1 2 ID X 0.26"OD,STL 78189
12 04-00-00-0541C
-177 131-0963-00
B050000 1
.
CONTACT, ELEC:GROUNDING 80009
131-0963-00
-178 210-0406-00 B050000
3
. .
NUT,PLAIN ,HEX.:4-40 X 0 .18 8 INCH,BRS 73743
2X12161-402
-179 214-1139-02 B050000 1
. .
SPRING,FLAT:GREEN COLORED 80009 214-11 39-02
214-1139-03 B050000 1
. . SPRING,FLAT:RED COLORED 80009
214-1139-03
-1 80 214-1127-00
B050000
2 .
ROLLER,DETENT:0.125 DIA X 0.125 INCH L 80009 214-1127 -00
-181
401-0081-02
B050000 i
. .
BEARING,CAM SW:FRONT 80009 401-0081-02
(ATTACHING PARRTS)
-182 354-0391-00
B050000
i
•
•
RING, RETAINING:0 .3 9 5 "FREE ID X 0.0 2 5 " STL 97464 3100-43-CD
-183 105-0277-00 B050000
i
ACTUATOR,CAM SW:TIME/CM A
80009 105-027 7-00
-184 40 7-0926-00 B050000
i
. .
BRACKET,COVER:
80009 40 7-0926-00
21 0-0406-00 B050000 4
•
NUT,PLAIN ,HEX.:4-40 X 0.188 INCH,BRS 73743
2X12161-402
-185 401-0115-00
B050000 1
. .
BEARING,CAM SW-.CENTER
80009 40 1-011 5-00
-186
40 7-0926-00 B050000 1
. .
BRACKET,COVER: 80009 407-0926-00
-187
105-0471-00 BOSOOOO
1
•
ACTUATOR, CAM SW:TIM£/CM B 80009 10 5-04 71-00
(ATTACHING PARTS)
-188 354-0391-00 B050000 1
• •
RING, RETAINING:0 .3 9 5 "FREE ID X 0 .0 2 5 " STL
97464
3100-43-CD
-189
214-1139-02 BOSOOOO
1
SPRING,FLAT:GREEN COLORED
80009 214-1139-02
214-1139-03
BOSOOOO
1
. .
SPRING,FLAT:RED COLORED
80009
214-1139-03
-190
21 4-1127-00 BOSOOOO 2
. .
ROLLER,DETENT:0.125 DIA X 0.1 25 INCH L
80009 21 4-1127-00
-191
210-0406-00
B050000
4
.
NUT,PLAIN ,HEX.:4-40 X 0.188 INCH,BRS
73743 2X12161-402
-192 401-0081-04 BOSOOOO
i
• .
BEARING,CAM SW:W/INSERT 80009 4 01-0081-04
10 5-0410-00 BOSOOOO
i
. •
STOP,ROT.SHAFT:CAM SWITCH
80009
10 5-04 10-00
-193
352-0350-00
BOSOOOO i
. .
. HOLDER,STOP PIN:
OBD
213-0048-00
BOSOOOO i
. .
. SETSCREW:4—40 X 0.1 2 5 INCH,HEX SOC STL
74445
OBD
-194 105-0409-00 BOSOOOO
i
.
. STOP,SHAFT:CAM SW DRUM 80009 105-04 09-00
-195 361-0535-00
BOSOOOO i
. .
. SPACER,RING:0.13 0 ID X 0 .18 INCH OD
80009 361-0535-00
-196 354-0291-00 BOSOOOO
i
. .
. RING,RETAINING:
97464 2000-12CD
-197
214-1812-00 BOSOOOO
i
. •
. SPR,HLCL,TRSN:.832 OD,LOOP ENDS.MUW
OBD
-198
344-0244-00
2 CLIP,COMP MTGjHORIZ PRESS MT
80009 344-0244-00
(ATTACHING PARTS FOR EACH)
-199
361-0007-00 i • SPACER,SLEEVE:0 .2 5 0 INCH DIA,PLASTIC
80009 36 1-0007-00
REV. H APRIL 1978
